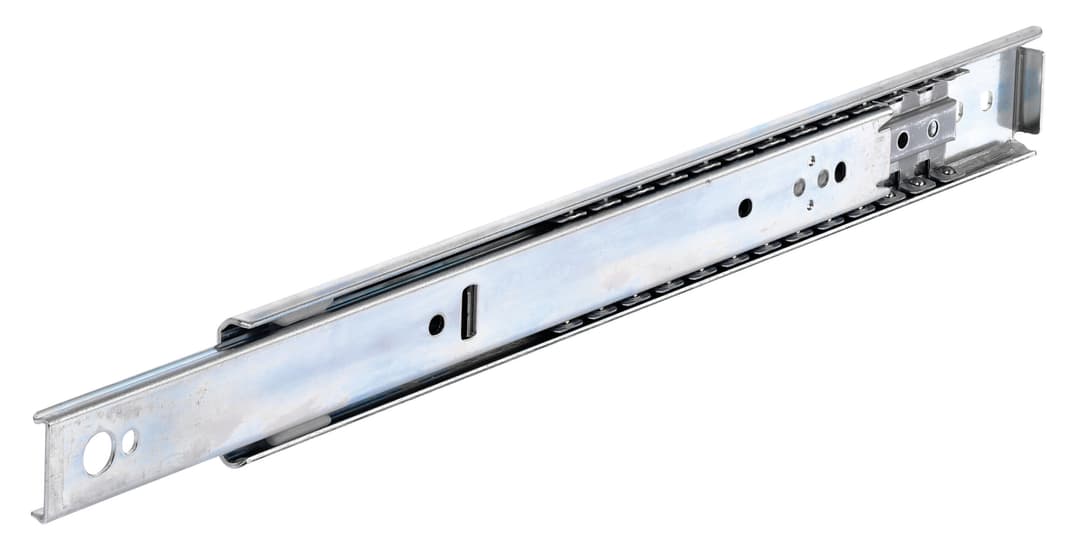

Slide set DZ 0204 slide length 559mm zinc plated
Manufacturer part no. 64900222
$122.73≈ 106.22 €
Price summary
Listed by MÄDLER at €106.22. Delivered to France, including shipping, VAT and any customs duty, it comes to about €145.46. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €106.22 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €24.24 |
| Total delivered | €145.46 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 40 kg |
| Rail length | 559 mm |
| Slide width | 9.5 mm |
| Travel 3 2 | 405 mm |
| Weight pair | 1.14 kg |
| Extended hold | No |
| Extension type | Partial extension |
| Fast disconnect | Yes |
| Locking | Yes |
| Material | Steel |
| Optional mounting brackets | No |
| Retracted hold | No |
| Self closure | No |
| Surface | Zinc-plated (bright) |
| Typ | DZ 0204 |
Description
Material: Slide elements: Cold rolled steel, zinc-plated. Ball retainers: Cold rolled steel, zinc-plated. Balls: Hardened steel. Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Can be mounted on both sides. Bracket mount for electrical cabinets on request. Fast disconnection. Lock-out function. Service life 10,000 cycles. Temperature range: -20°C to +70°C. Note Recommended fastening: M4 screw. Use all mounting positions to achieve the max. load ratings.
