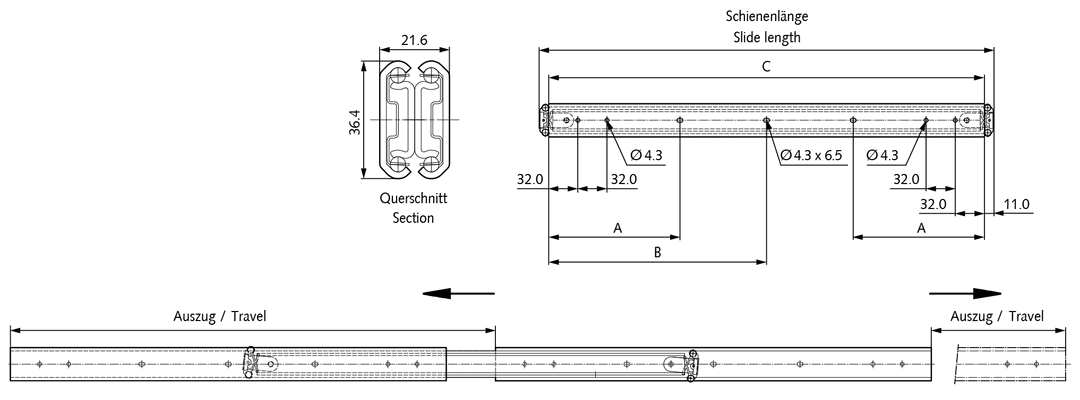

Slide set DZ 3630 Slide length 400mm zinc plated
Manufacturer part no. 64903140
$263.85≈ 229.14 €
Price summary
Listed by MÄDLER at €229.14. Delivered to France, including shipping, VAT and any customs duty, it comes to about €292.97. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €229.14 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €48.83 |
| Total delivered | €292.97 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| A | 144 mm |
| C | 378 mm |
| Extension 3 2 | 432 mm |
| Load value pair | 40 kg |
| Rail length | 400 mm |
| Weight pair | 2.11 kg |
| B | – |
Description
Material: Slide elements: Cold-rolled steel, bright zinc-plated. Ball retainers: Cold-rolled steel, zinc-plated. Balls: Hardened steel. Telescopic ball bearing slides for applications in the industrial and electronics sector. Sold by pair (1 x product no. = 1 pair of slides). • Hold-in in the centre position. • Pulls out to front and back. For applications requiring access from both sides of the drawer. • Service life 80,000 cycles. • Temperature range: -20°C to +70°C. Note: Recommended mounts: M4 screw. Max. head. height 2,5mm/Ø9,6mm. Horizontal mounting not recommended. Use all mounting positions to achieve the max. load rating. Over-extension per direction.
