MÄDLERMÄDLER· Machine Mounts, Rubber-Buffers, Dampers

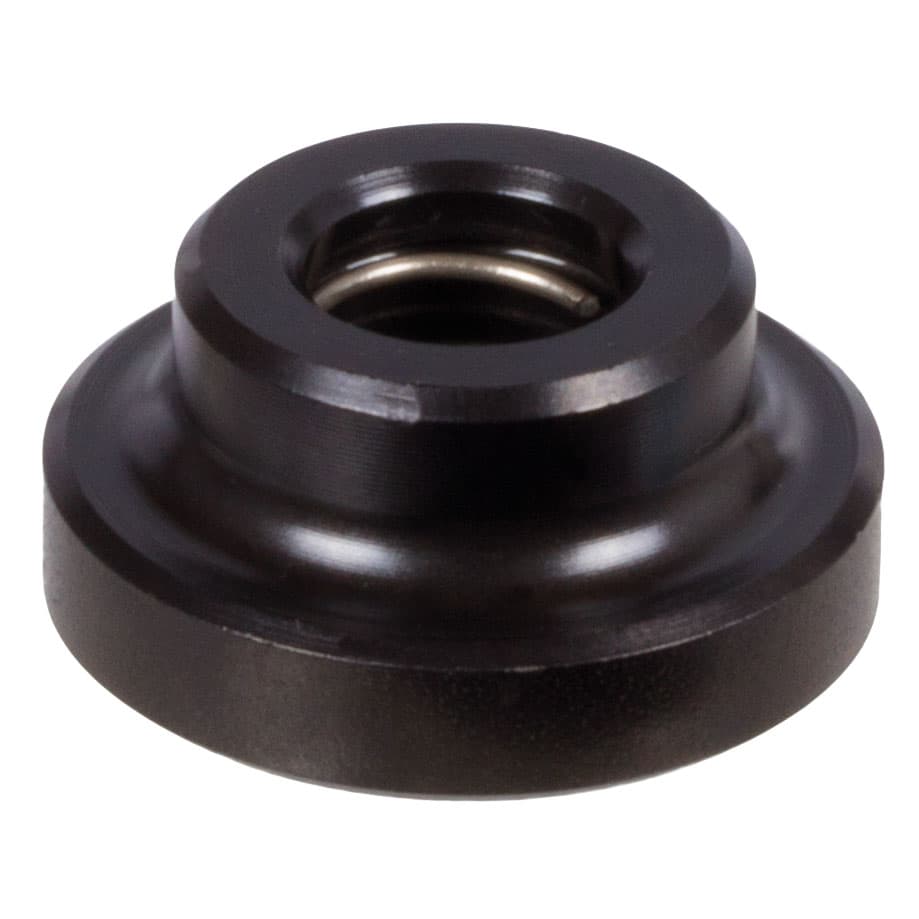

Thrust pad DIN 6311 diameter 40mm with snap ring DIN 9045
Manufacturer part no. 65412000
$7.57≈ 6.57 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €6.57 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.31 |
| Total delivered | €25.88 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 103 g |
Other characteristics
| Height | 16 mm |
| Outer diameter | 40 mm |
| For bolts gub screws | M 20 DIN6332 |
| Material | Steel |
| Surface | Black oxide finish |
Description

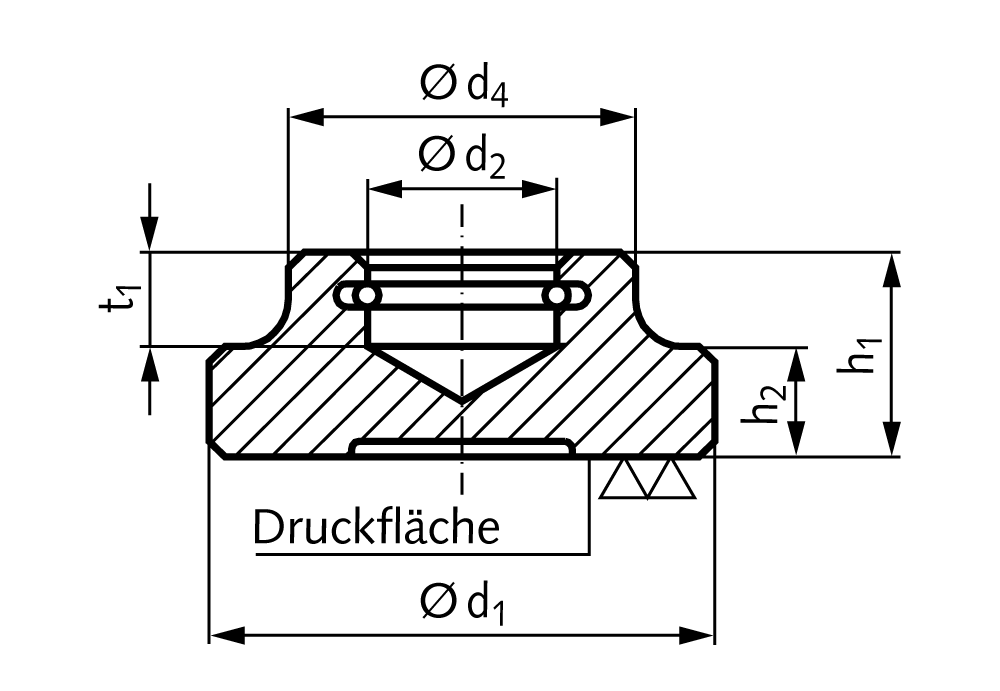

Material: Steel turned, case hardened, black oxide finish. Spring retainer included. Up to size d1= 40 mm for grub screws according to DIN 6332. From size d1= 48 mm for grub screws according to factory standard, manufactured according to measuring table at the PDF-catalog page.
