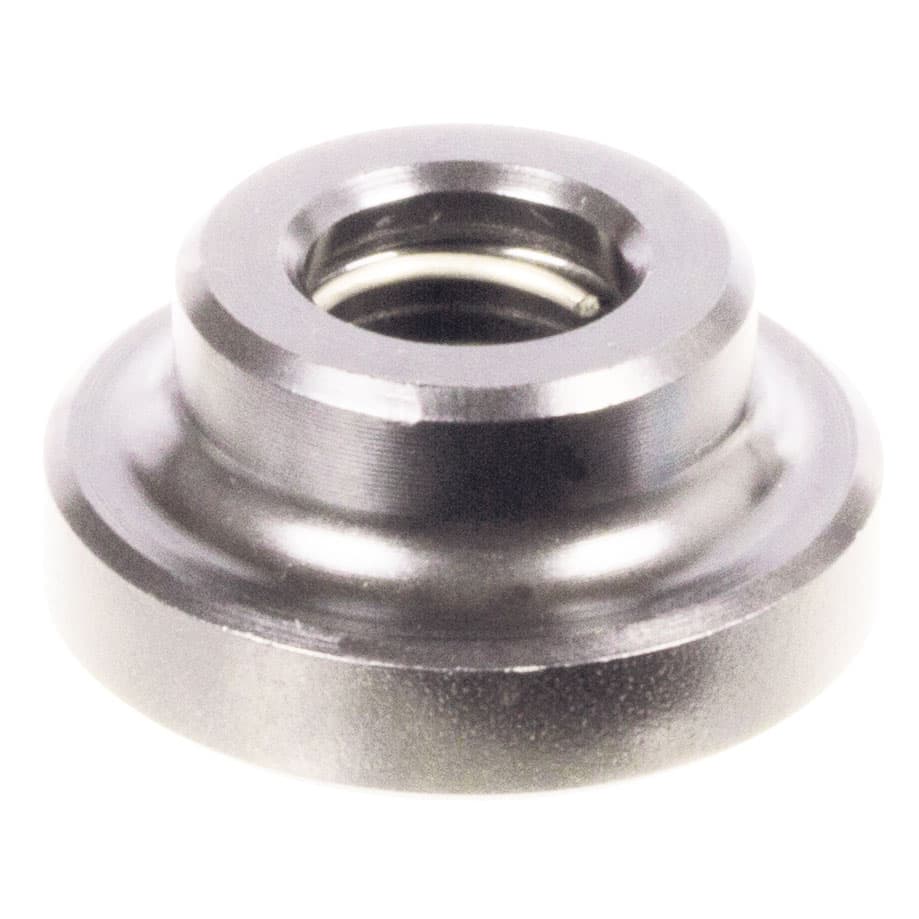

Thrust pad DIN 6311 diameter 20mm with snap ring DIN 9045
Manufacturer part no. 65411000
$2.84≈ 2.47 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €2.47 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.49 |
| Total delivered | €20.96 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 17 g |
Other characteristics
| Height | 11 mm |
| Outer diameter | 20 mm |
| For bolts gub screws | M 10 DIN6332 |
| Material | Steel |
| Surface | Black oxide finish |
Description
Material: Steel turned, case hardened, black oxide finish. Spring retainer included. Up to size d1= 40 mm for grub screws according to DIN 6332. From size d1= 48 mm for grub screws according to factory standard, manufactured according to measuring table at the PDF-catalog page.
