Ball transfer unit 364 size 45 housing steel zinc plated
Manufacturer part no. 65436445
$78.34≈ 68.03 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €68.03 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €16.61 |
| Total delivered | €99.64 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.01 kg |

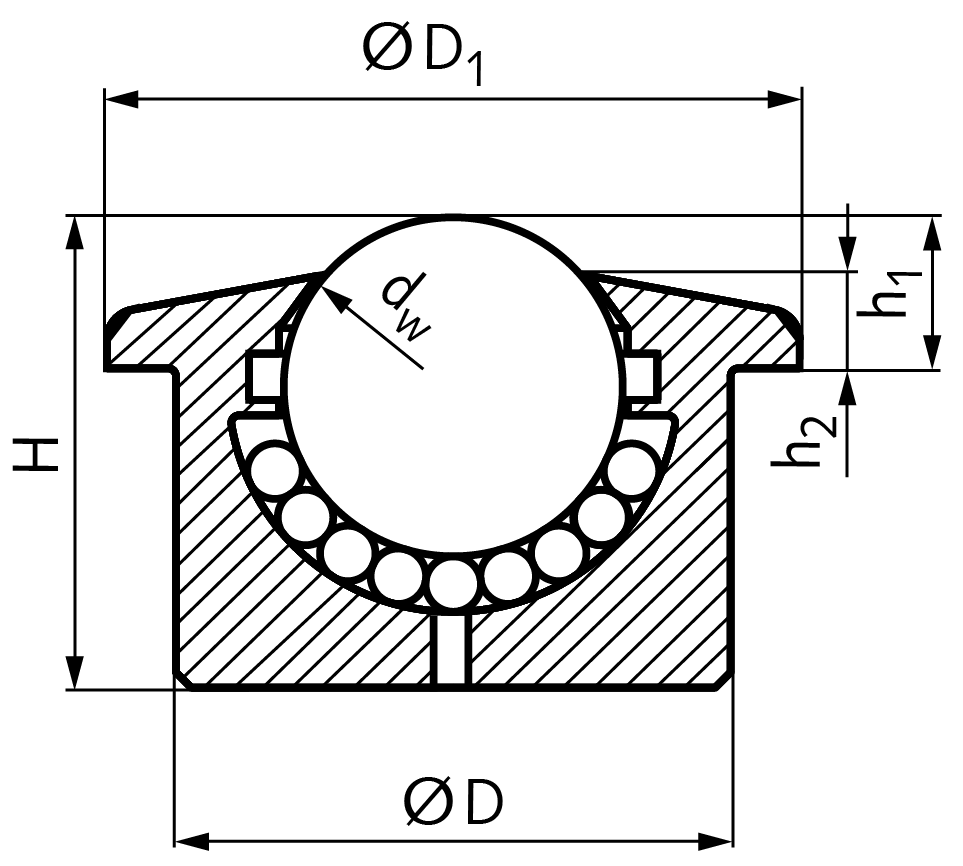

Other characteristics
| Load rating | 6 000 N |
| Outer diameter mounting surface | 62 mm |
| Outer diameter support surface | 75 mm |
| Overhang with ball | 19 mm |
| Overhang without ball | 10 mm |
| Size | 45 mm |
| Total height | 53.5 mm |
| Material | Steel |
| Surface | Zinc-plated |
Description

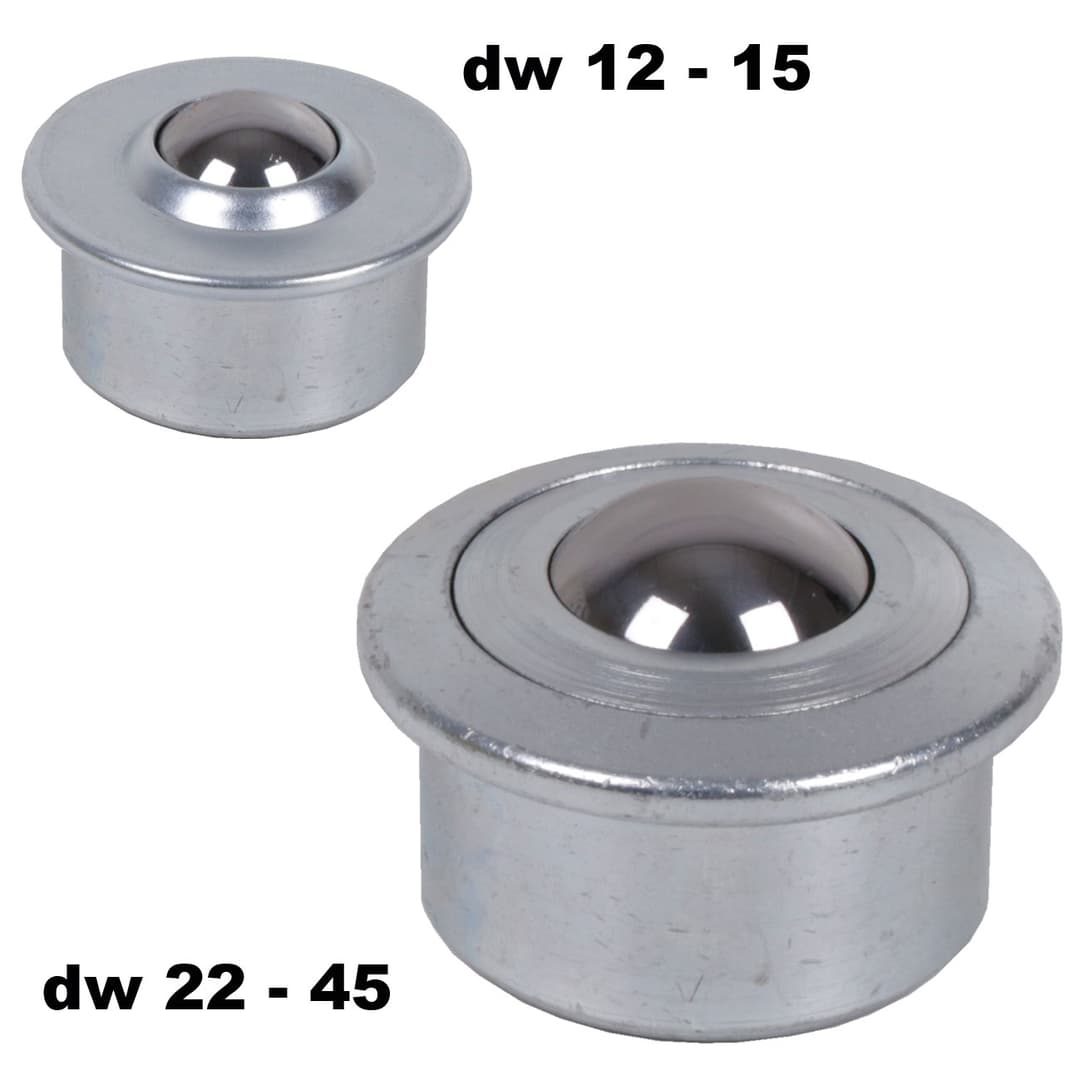

Material Type 364: Housing: Steel, zinc-plated. Ball cup: Steel, case hardend. Balls: Steel 100Cr6, hardened. Sizes dw 12 – 15 with pressed top cap made from sheet metal. Medium duty ball transfer unit for medium high load. Orientation: Ball up or horizontal. From size 22 with felt seal and drain hole. Can be used with fixing clip. Conveying speed max. 1,5m/sec. Temperature range -30°C to +100°C. Note: Due to unevenness of the running surface, there are often only three rollers carrying the weight. Therefore the chosen load rating should equal at least one third of the load. Max. distance of ball transfer units = edge length of the object divided by 2.5.
