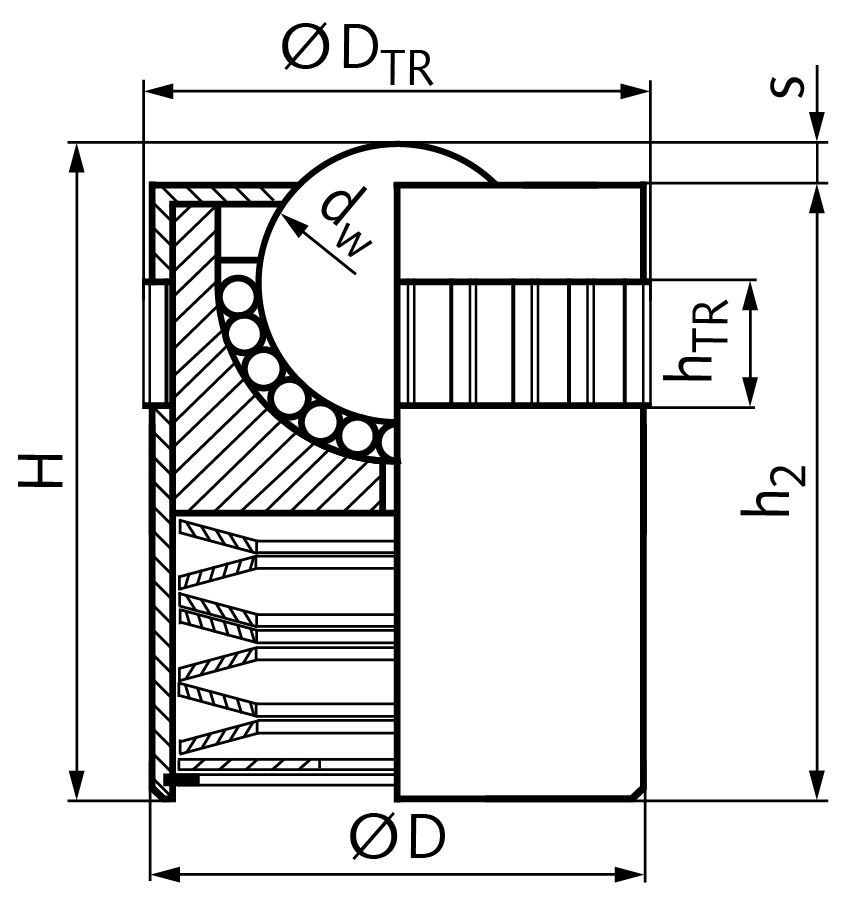

Ball transfer unit 374 size 15.8 housing steel black oxide finished
Manufacturer part no. 65437415
$170.76≈ 148.29 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €148.29 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €32.66 |
| Total delivered | €195.95 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 130 g |
Other characteristics
| Load rating | 600 N |
| Outer diameter | 29.9 mm |
| Outer diameter mounting surface | 30.5 mm |
| Size | 15.8 mm |
| Total height | 36 mm |
| Material | Steel |
| Surface | Black oxide finish |
Description
Material: Housing: Steel, black oxide finish. Inside this sleeve, there is a zinc-plated ball cup. Ball cup: Steel, case hardened. Balls: Steel 100Cr6, hardened. Medium duty ball transfer unit for medium high load, springloaded. Orientation: Ball up or horizontal. Shock loads may be higher than the stated load range. At force Fs max the end of spring travel is reached. With drain hole. Conveying speed max. 1.5m/sec. Temperature range -30°C to +100°C. * Bore size. Recommended bore tolerance: H9. Note: Due to unevenness of the running surface, there are often only three rollers carrying the weight. Therefore the chosen load rating should equal at least one third of the load. Max. distance of ball transfer units = edge length of the object divided by 2.5.
