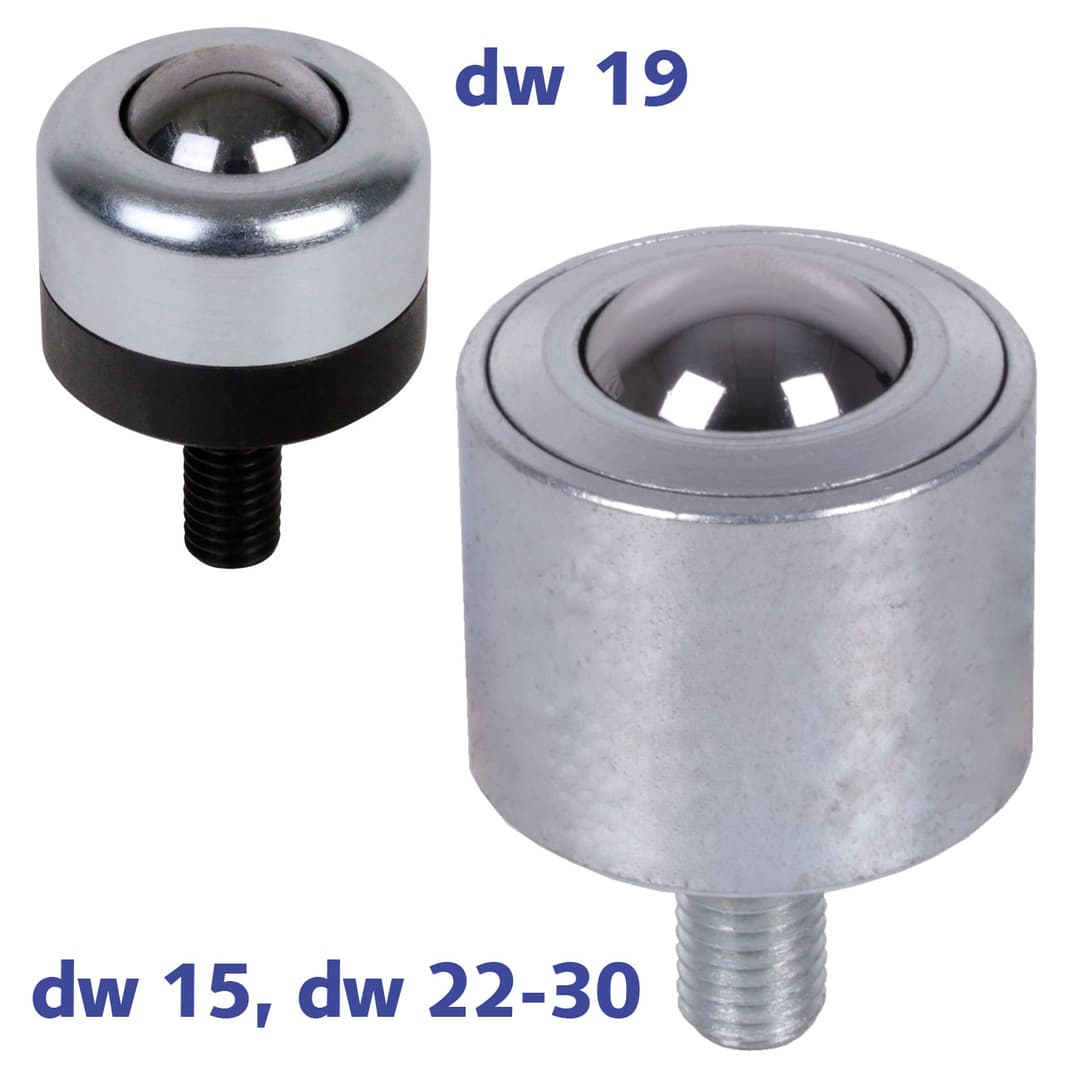

Ball transfer unit 376 size 15 housing steel zinc plated
Manufacturer part no. 65437615
$26.74≈ 23.82 €
Price summary
Listed by MÄDLER at €23.82. Delivered to France, including shipping, VAT and any customs duty, it comes to about €46.58. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €23.82 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.76 |
| Total delivered | €46.58 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 83 g |
Other characteristics
| Height | 26 mm |
| Load rating | 600 N |
| Outer diameter | 25 mm |
| Overhang with ball | 5 mm |
| Size | 15 mm |
| Thread length | 20 mm |
| Material | Steel |
| Surface | Zinc-plated |
| Thread size x pitch | M 8×1.25 mm |
Description
Material Type 376: Housing: Steel, zinc-plated. Ball cup: Steel, case hardened. Balls: Steel 100Cr6, hardened. Medium duty ball transfer unit for medium high load. Orientation: Ball up or horizontal. From size 22 with felt seal. Without drain hole. Conveying speed max. 1.5m/sec. Temperature range -30°C to +100°C. Note: Due to unevenness of the running surface, there are often only three rollers carrying the weight. Therefore the chosen load rating should equal at least one third of the load. Max. distance of ball transfer units = edge length of the object divided by 2.5.
