MÄDLERMÄDLER· Cylinder Conveyor Rollers and Ball Transfer Units

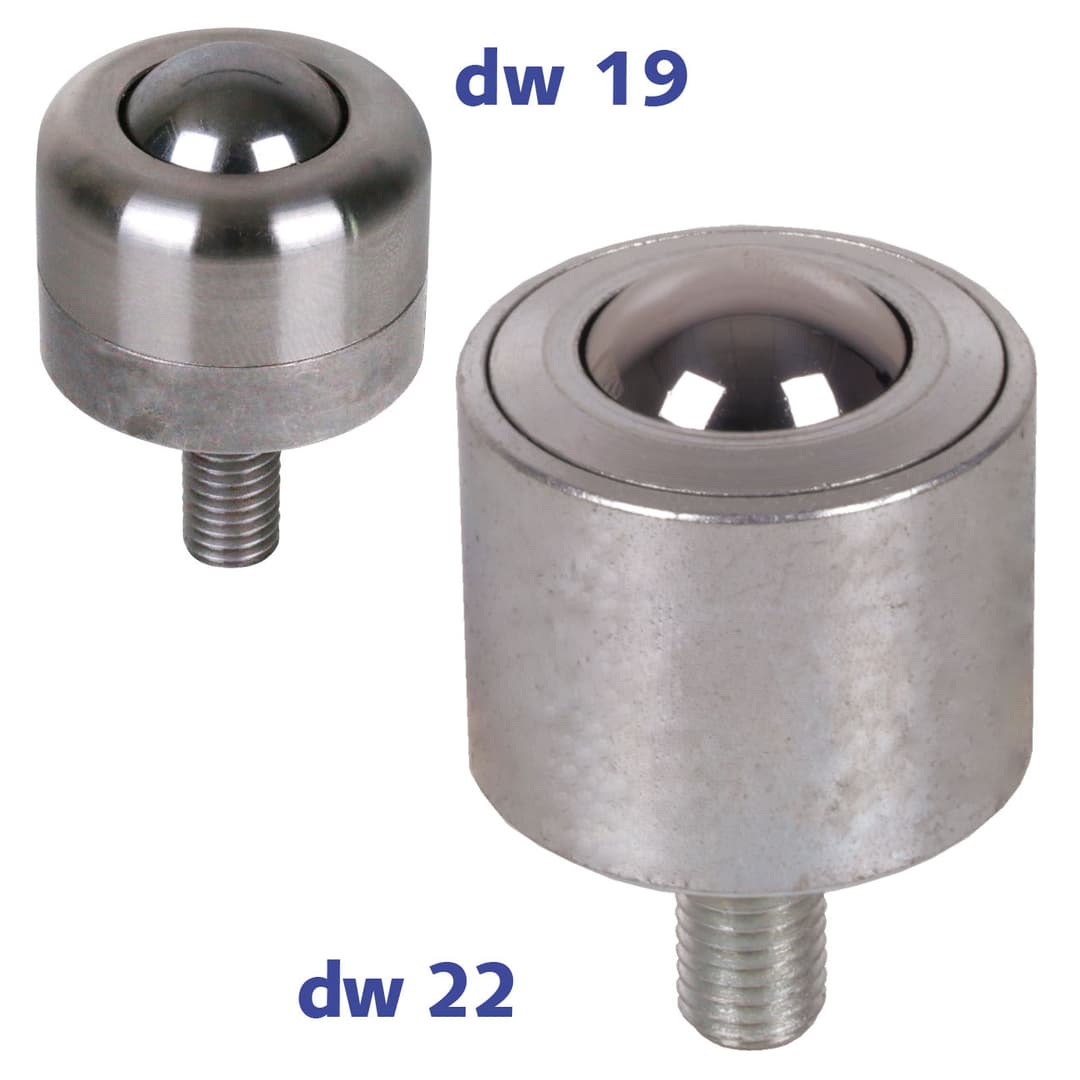

Ball transfer unit 377 size 19 stainless steel
Manufacturer part no. 65437719
$83.20≈ 72.25 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €72.25 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €17.45 |
| Total delivered | €104.70 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 109 g |
Other characteristics

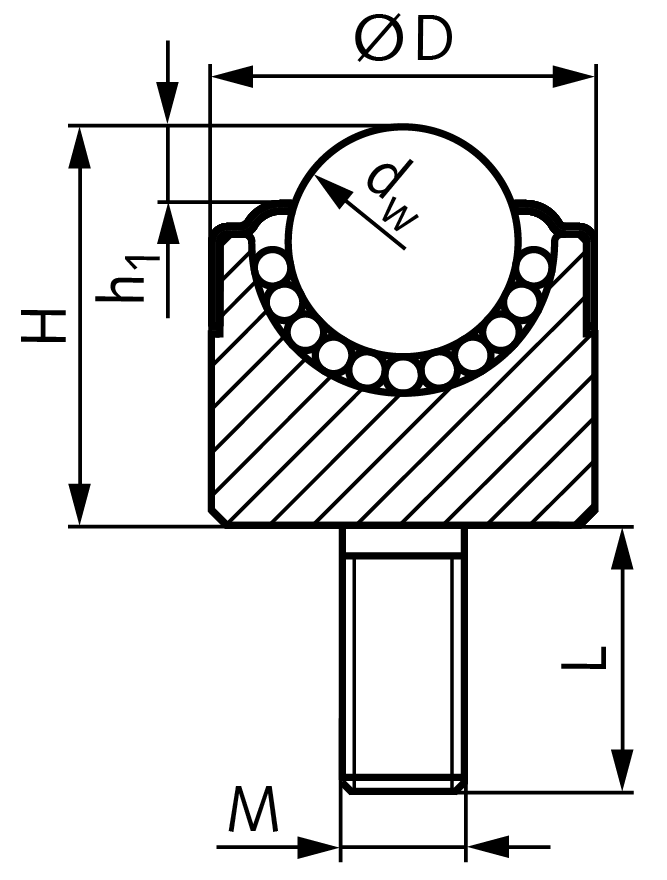

| Height | 26 mm |
| Load rating | 750 N |
| Outer diameter | 30 mm |
| Overhang with ball | 4.8 mm |
| Size | 19 mm |
| Thread length | 20.5 mm |
| Material | Stainless steel (420) |
| Surface | Blank |
| Thread size x pitch | M 8×1.25 mm |
Description
Material Type 377: Stainless steel 1.4021. Medium duty ball transfer unit for medium high load. Orientation: Ball up or horizontal. From size 22 with felt seal. Without drain hole. Conveying speed max. 1.5m/sec. Temperature range -30°C to +100°C. Note: Due to unevenness of the running surface, there are often only three rollers carrying the weight. Therefore the chosen load rating should equal at least one third of the load. Max. distance of ball transfer units = edge length of the object divided by 2.5.
