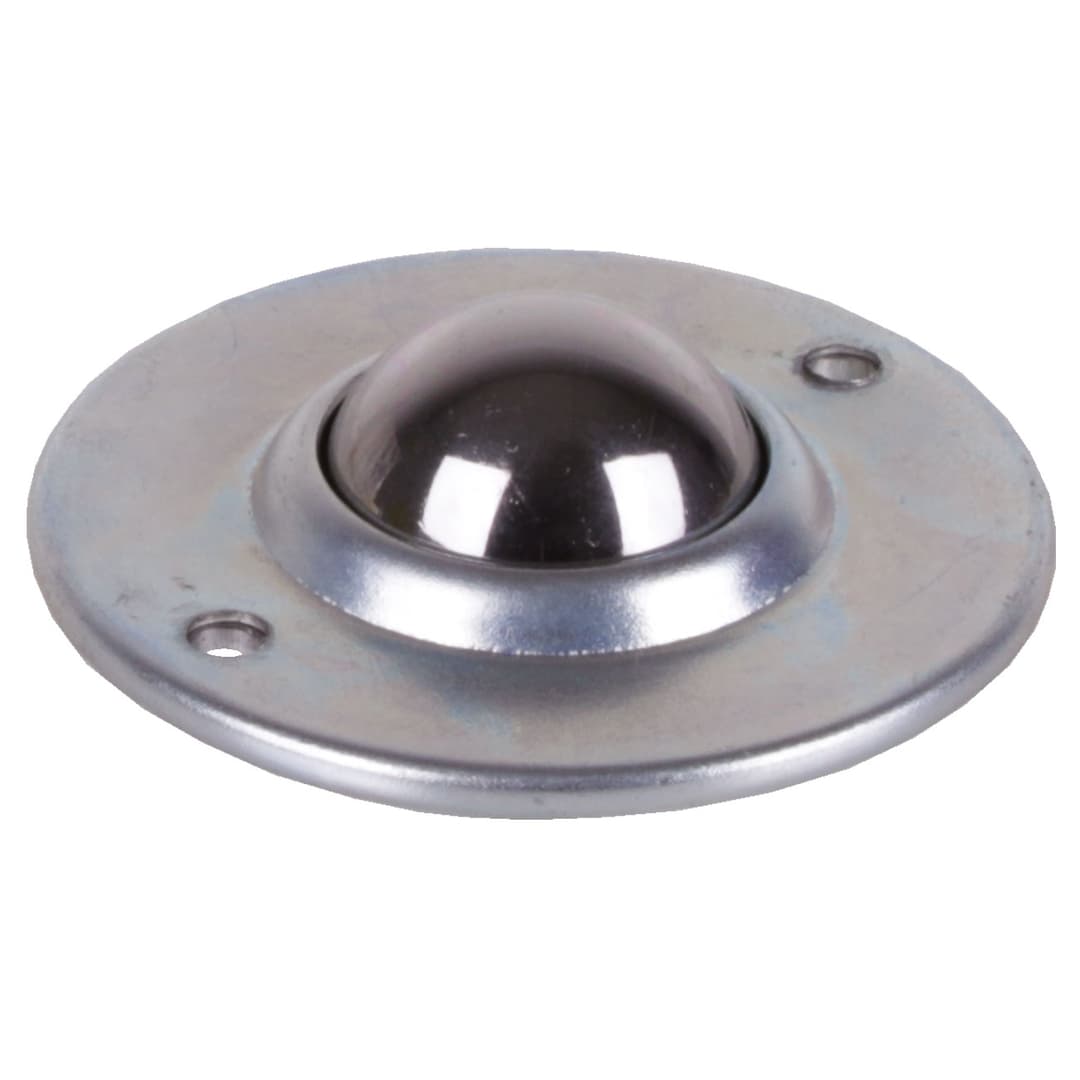

Ball transfer unit 383 size 32 stainless steel
Manufacturer part no. 65438332
$49.54≈ 43.02 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €43.02 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.60 |
| Total delivered | €69.62 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 269 g |
Other characteristics
| Load rating | 1 250 N |
| Outer diameter | 45.5 mm |
| Outer diameter support surface | 73.7 mm |
| Overhang with ball | 16.2 mm |
| Overhang without ball | 8.2 mm |
| Size | 32 mm |
| Thickness of support surface | 4.2 mm |
| Total height | 36.1 mm |
| Material | Stainless steel |
| Surface | Blank |
Description
Material Type 383: Stainless steel. Light duty ball transfer unit for low load. Orientation: Ball up or horizontal. From size 19 with felt seal and drain hole. Size 32 stainless is without felt seal. Conveying speed max. 1m/sec.Temperature range -20°C to +70°C. Note: Due to unevenness of the running surface, there are often only three rollers carrying the weight. Therefore the chosen load rating should equal at least one third of the load. Max. distance of ball transfer units = edge length of the object divided by 2.5.
