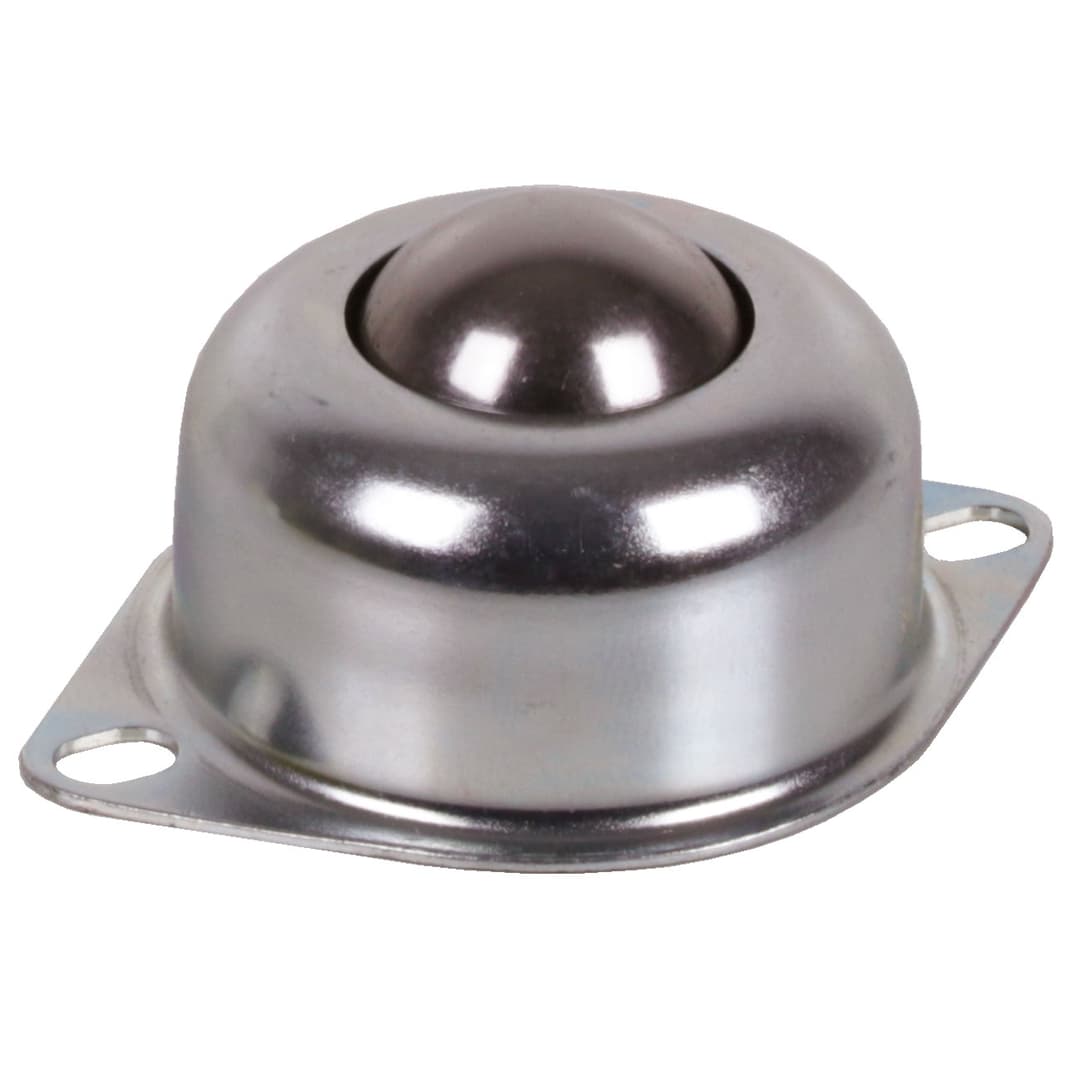

Ball transfer unit 387 size 25,4 stainless steel
Manufacturer part no. 65438726
$36.37≈ 31.58 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €31.58 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.32 |
| Total delivered | €55.90 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical

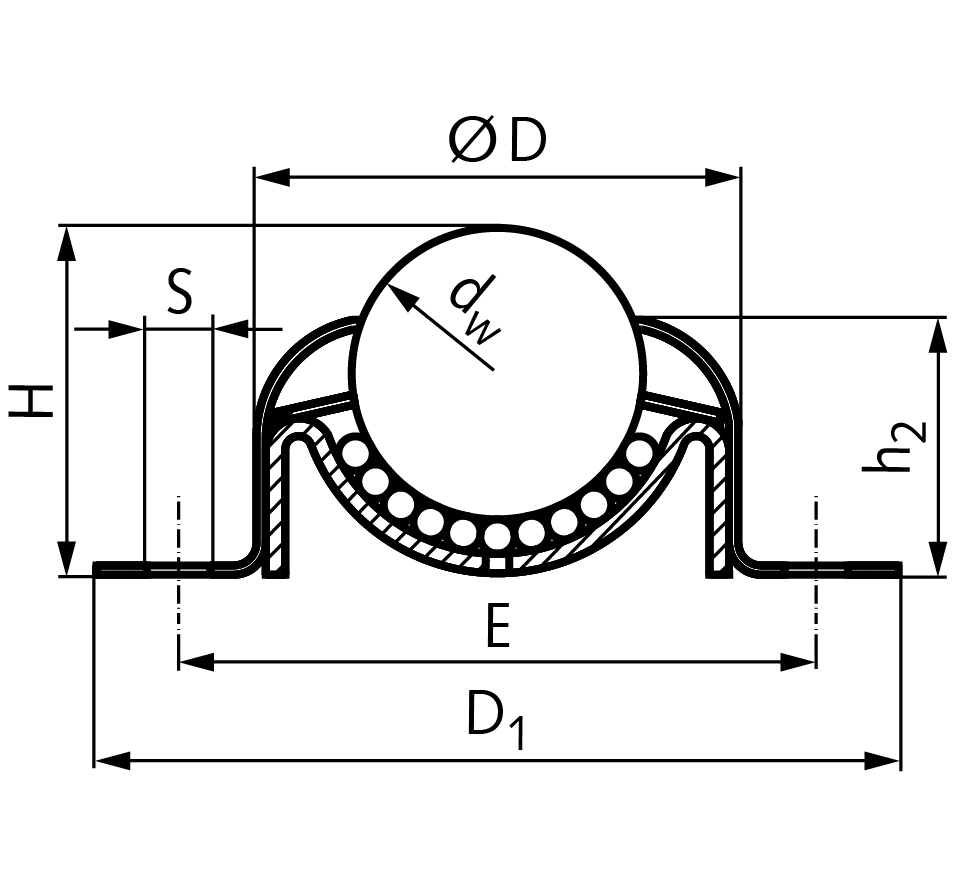

| Weight | 155 g |
Other characteristics
| Load rating | 550 N |
| No of holes | 2 mm |
| Outer diameter ball housing | 45 mm |
| Overhang without ball | 24.1 mm |
| Size | 25.4 mm |
| Total height | 30.4 mm |
| Material | Stainless steel |
| Outer diameter support surface | 69 x 51 mm |
| Surface | Blank |
Description
Material Type 387: Stainless steel. Light duty ball transfer unit for low load. Orientation: Ball up or horizontal. With felt seal and drain hole. Conveying speed max. 1m/sec. Temperature range -20°C to +70°C. 1) Slot hole. Note: Due to unevenness of the running surface, there are often only three rollers carrying the weight. Therefore the chosen load rating should equal at least one third of the load. Max. distance of ball transfer units = edge length of the object divided by 2.5.
