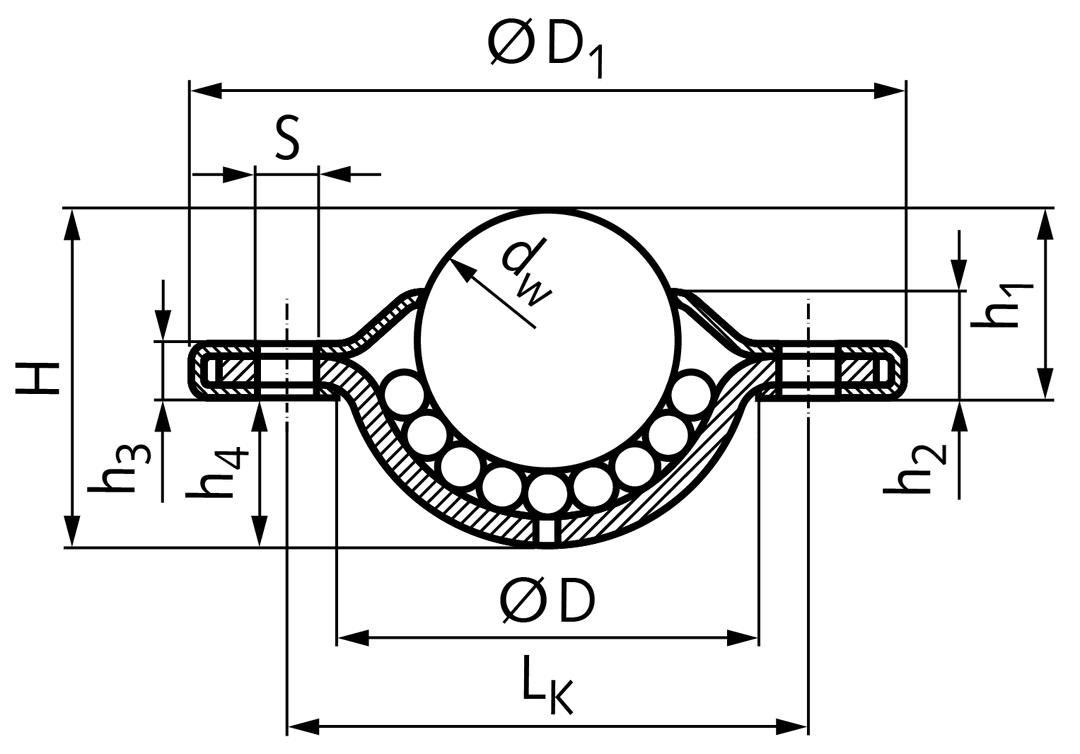

Ball transfer unit 380 size 23 housing steel zinc plated
Manufacturer part no. 65438023
$14.62≈ 12.70 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €12.70 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.54 |
| Total delivered | €33.24 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 96 g |
Other characteristics
| Load rating | 1 200 N |
| Outer diameter | 33 mm |
| Outer diameter support surface | 45 mm |
| Overhang with ball | 9.8 mm |
| Overhang without ball | 3.6 mm |
| Size | 23 mm |
| Thickness of support surface | 3.6 mm |
| Total height | 27.7 mm |
| Material | Steel |
| Surface | Zinc-plated |
Description
Material Type 380: Housing: Steel, zinc-plated. Ball cup: Steel. Balls: Steel, hardened. Light duty ball transfer unit for low load. Orientation: Ball up or horizontal. From size 19 with felt seal and drain hole. Size 32 stainless is without felt seal. Conveying speed max. 1m/sec.Temperature range -20°C to +70°C. Note: Due to unevenness of the running surface, there are often only three rollers carrying the weight. T herefore the chosen load rating should equal at least one third of the load. Max. distance of ball transfer units = edge length of the object divided by 2.5.
