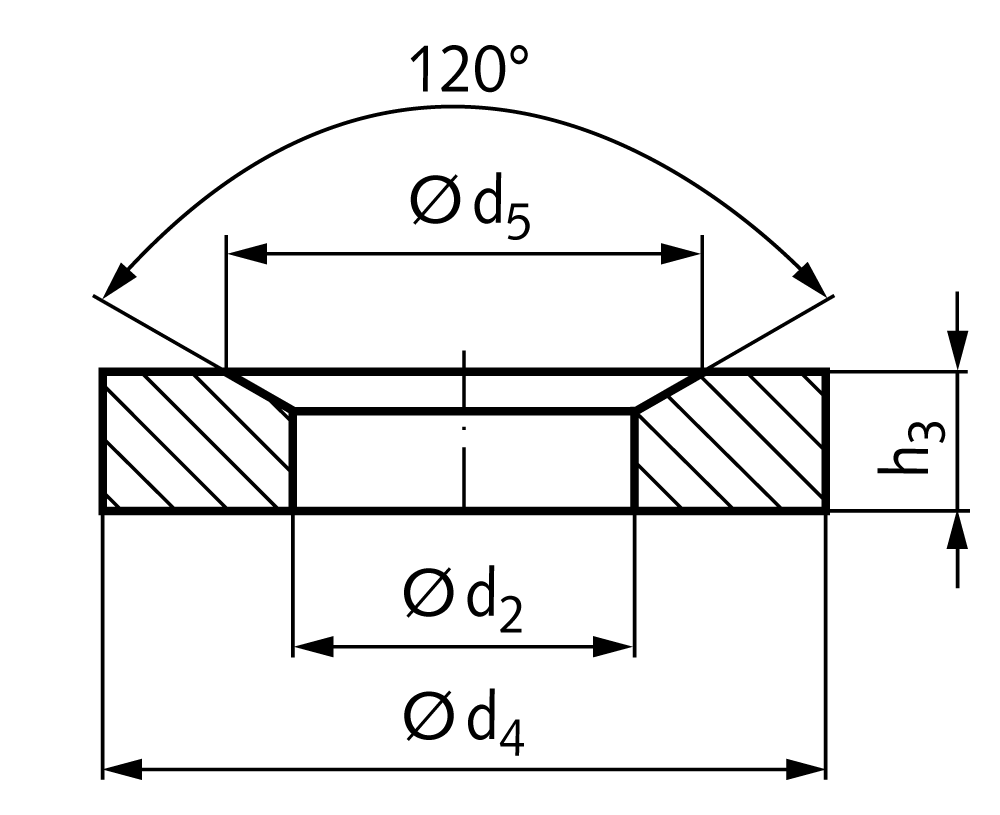

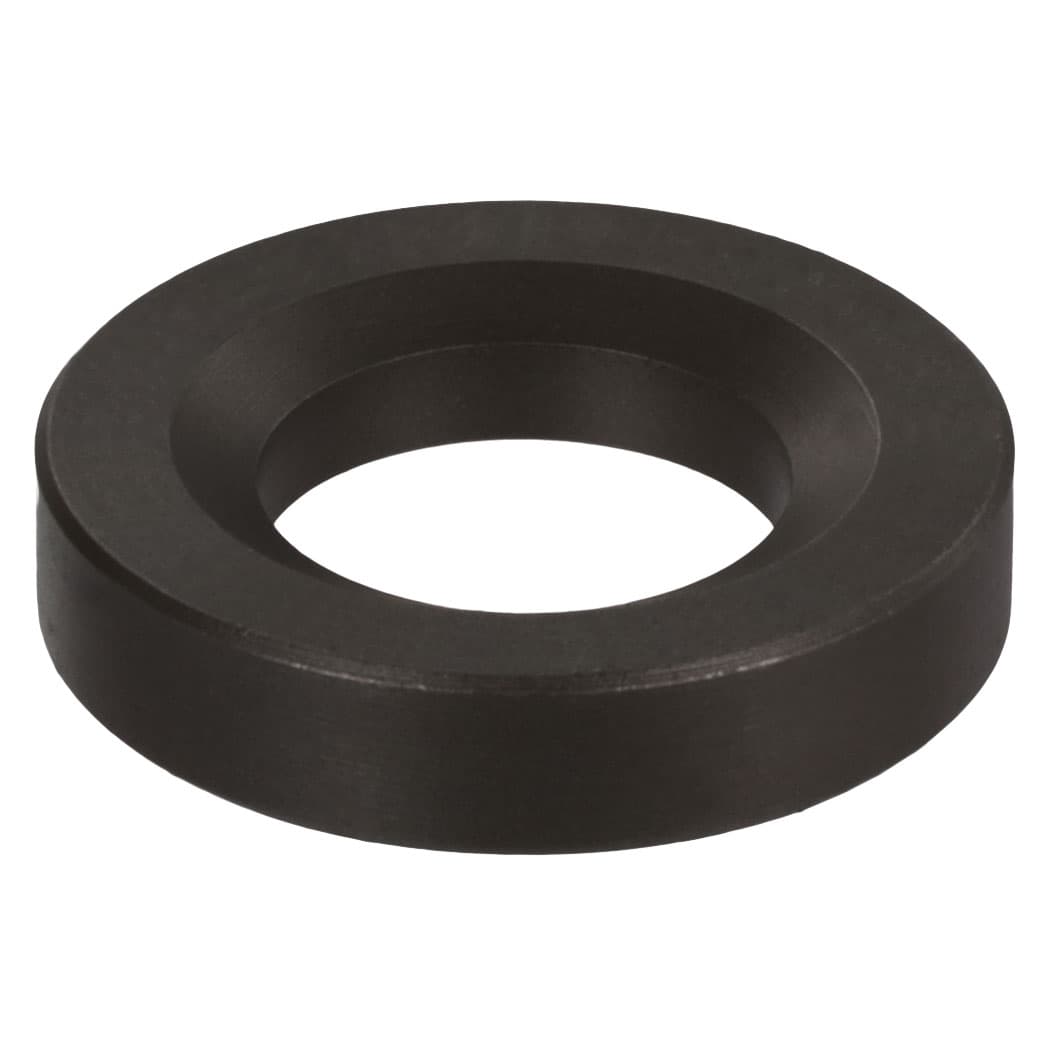

Conical seat DIN 6319 form G diameter 24mm for bolt diameter 8mm steel hardened
Manufacturer part no. 65560800
$1.17≈ 1.02 €
Price summary
Listed by MÄDLER at €1.02. Delivered to France, including shipping, VAT and any customs duty, it comes to about €19.22. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €1.02 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.20 |
| Total delivered | €19.22 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 13 g |
Other characteristics
| Height | 5 mm |
| Inner diameter | 9.6 mm |
| Optional spherical washer partno | 65 540 800 |
| Outer diameter | 24 mm |
| Static load | 17 kN |
| For bolt diameter | M 8 mm |
| Material | Steel |
| Surface | Phosphated |
Description
Material: Steel, bright turned, tempered steel, phosphated and oiled. Spherical washers DIN 6319 type C are mostly used with conical seats DIN 6319 type D, for screw fittings at non-parallel faces. Conical seats DIN 6319 type G, with larger outside diameter and height, should be used at relatively big holes or slot holes. * Total height, together with spherical washer. ** Max. statical load.
Cheaper alternatives
Semantically close products available for less — check the specs match your need.
Similar products
MÄDLERBackorder
Conical seat DIN 6319 form G diameter 60mm for bolt diameter 24mm steel hardened
€3.37$3.88
View at seller ↗
MÄDLERBackorder

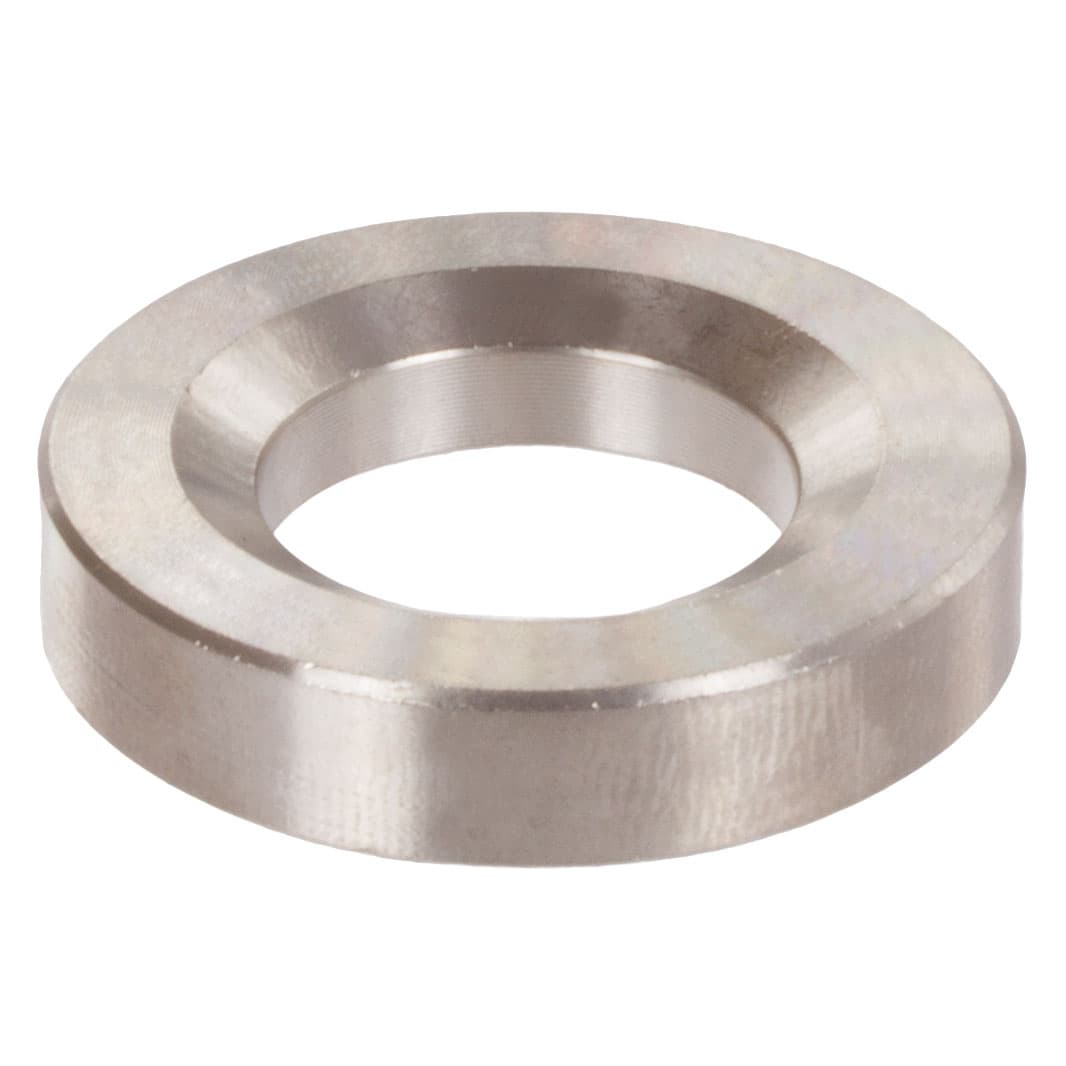

Conical seat DIN 6319 form G diameter 24mm for bolt diameter 8mm 1.4401
