MÄDLERMÄDLER· Parts for Operating
Star knob similar to DIN 6336 type E thread M6
Manufacturer part no. 66133201
$2.66≈ 2.31 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €2.31 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.46 |
| Total delivered | €20.77 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 15 g |
Other characteristics
| Distance to knob | 10 mm |
| Hub diameter | 12 mm |
| Min length bore thread | 12 mm |
| Outer diameter | 32 mm |
| Overhang of bushing | 8.5 mm |
| Total height | 20 mm |
| Inner thread size | M 6 mm |
| Material | Polyamide (PA) |
| Surface | Blank |
| Version | E |
Description

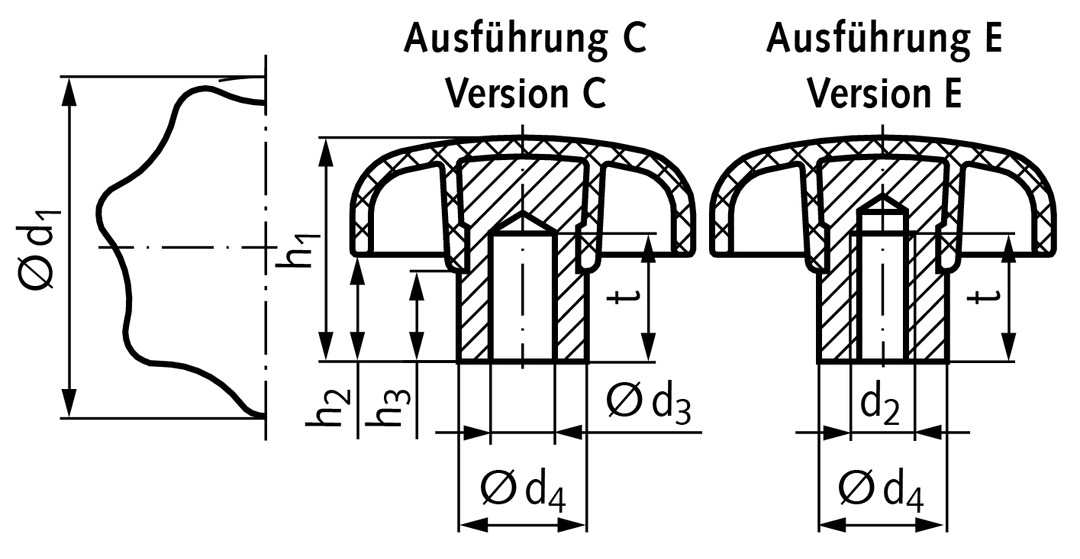

Material: Plastic Thermoplast (Polyamide), impact resistant, black, matt finish. Bush: Steel, zinc-plated, chromated blue. Version C: with blind hole H7. Version E: with thread (tapped blind hole). The full diameter of the contact surface is made from Steel. The protruding steel bush allows a perfect cross-pin connection.
