MÄDLERMÄDLER· Parts for Operating

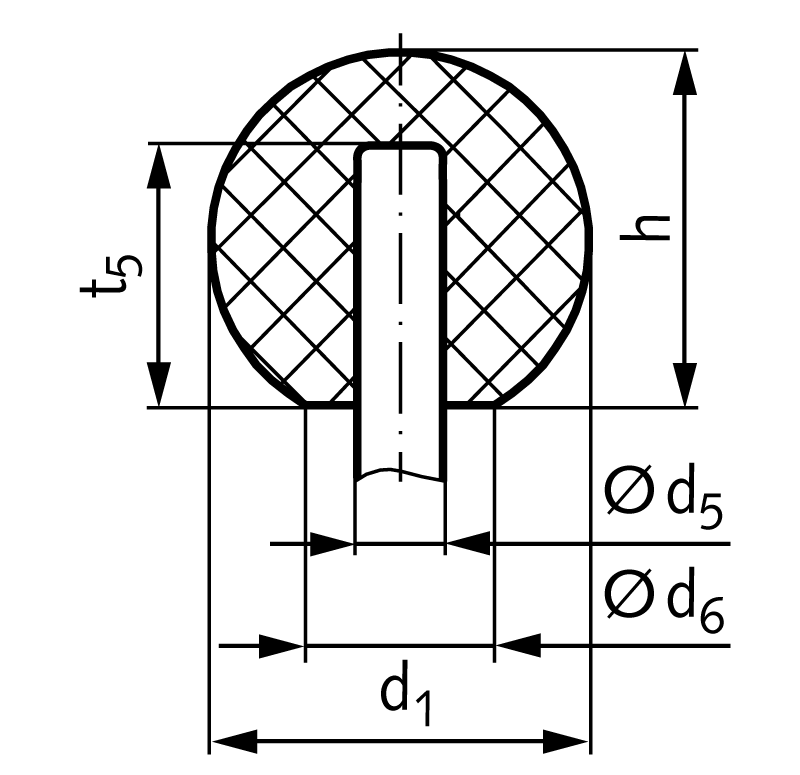

Ball knob DIN 319 version M with conical bore thermoplast PA6GV diameter 20mm for shaft 5mm
Manufacturer part no. 66432005
$0.67≈ 0.58 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €0.58 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.12 |
| Total delivered | €18.70 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 5 g |
Other characteristics
| Ball knob diameter | 20 mm |
| Bore diameter | 5 mm |
| Diameter of support surface | 12 mm |
| Height | 18 mm |
| Thread depth | 13 mm |
| Material | Polyamide (PA6-CF) |
| Surface | Matt finish |
Description
Material PA: Thermoplast (Polyamide PA6 GV), glass-fibre reinforced, impact resistant, black matt. Version M = With conical bore. Recommended shaft tolerance: h9. Shaft d5 is not included in the delivery.
