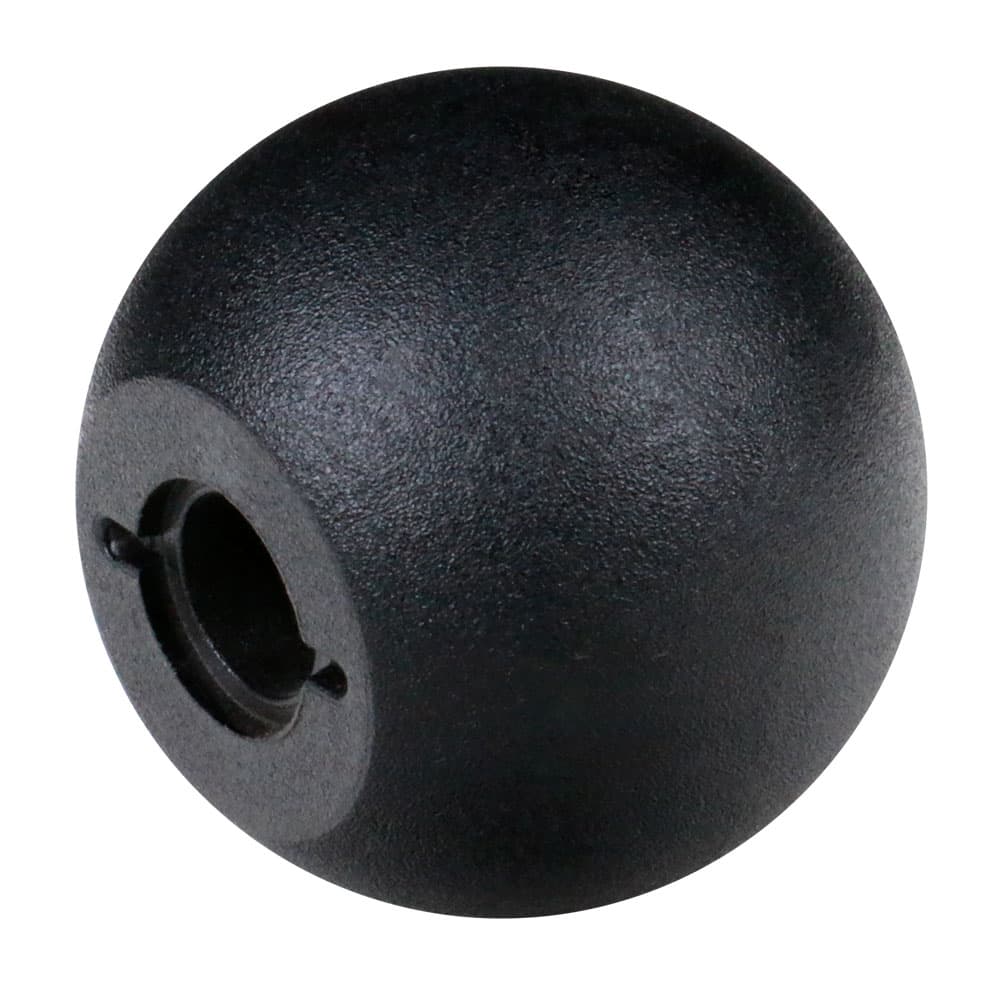

Ball knob DIN 319 version M with conical bore thermoplast PA6GV diameter 25mm for shaft 6mm
Manufacturer part no. 66432506
$0.85
Manufacturer part no. 66432506
Listed by MÄDLER at €0.76. Delivered to France, including shipping, VAT and any customs duty, it comes to about €18.91. Prices last checked on 2026-10-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €0.76 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.15 |
| Total delivered | €18.91 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

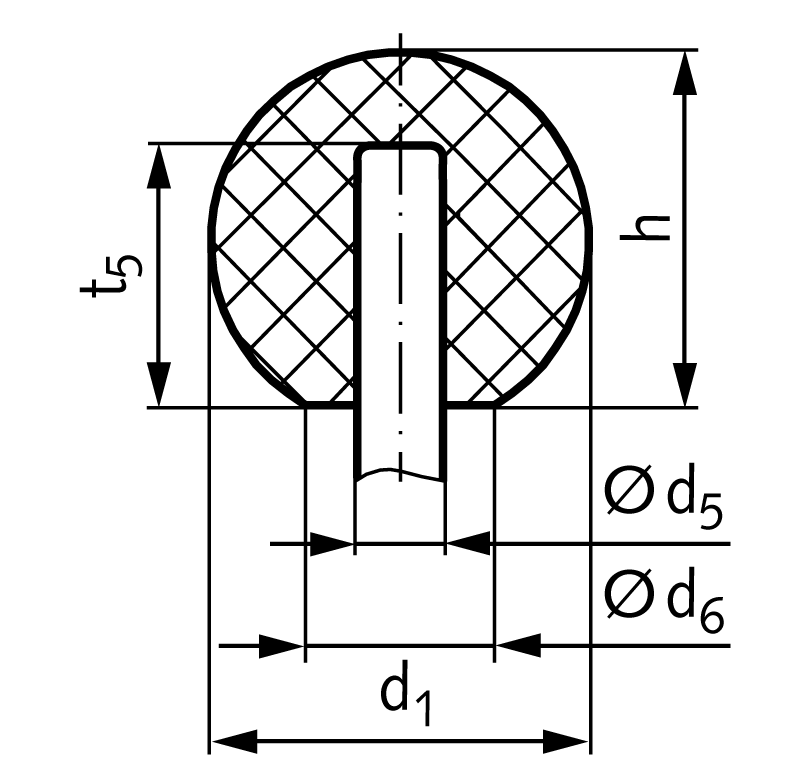

| Weight | 10 g |
| Ball knob diameter | 25 mm |
| Bore diameter | 6 mm |
| Diameter of support surface | 15 mm |
| Height | 22.5 mm |
| Thread depth | 16 mm |
| Material | Polyamide (PA6-CF) |
| Surface | Matt finish |
Material PA: Thermoplast (Polyamide PA6 GV), glass-fibre reinforced, impact resistant, black matt. Version M = With conical bore. Recommended shaft tolerance: h9. Shaft d5 is not included in the delivery.
