MÄDLERMÄDLER· Parts for Operating

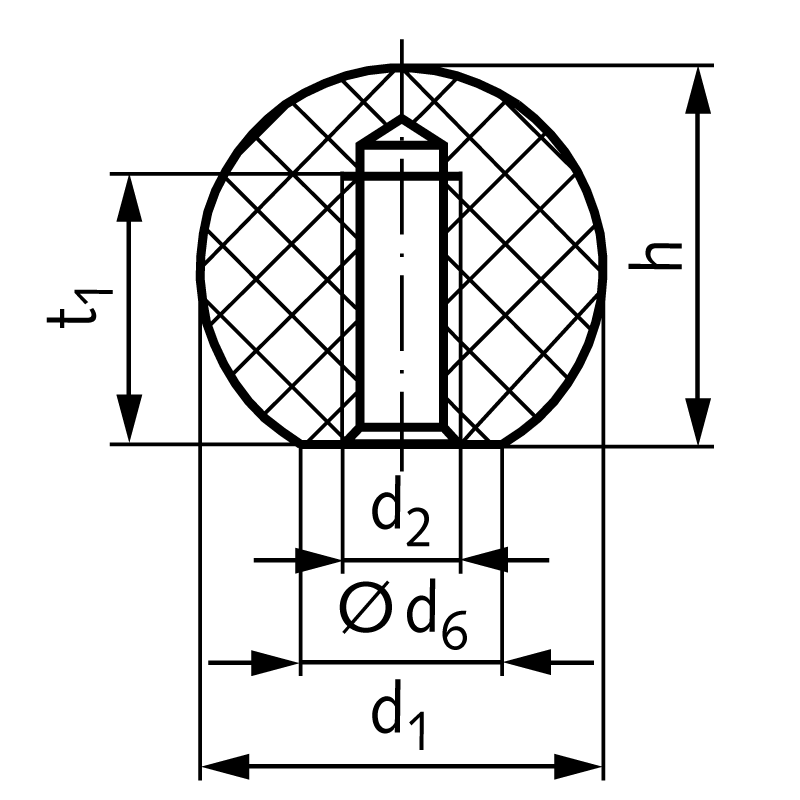

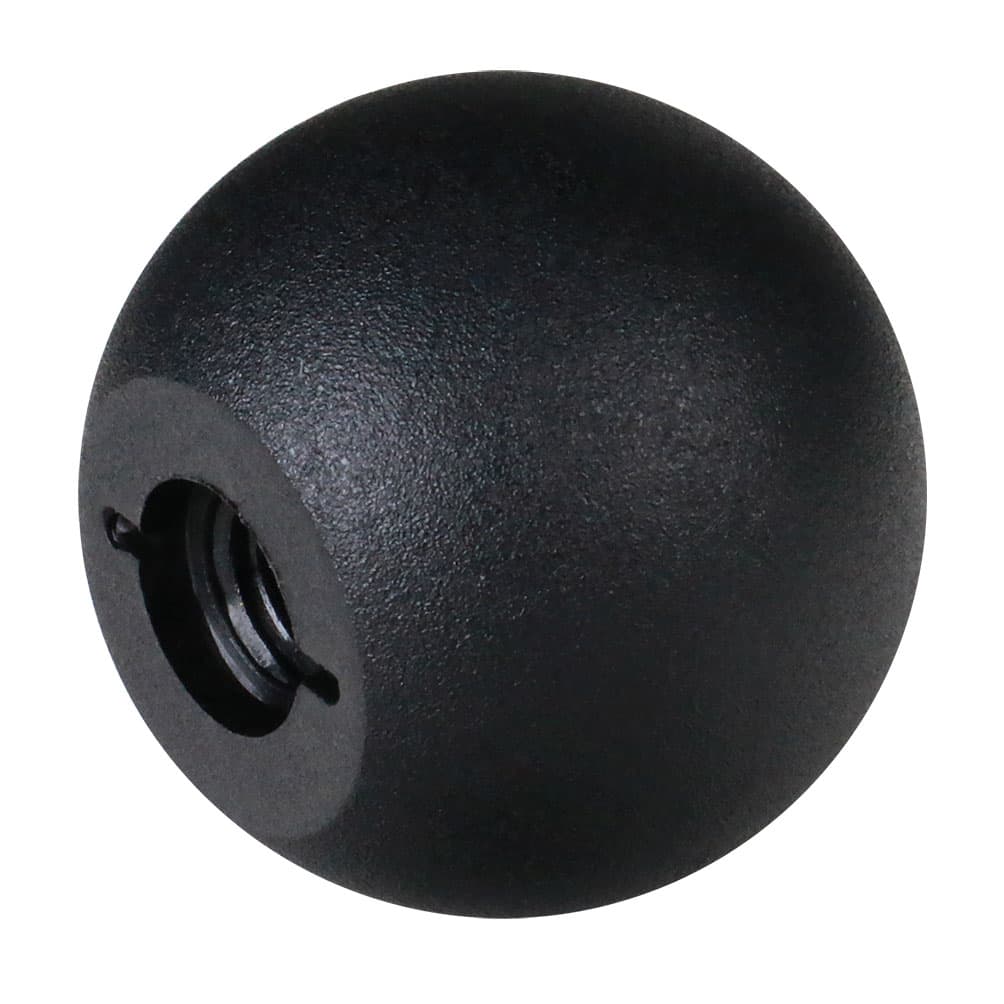

Ball knob DIN 319 version C thermoplast PA6GV with compression-moulded thread diameter 32mm M8
Manufacturer part no. 66473208
$1.48≈ 1.29 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €1.29 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.26 |
| Total delivered | €19.55 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 20.8 g |
Other characteristics
| Ball knob diameter | 32 mm |
| Diameter of support surface | 18 mm |
| Height | 29 mm |
| Thread depth | 12 mm |
| Inner thread size | M 8 mm |
| Material | Polyamide (PA6-CF) |
| Surface | Matt finish |
Description
Material PA: Thermoplast (Polyamide PA6 GV), glass-fibre reinforced, impact resistant, black matt. Version C = With compression-moulded thread. Size 16/M5, 20/M6, 25/M8, 32/M10 and 40/M12 is not part of the DIN 319.
