MÄDLERMÄDLER· Parts for Operating

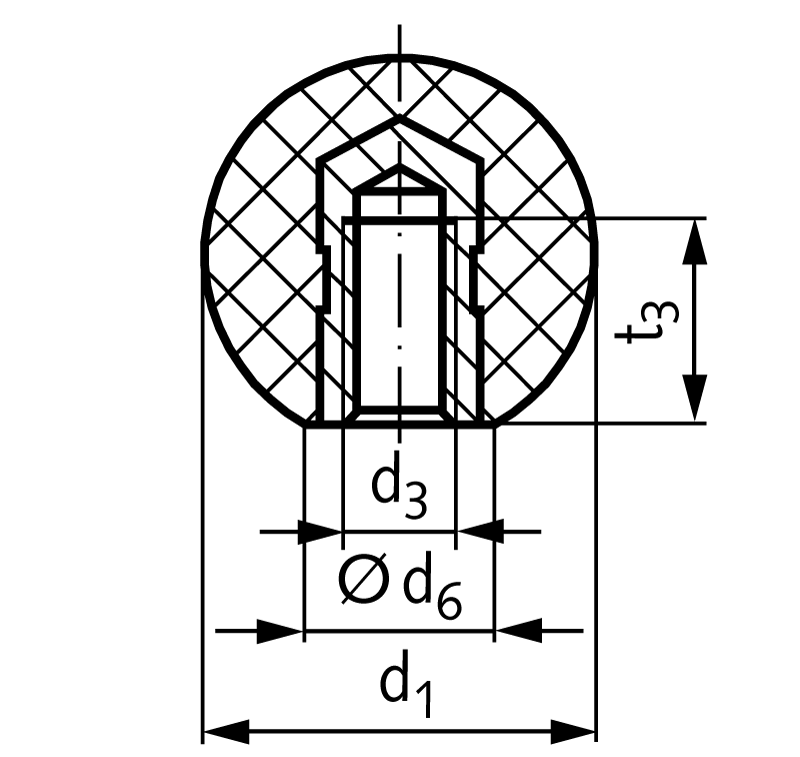

Ball knob DIN 319 version E thermoplast PA6GV with threaded bush from steel diameter 20mm M5
Manufacturer part no. 66482005
$1.16≈ 1.01 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €1.01 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.20 |
| Total delivered | €19.21 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 8.1 g |
Other characteristics
| Ball knob diameter | 20 mm |
| Diameter of support surface | 12 mm |
| Height | 18 mm |
| Thread depth | 7.5 mm |
| Inner thread size | M 5 mm |
| Material | Polyamide (PA6-CF) |
| Surface | Matt finish |
Description
Material PA: Thermoplast (Polyamide PA6 GV), glass-fibre reinforced, impact resistant, black matt. Version E = With threaded bush of zinc-plated steel. Size 20/M6, 25/M8 and 32/M10 is not part of the DIN 319.
