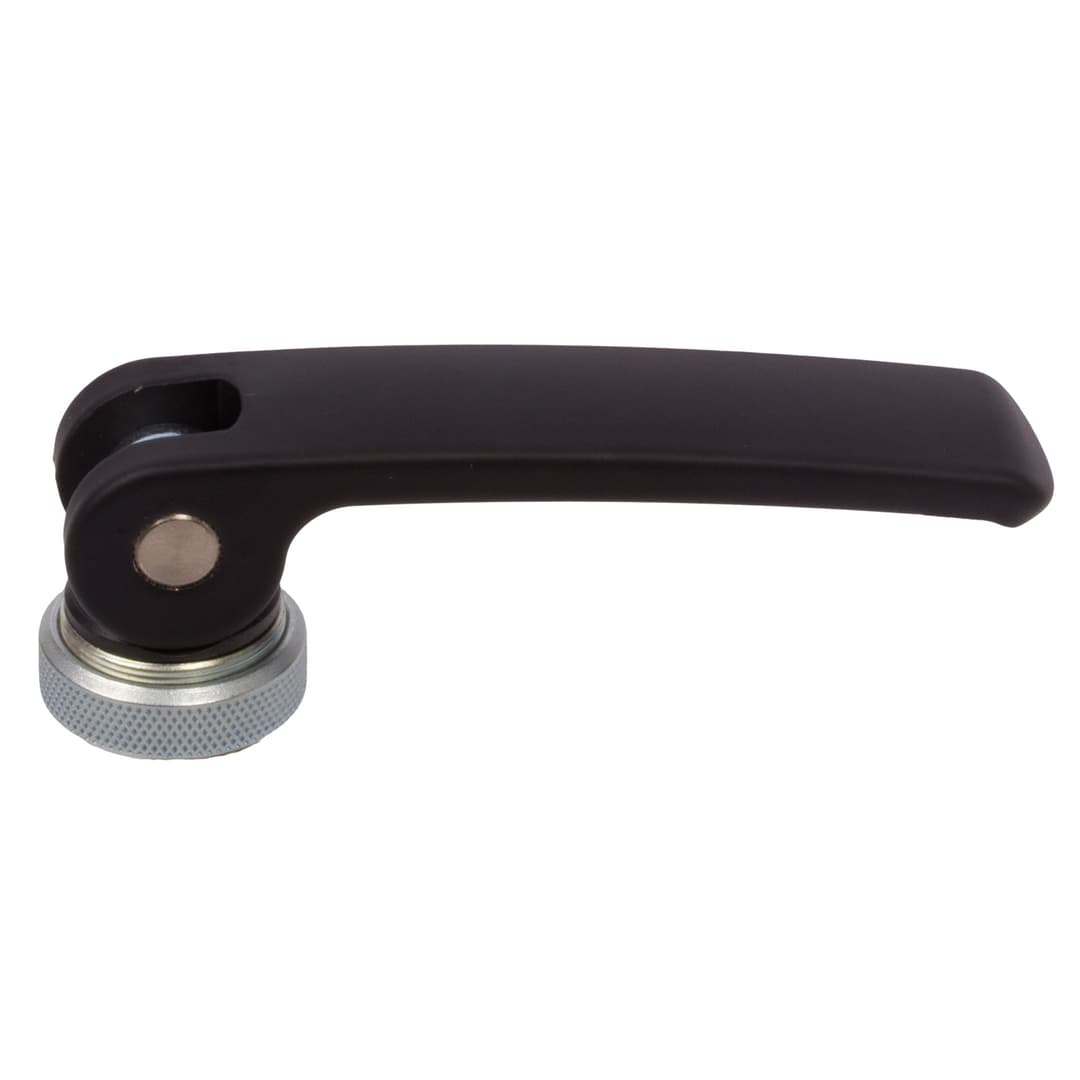

Excentric clamp 927 Version B internal thread M8

MÄDLERMÄDLER

Excentric clamp 927 Version B internal thread M8

Name: Excentric clamp 927 Version B internal thread M8
Brand: MÄDLER
Price: 15.37 USD
Availability: BackOrder

Manufacturer part no. 66578220

$15.37≈ 13.30 €

Price summary

Listed by MÄDLER at €13.30. Delivered to France, including shipping, VAT and any customs duty, it comes to about €33.96. Prices last checked on 2026-08-05.

Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.

On backorderlead time 14 d

View at seller ↗

Estimated landed cost

Landed cost breakdown
Item	€13.30
Shipping	€15.00
VAT (20%)	€5.66
Total delivered	€33.96

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Datasheets & documents

Specifications (automatically extracted)

Mechanical

Weight

108 g

Other characteristics

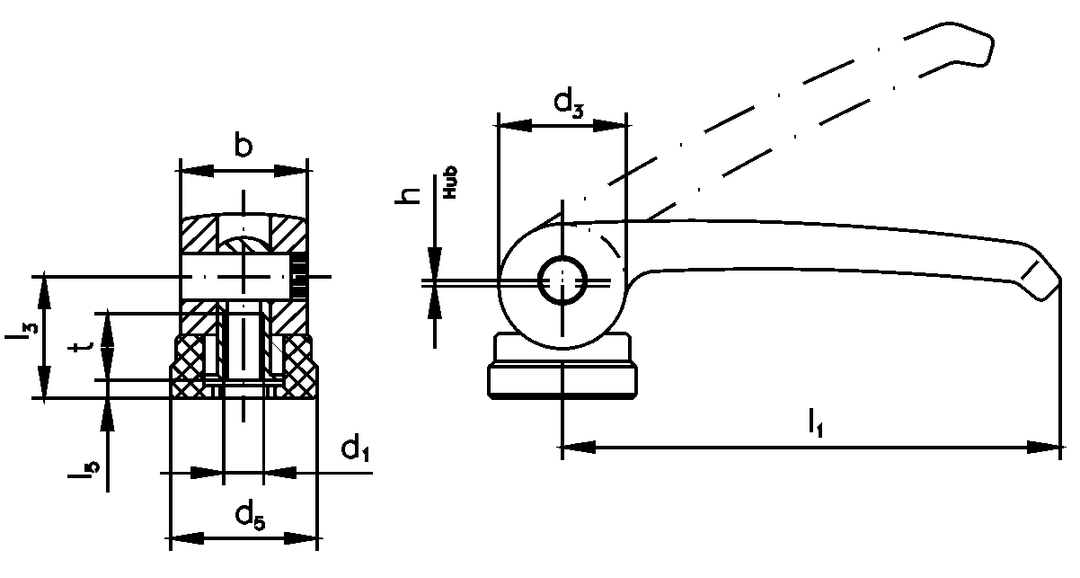

Adjustable range	3 mm
Center distance to mounting surface in clamping	19.5 mm
Clamping distance of nut in clamping position	3.7 mm
Diameter of folding part	20 mm
Diameter of setting nut	25 mm
Diameter of support surface	22.5 mm
Handle width	20 mm
Length to folding point	82 mm
Stroke at 90 lever movement	1 mm
Thread length	12 mm
Material	Zinc die-cast
Surface	Epoxy resin coated

Description

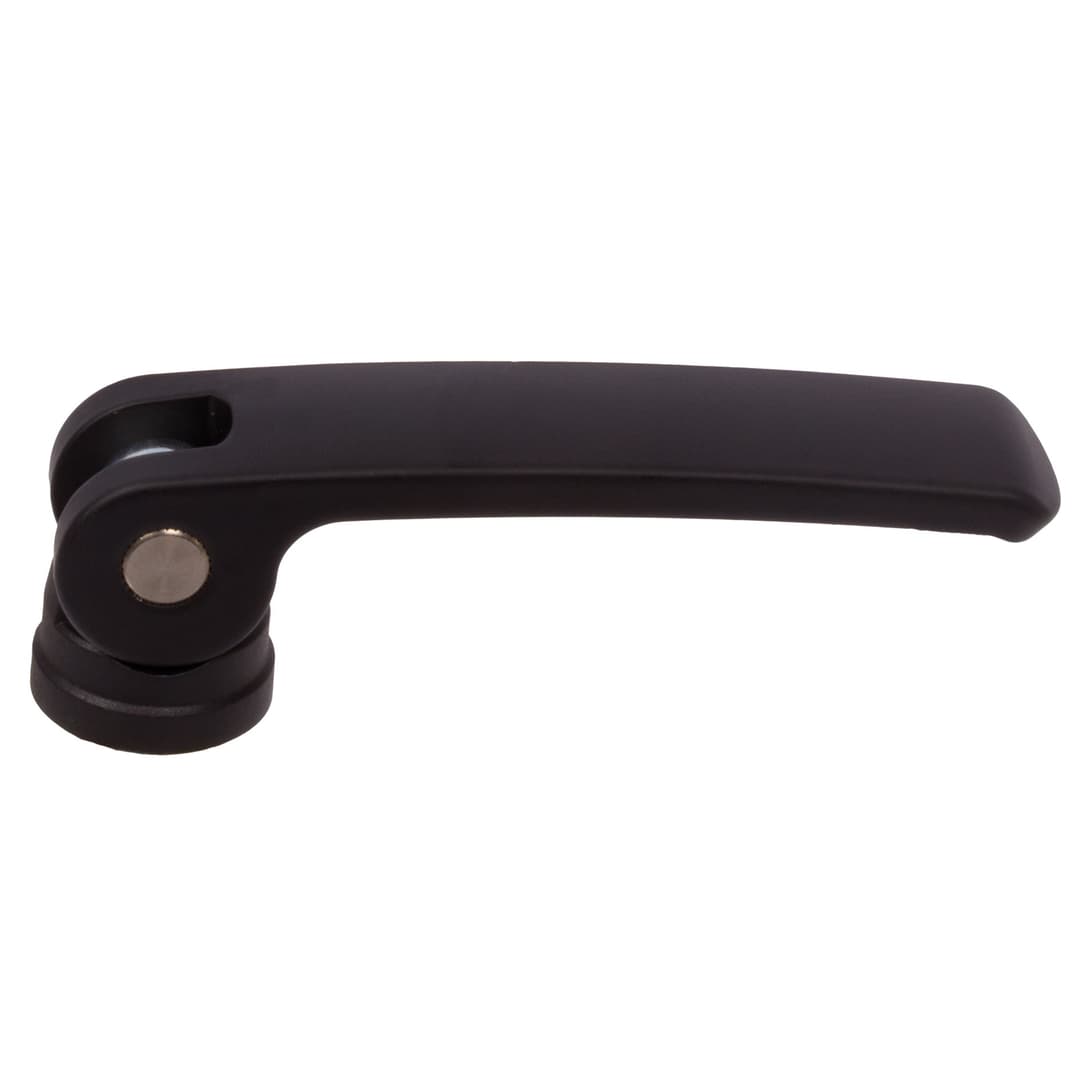

Materials: Lever: Zinc die cast, with wear-resistant epoxy resin coating, black matt. Support washer: Thermoplast, glass-fibre reinforced, black matt. Non-adjustable support washer. The clamping force can either be set on the lever side by turning the lever, or on the backside by adjusting the nut/knurled nut if present For rapid clamping and loosening by hand. Clamping is made without generating a torque. Clamping force is up to 8 kN.
