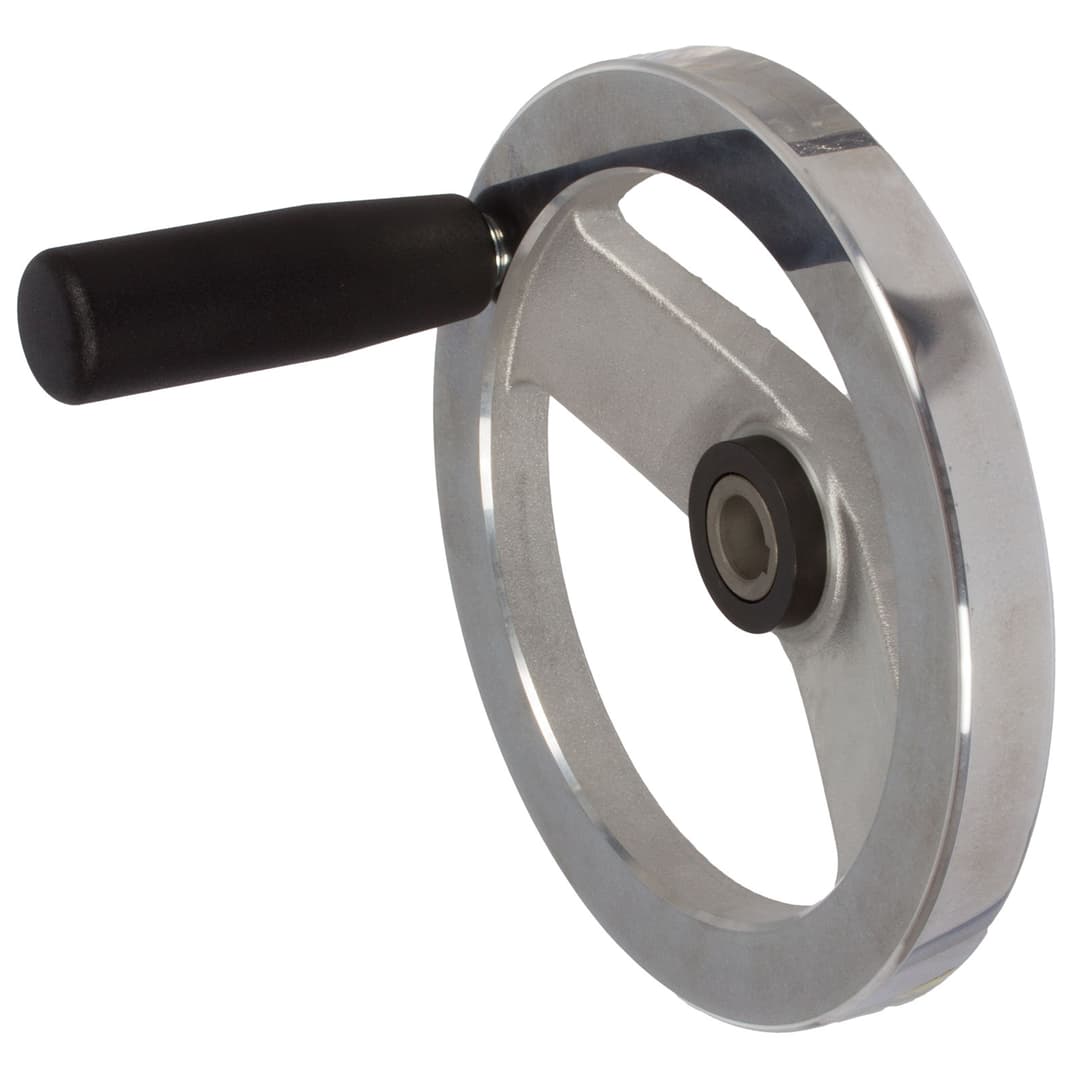

Safety handwheel SHR material aluminium diameter 250mm
Manufacturer part no. 67062500
$348.25≈ 302.43 €
Price summary
Listed by MÄDLER at €302.43. Delivered to France, including shipping, VAT and any customs duty, it comes to about €380.92. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €302.43 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €63.49 |
| Total delivered | €380.92 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2.122 kg |
Other characteristics

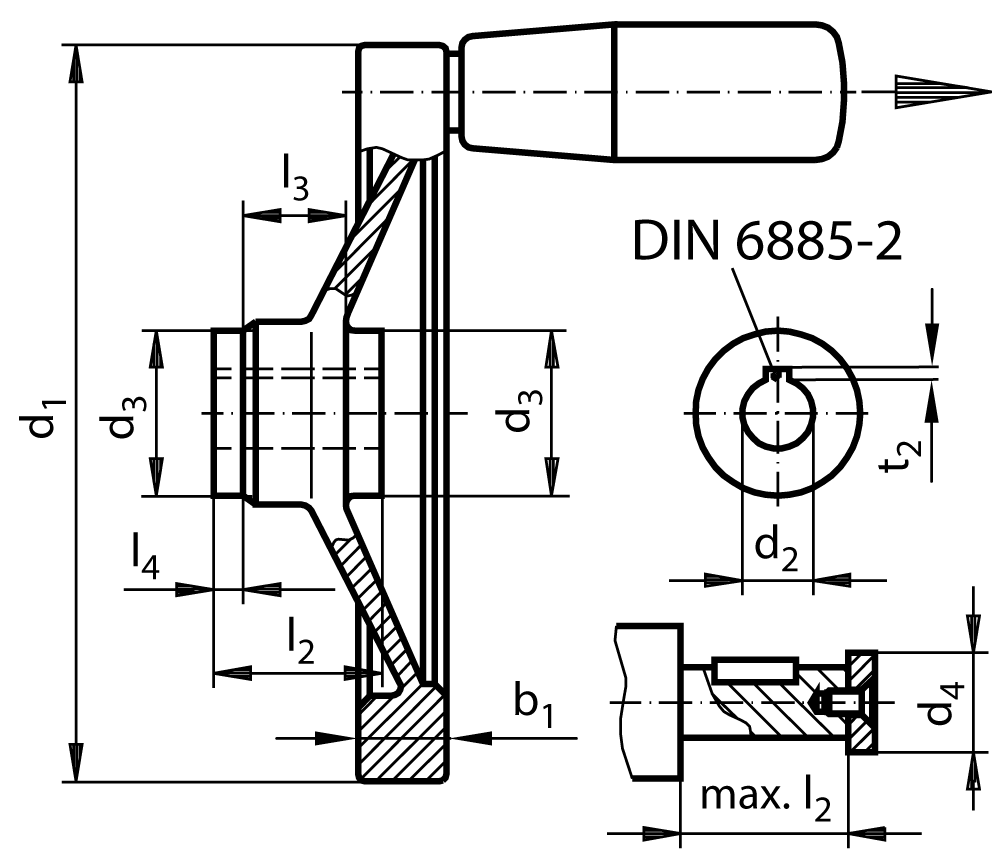

| Bore | 22 mm |
| Depth of keyway | 1.7 mm |
| Handle diameter | 28 mm |
| Hub diameter | 45 mm |
| Hub length | 47.5 mm |
| Length of handle | 93 mm |
| Outer diameter | 250 mm |
| Wheel width | 23 mm |
| Material | Aluminum |
| Surface | Polished |
Description
Material: Aluminium, polished. Coupling attachment assembled. Can only be supplied with revolving, cylindrical handle made from plastic with threaded steel bolt and with hub keyway. According to safety regulations, handwheels must be mounted on the shaft in such a way that they do not rotate along with the machine drive. Safety handwheels comply with this regulation. Procedure: Wheel disengaged if not used. By axial displacement of the wheel (pulling) the two serrated wheel rims are engaged. The wheel is now positively keyed to the shaft. When the wheel is released, it automatically disengages. The coupling elements are assembled together in an enclosed unit. Coupling attachment made from steel, nitrided, bearing surface ground and PTFE coated, for minimal friction between bearing surfaces and high wear resistance. An oil hole is provided, which serves to connected to a pressure oiler in the wheel hub. Frequent lubrication is an important precondition in guaranteeing the correct functioning of the plain-bearing coupling attachment. The range of application of these handwheels is limited to low shaft speeds, or to higher speeds of only short duration (e.g. feed screws for milling machine table with rapid feed). The coupling attachments can also be supplied separately, to be mounted with existing handwheels. Prices on request. We assume no liability for any consequential damage.
