MÄDLERMÄDLER· Mechanics & transmission

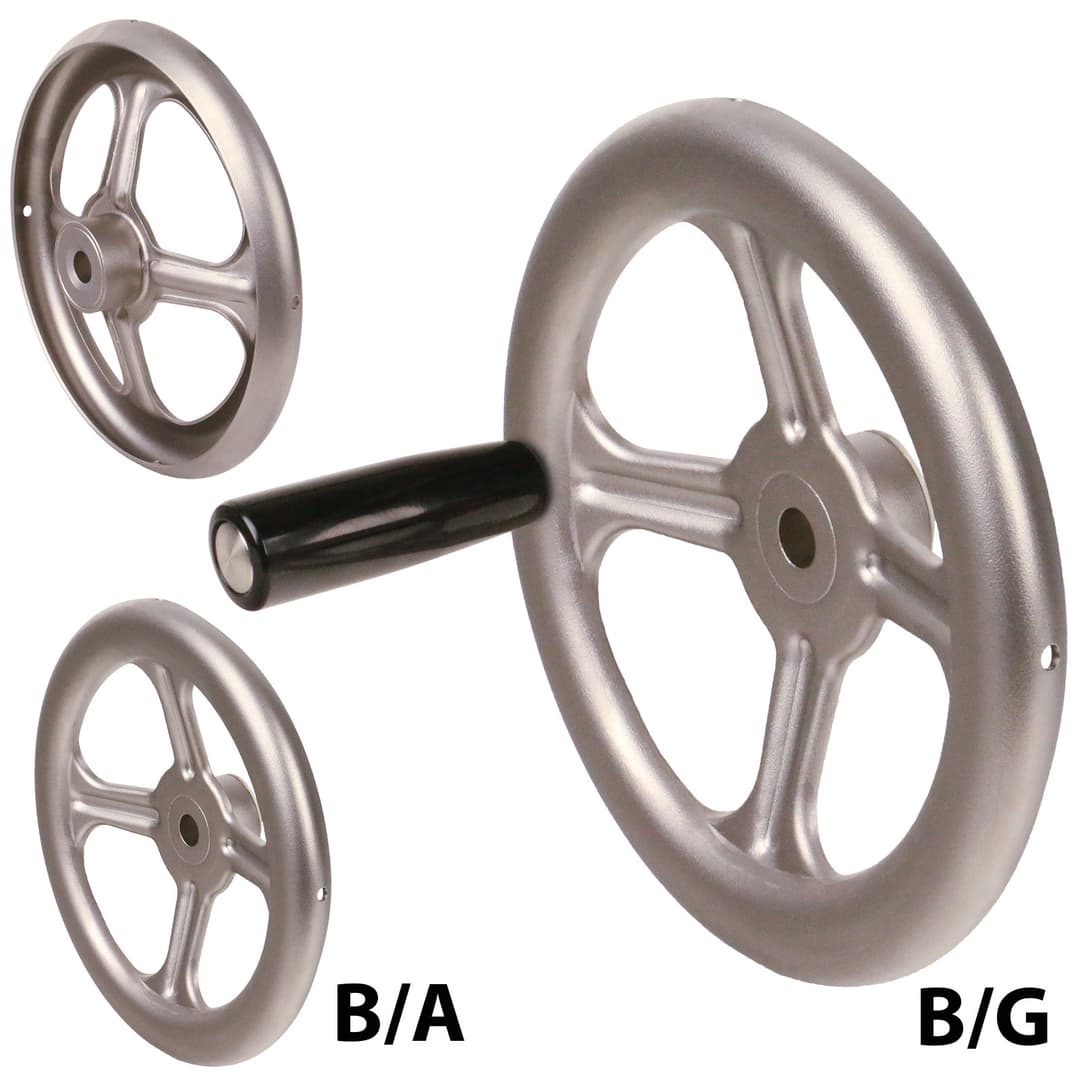

Spoked handwheel stainless steel 1.4404 (AISI 316L) version B/G with cylindrical handle diameter 200mm
Manufacturer part no. 67099420
$152.55≈ 132.48 €
Price summary
Listed by MÄDLER at €132.48. Delivered to France, including shipping, VAT and any customs duty, it comes to about €176.98. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €132.48 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €29.50 |
| Total delivered | €176.98 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)

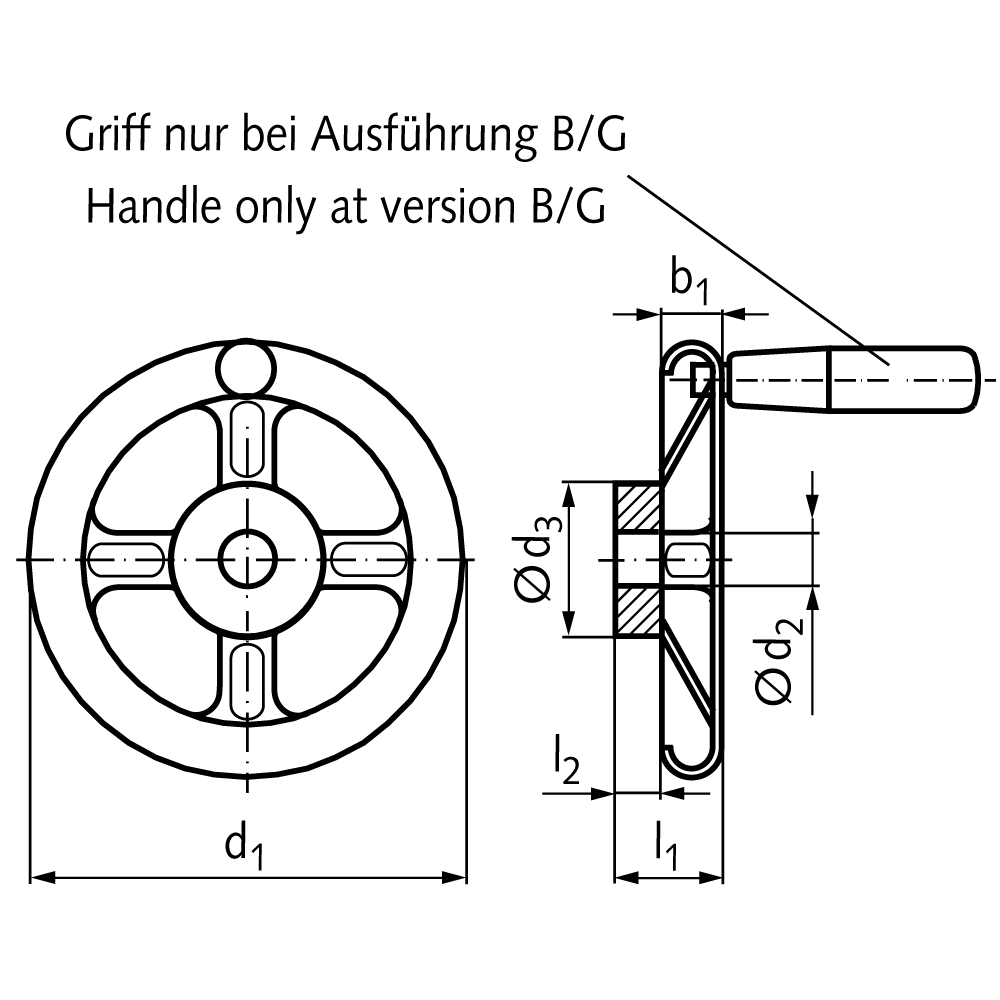

Mechanical
| Weight | 935 g |
Other characteristics
| Bore diameter | 14 mm |
| Hub diameter | 40 mm |
| Hub length | 24 mm |
| No of spokes | 4 |
| Outer diameter | 200 mm |
| Total length of wheel | 44 mm |
| Wall thickness | 2.5 mm |
| Wheel width | 22 mm |
| Handle diameter x length of handle | 26 x 83 mm |
| Material | Stainless steel (304) |
| Surface | Matt finish |
| Version | B/G |
Description
Material: Wheel body: Stainless steel sheet 1.4404 (AISI 316L). Hub: Welded on, matt blasted. At version B/G: Handle Duroplast PF31, black, glossy finish. Spindle: Stainless steel 1.4404 (AISI 316L). Hub lengths comply with DIN 950. High mechanical strength, insensitive to blows and impacts. Version B/A: Without thread, without cylindrical handle. Version B/G: With revolving cylindrical handle. Keyway available at extra charge.
