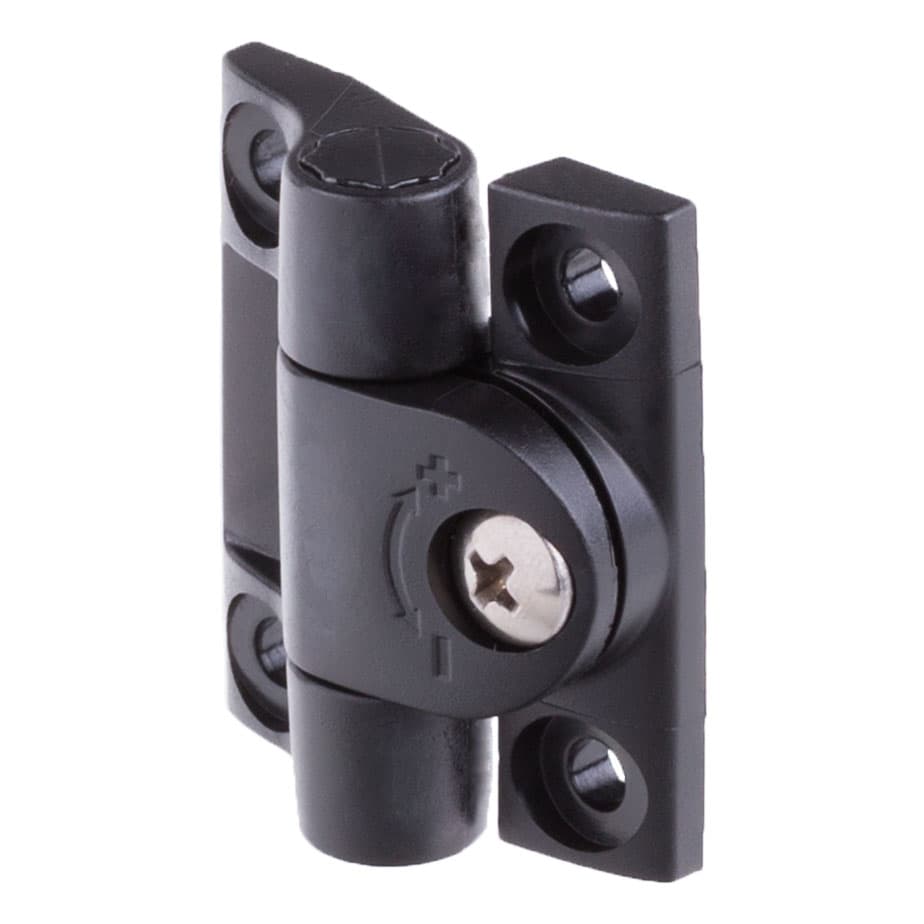

Hinge M233 plastic, with adjustable friction, 57x64mm
Manufacturer part no. 67700282
Manufacturer part no. 67700282
Listed by MÄDLER at €18.59. Delivered to France, including shipping, VAT and any customs duty, it comes to about €40.31. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €18.59 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.72 |
| Total delivered | €40.31 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

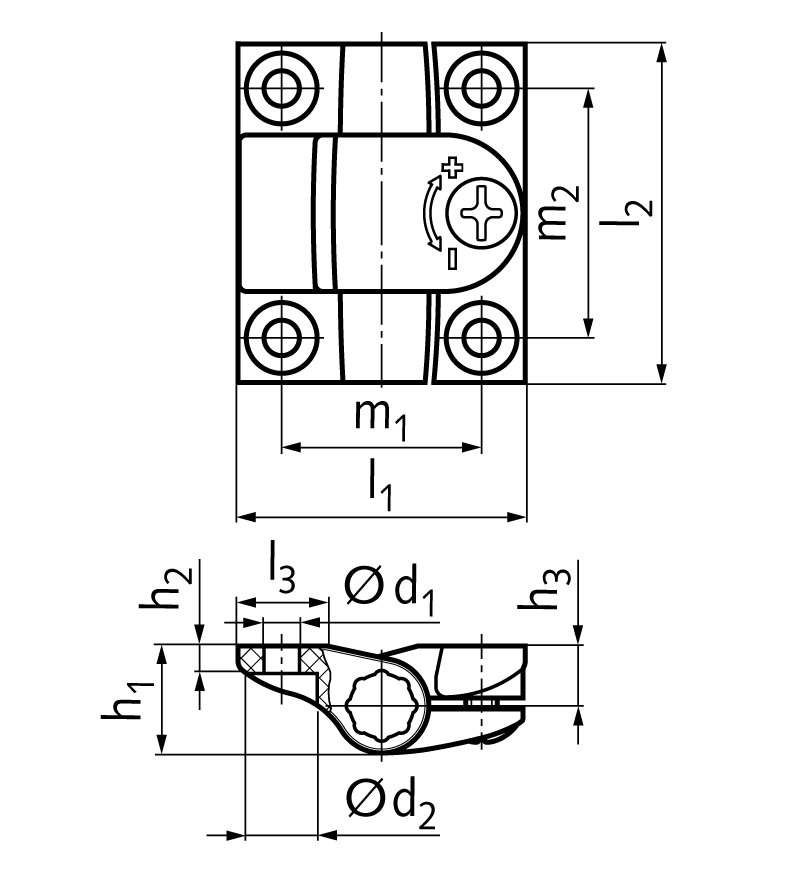

| Weight | 49 g |
| Dimensions | 57x64mm |
| Bore diameter | 6.5 mm |
| Frictional torque | 4 Nm |
| Length | 57 mm |
| Max axial force | 1 500 N |
| Max radial force at opening angle 90 | 1 500 N |
| Tightening torque for screw in d1 | 3 Nm |
| Total height | 21 mm |
| Width | 64 mm |
| Material | Plastic |
| Surface | Blank |
Material: Body: Polyacetal (POM), RAL 9005, semi-matt. Pin: Polycarbonate (PC). Adjusting screw and nut: Stainless steel 1.4305. At these non-detachable hinges, the friction can be varied by an adjusting screw. Endurance tests have shown that the torque has almost not changed even after 60.000 opening / closing cycles (0.8 Nm tightening torque of the set screw). Temperature resistant up to +65°C. Flammability category UL 94-HB. 1) Fastening torque for fitting screw in d1. 2) Max. axial force. 3) Max. radial force at opening angle 90°. These are non-binding guide values without any liability.
