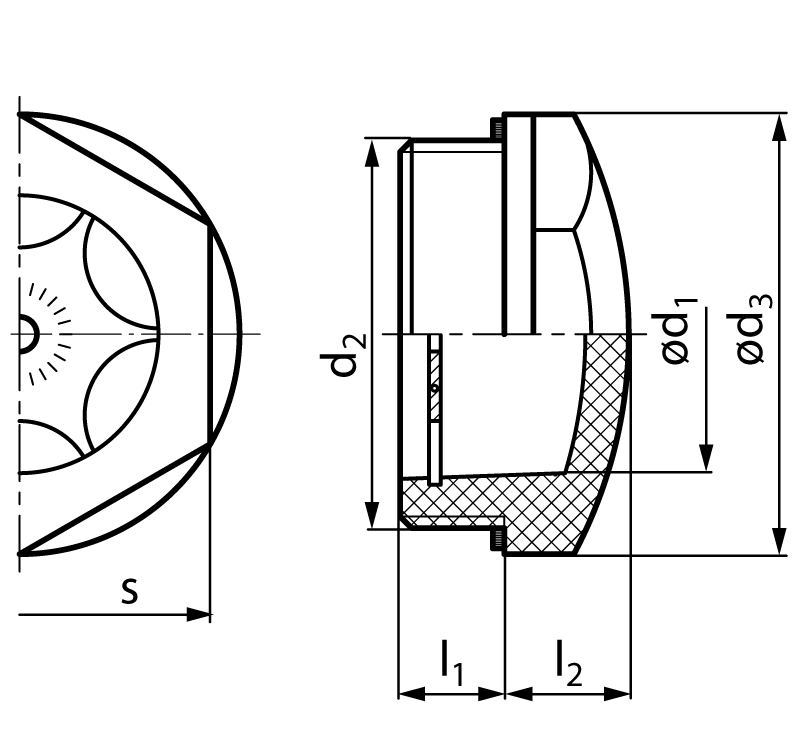

Oil-level sight glass 541 Polyamid PA-T sight window 22mm thread M30x1.5
Manufacturer part no. 68183510
$8.27≈ 7.18 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €7.18 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.44 |
| Total delivered | €26.62 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 6 g |
Other characteristics
| Inner diameter | 22 mm |
| Length after mounting | 10 mm |
| Outer diameter | 35 mm |
| Thread length | 9 mm |
| Wrench size | 30 |
| Material | Polyamide (PA-T) / Aluminum |
| Surface | Anodised |
| Thread size | M 30×1.5 |
| Tightening torque | 8 – 10 Nm |
Description
Materials: Housing: Polyamid (PA-T) non-ageing, highly transparent. Reflector: Aluminium, anodized in natural colour. Seal: Rubber NBR. Temperature resistant up to 100ºC. High strength. Resistant against oil, diesel and solvents. Not resistant against alcohol. At mounting wall thickness below 4mm, a nut is required.
