MÄDLERMÄDLER· Mechanics & transmission

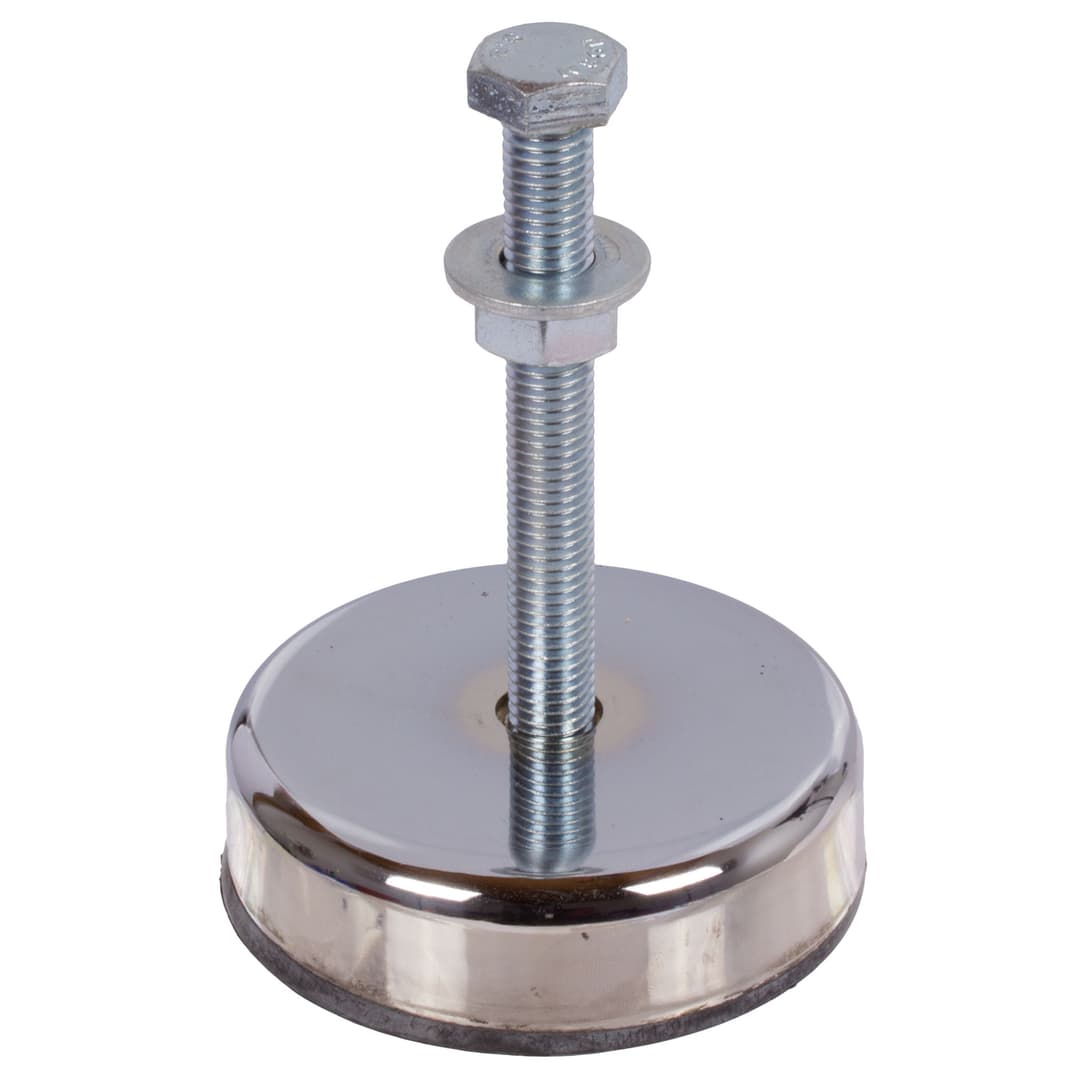

Machine mount KA with chromated steel plate and vacuum profile outer diameter 200mm
Manufacturer part no. 68592100
$107.96≈ 93.44 €
Price summary
Listed by MÄDLER at €93.44. Delivered to France, including shipping, VAT and any customs duty, it comes to about €130.13. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €93.44 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €21.69 |
| Total delivered | €130.13 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)

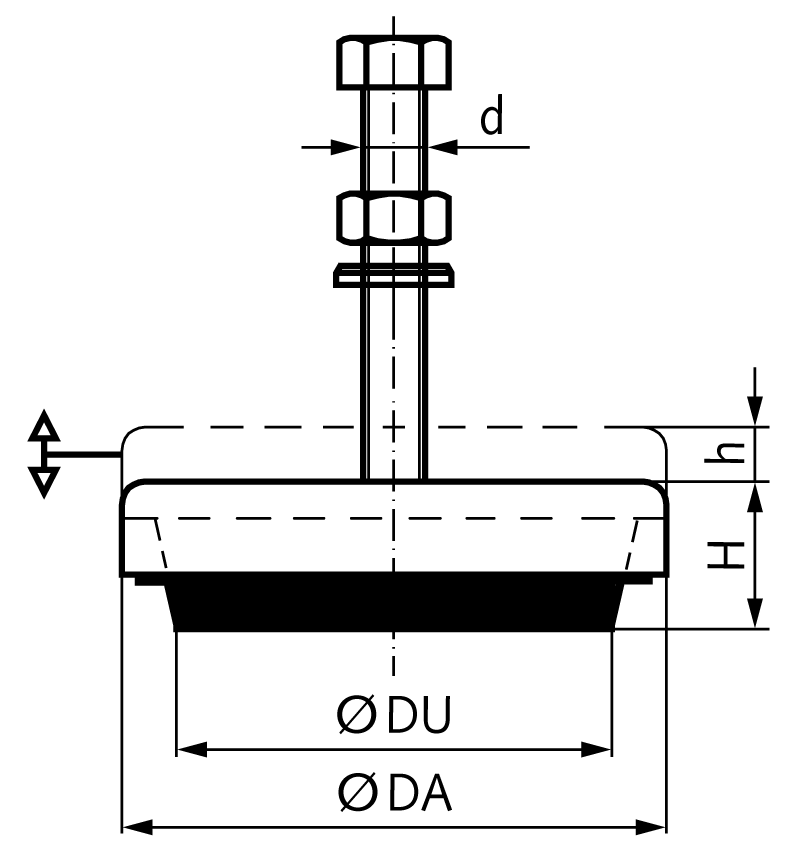

Mechanical
| Weight | 4.9 kg |
Other characteristics
| Height | 45 mm |
| Levelling | 15 mm |
| Outer diameter | 200 mm |
| Thread length | 120 mm |
| Material | Steel / NBR |
| Size | KA_030 |
| Surface | Chrome-plated |
| Thread size | M 20×1.5 mm |
Description
Material: Elastomer: NBR (perbunan) 70° Shore, oil resistant. Case: Steel, chromated. Machine mount with vacuum profile, height adjustable without need for bolting down. For a first, rough calculation: Overall weight to be supported / Number of mounting points = Load per machine mount
