MÄDLERMÄDLER· Pneumatic Elements

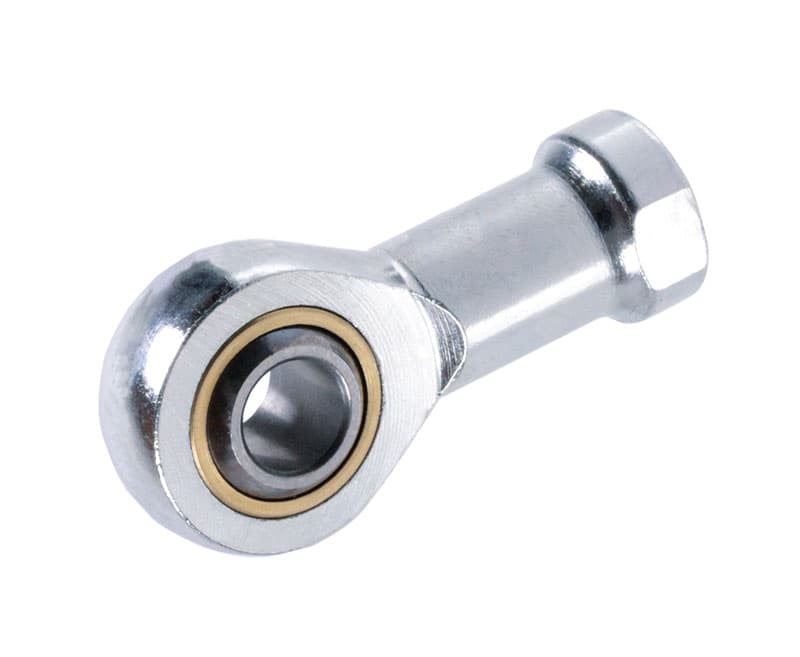

Rod end with ball joint for cylinder diameter 20mm thread M8
Manufacturer part no. 81000520
$25.76≈ 22.37 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €22.37 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.47 |
| Total delivered | €44.84 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

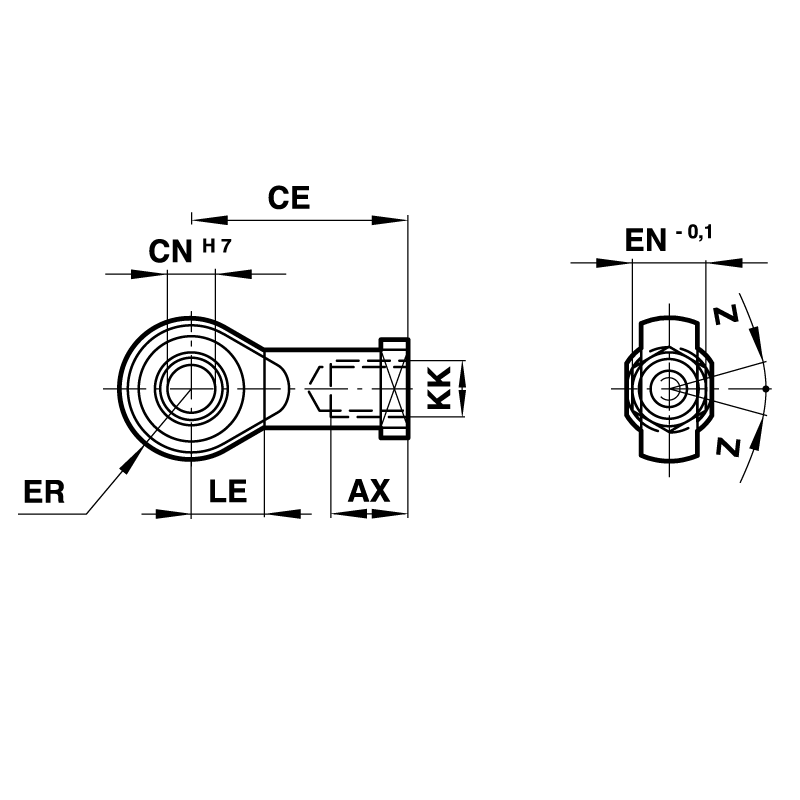

Specifications (automatically extracted)
Mechanical
| Weight | 50 g |
Other characteristics
| Bore diameter | 8 mm |
| Cylinder diameter | 20 mm |
| Thread length | 16 mm |
| Material | Steel / Brass |
| Pivoting angle | 5° ° |
| Surface | Zinc-plated |
| Thread size | M 8 |
Description
Materials: Housing: Brass. Mounting: Steel, zinc-plated. Inner ring: Roller bearing steel, hardened. Mounting element at the piston rod according to DIN ISO 8139 / CETOP RP 103 P.
