MÄDLERMÄDLER· Pneumatic Elements

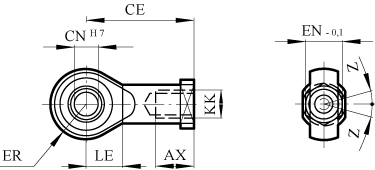

Rod end with ball joint for cylinder diameter 40mm thread M12x1,25
Manufacturer part no. 81000540
$50.01≈ 43.43 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €43.43 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.69 |
| Total delivered | €70.12 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 130 g |
Other characteristics
| Bore diameter | 12 mm |
| Cylinder diameter | 40 mm |
| Thread length | 22 mm |
| Material | Steel / Brass |
| Pivoting angle | 13° ° |
| Surface | Zinc-plated |
| Thread size | M12x1.25 |
Description
Materials: Mounting: Steel, zinc plated. Inner ring: Bearing steel, hardened. Outer ring: Brass. Mounting element at the piston rod.
