MÄDLERMÄDLER· Pneumatic Elements

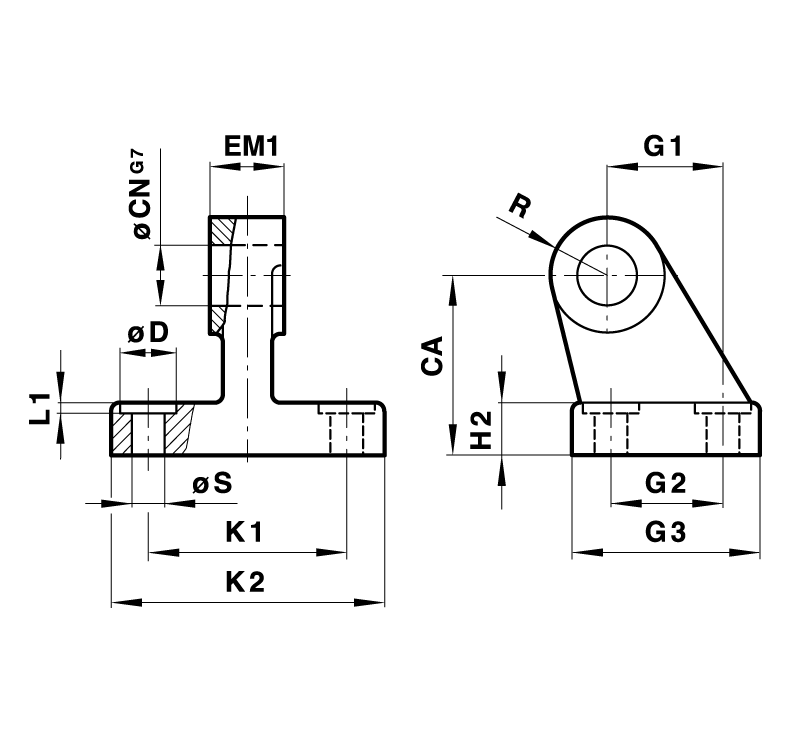

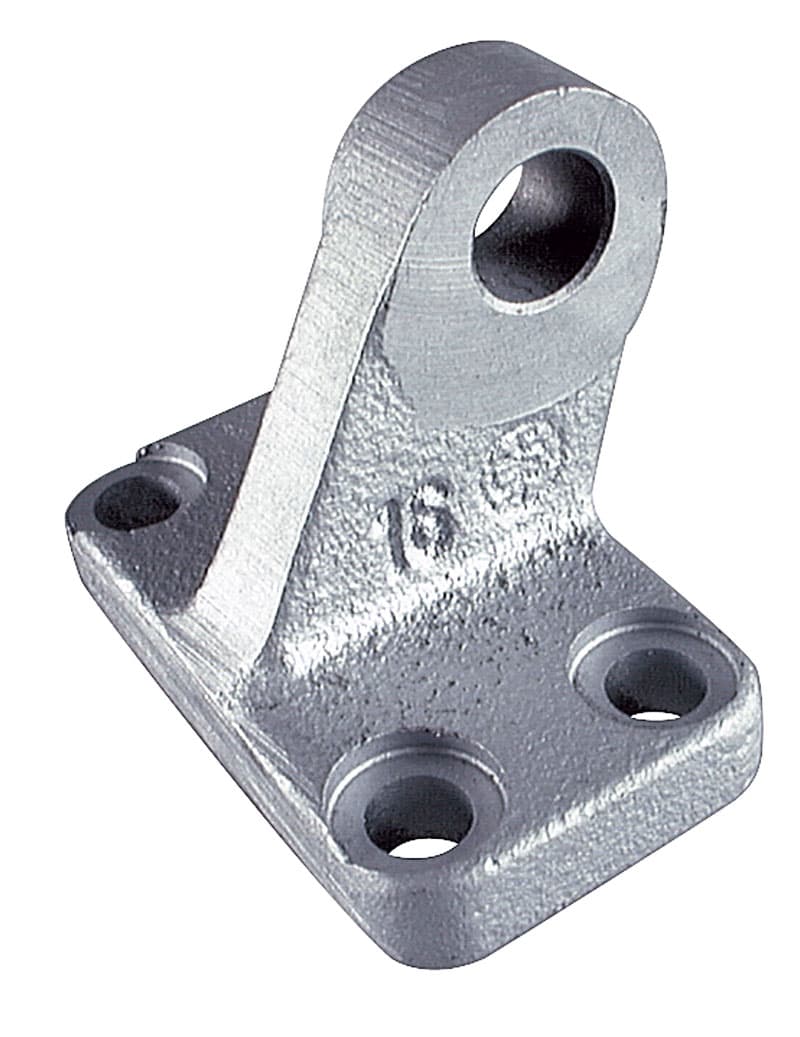

Bracket hinge for clevis mounting, rigid, narrow version for cylinder diameter 32mm
Manufacturer part no. 81000932
$50.52≈ 43.87 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €43.87 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.77 |
| Total delivered | €70.64 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 115 g |
Other characteristics
| Bore diameter | 10 mm |
| Cylinder diameter | 32 mm |
| Length of mounting surface | 31 mm |
| Width of mounting surface | 51 mm |
| Material | Grey cast iron |
| Pivoting angle | 13° ° |
| Surface | Varnished |
Description
Material: Grey cast iron, coated. Mating Piece for Clevis Mounting.
