MÄDLERMÄDLER· Pneumatic Elements

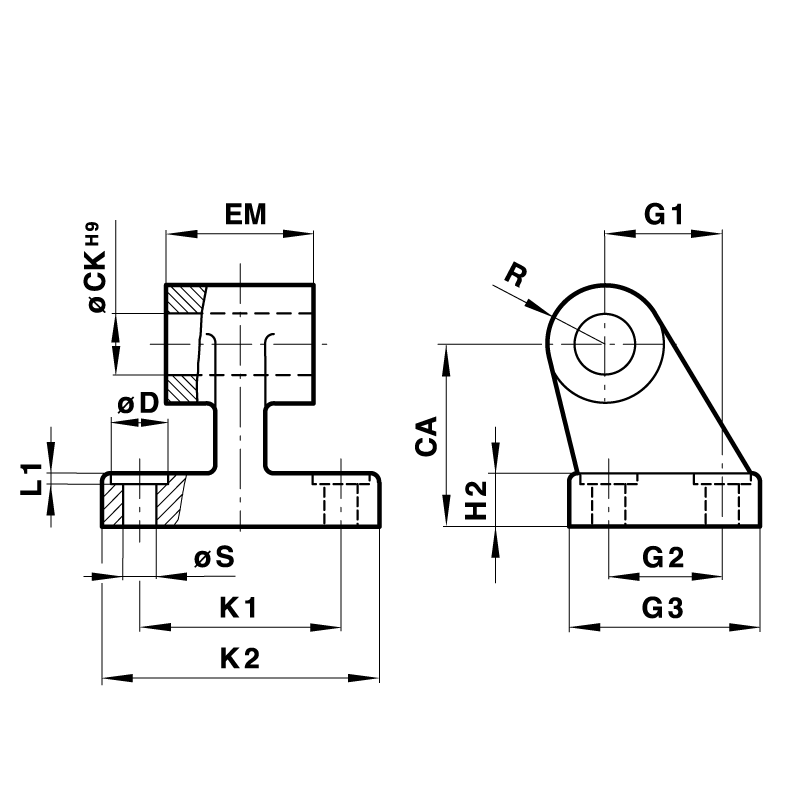

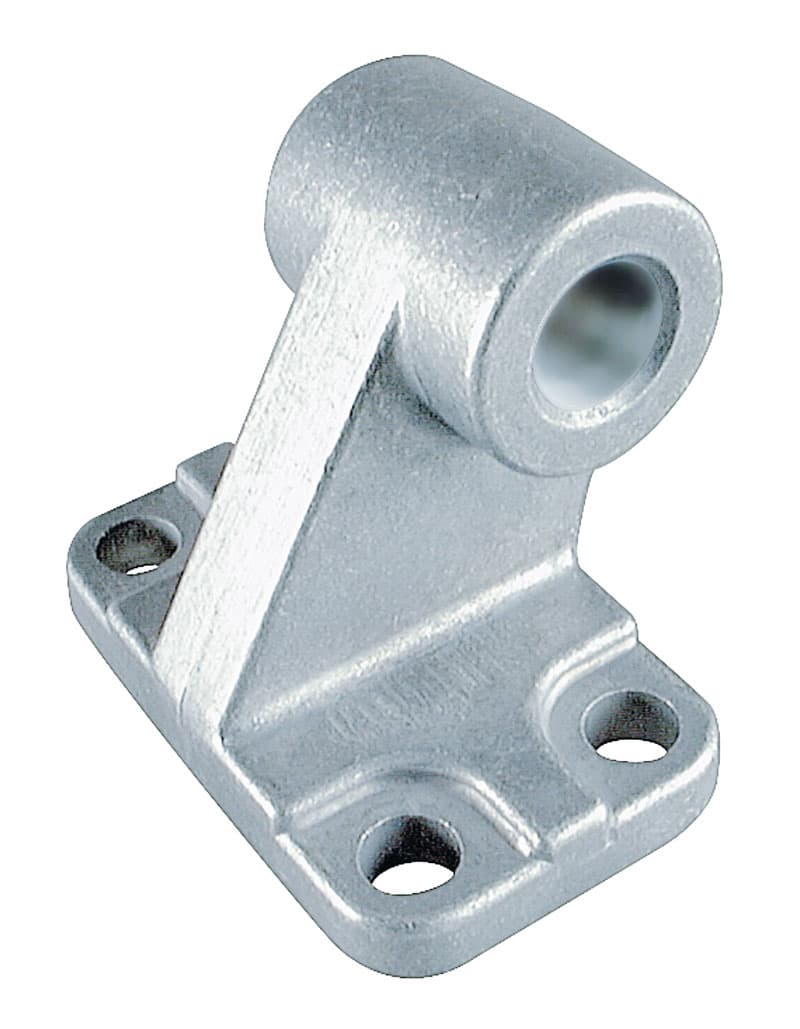

Bracket hinge for clevis mounting, rigid, wide version for cylinder diameter 40mm
Manufacturer part no. 81001040
$40.02≈ 34.75 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €34.75 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.95 |
| Total delivered | €59.70 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 200 g |
Other characteristics
| Bore diameter | 12 mm |
| Cylinder diameter | 40 mm |
| Length of mounting surface | 35 mm |
| Width of mounting surface | 54 mm |
| Material | Aluminum |
| Pivoting angle | 13° ° |
| Surface | Blank |
Description
Material: Aluminium die-cast. Mating Piece for Clevis Mounting.
