MÄDLERMÄDLER· Pneumatic Elements

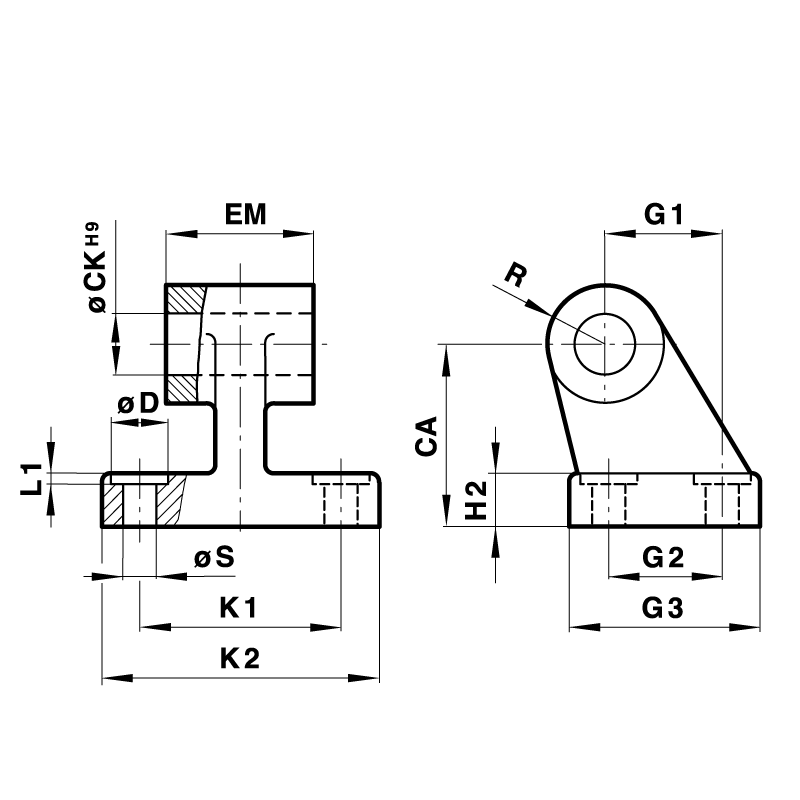

Bracket hinge for clevis mounting, rigid, wide version for cylinder diameter 80mm
Manufacturer part no. 81001080
$76.54≈ 66.47 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €66.47 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €16.29 |
| Total delivered | €97.76 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 750 g |
Other characteristics
| Bore diameter | 16 mm |
| Cylinder diameter | 80 mm |
| Length of mounting surface | 60 mm |
| Width of mounting surface | 86 mm |
| Material | Aluminum |
| Pivoting angle | 15° ° |
| Surface | Blank |
Description
Material: Aluminium die-cast. Mating Piece for Clevis Mounting.
