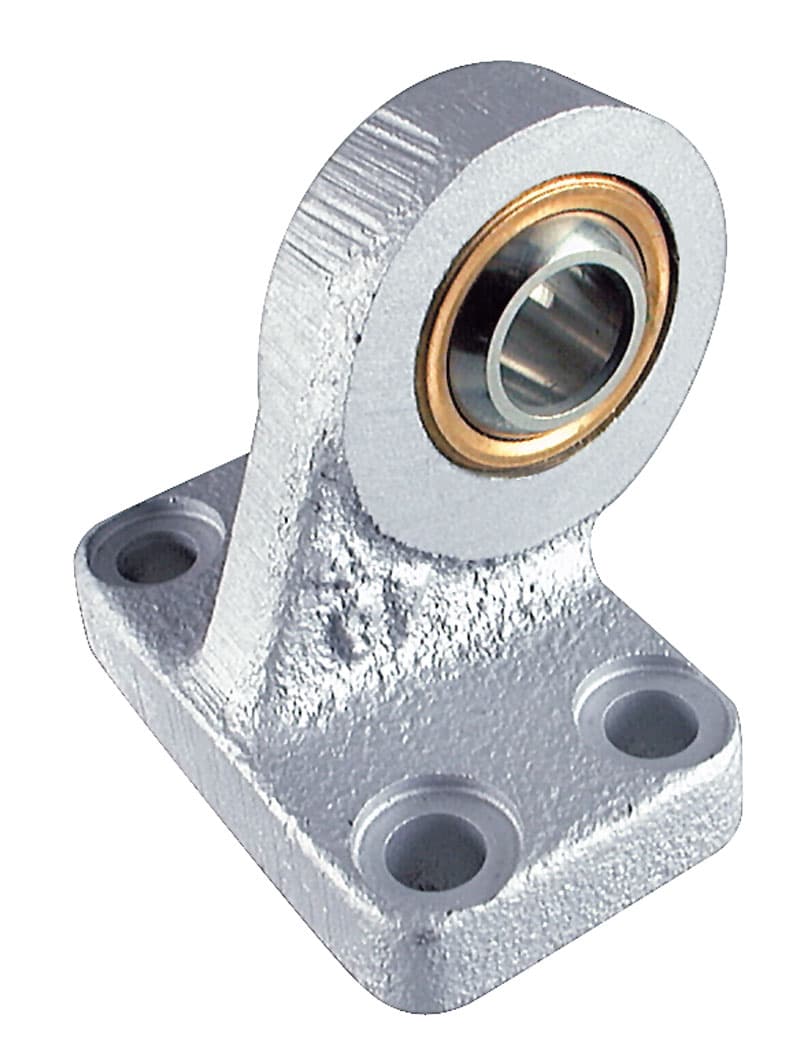

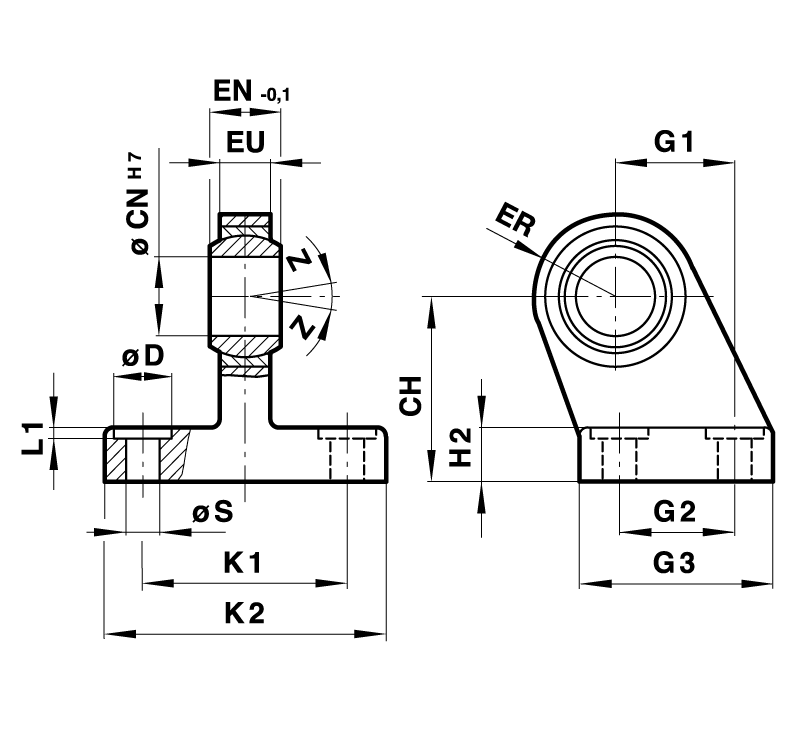

Bracket hinge for clevis mounting with spherical bearing for cylinder diameter 50mm
Manufacturer part no. 81001150
$55.02≈ 48.45 €
Price summary
Listed by MÄDLER at €48.45. Delivered to France, including shipping, VAT and any customs duty, it comes to about €76.14. Prices last checked on 2026-10-01.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €48.45 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.69 |
| Total delivered | €76.14 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 460 g |
Other characteristics
| Bore diameter | 16 mm |
| Cylinder diameter | 50 mm |
| Height of mounting surface | 12 mm |
| Length of mounting surface | 45 mm |
| Width of mounting surface | 65 mm |
| Material | Grey cast iron |
| Pivoting angle | 13° ° |
| Surface | Varnished |
Description
Materials: Bracket hinge: grey cast iron, zinc-plated. Inner ring: Bearing steel, hardened. Outer ring: Steel. Mating Piece for Clevis Mounting.
