MÄDLERMÄDLER· Pneumatic Elements

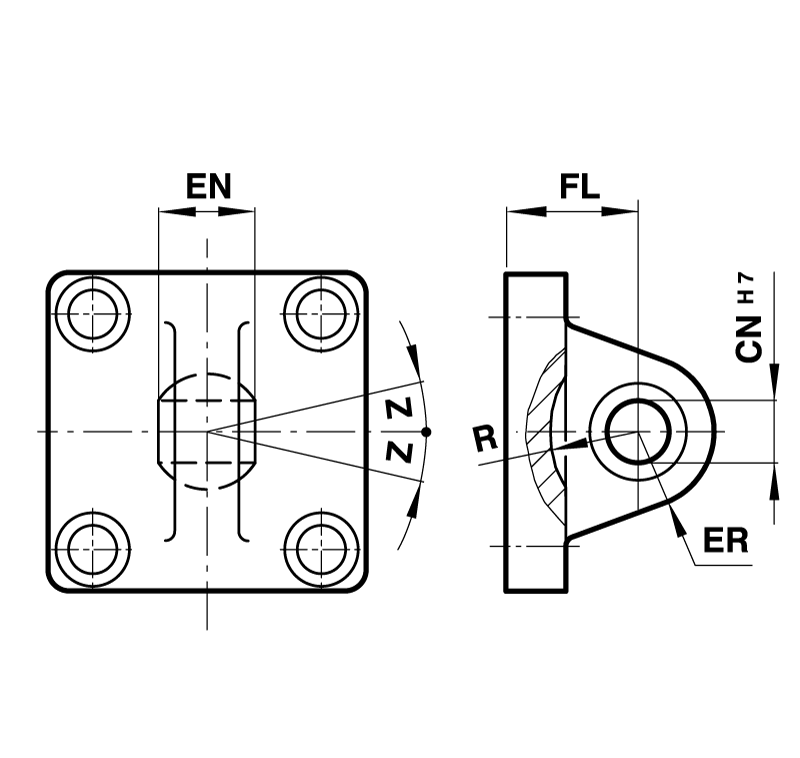

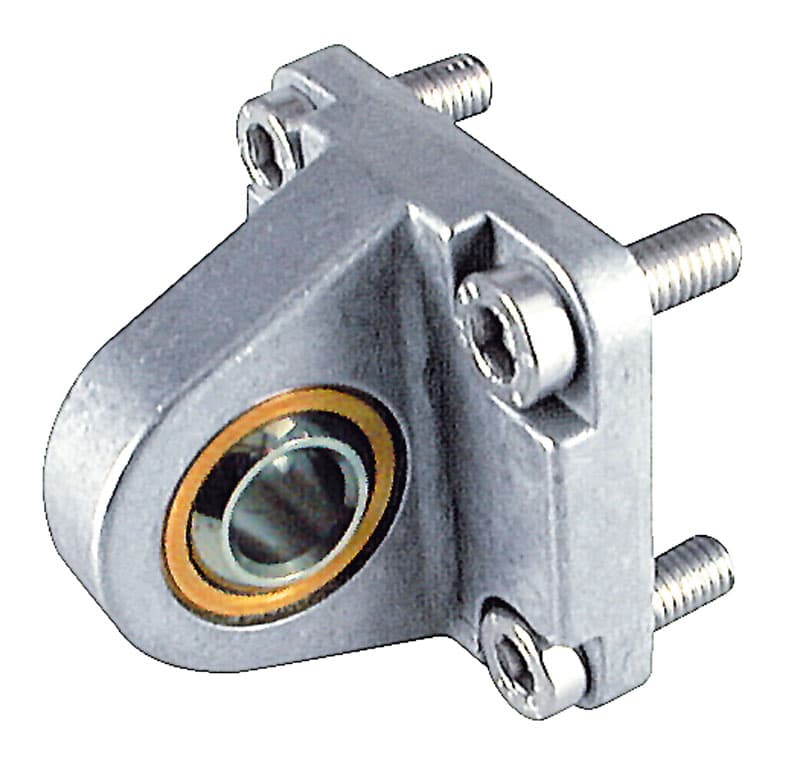

Universal rear eye with ball joint for cylinder diameter 80mm
Manufacturer part no. 81001280
$90.24≈ 78.37 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €78.37 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €18.67 |
| Total delivered | €112.04 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 900 g |
Other characteristics
| Bore diameter | 20 mm |
| Cylinder diameter | 80 mm |
| Material | Aluminum / Steel |
| Pivoting angle | 15° ° |
| Surface | Blank |
Description
Materials: Mounting: Aluminium die-cast. Screws: Steel, zinc plated. Inner Ring: Bearing Steel, hardened. Outer Ring: Steel. Mounting element at the end cover.
