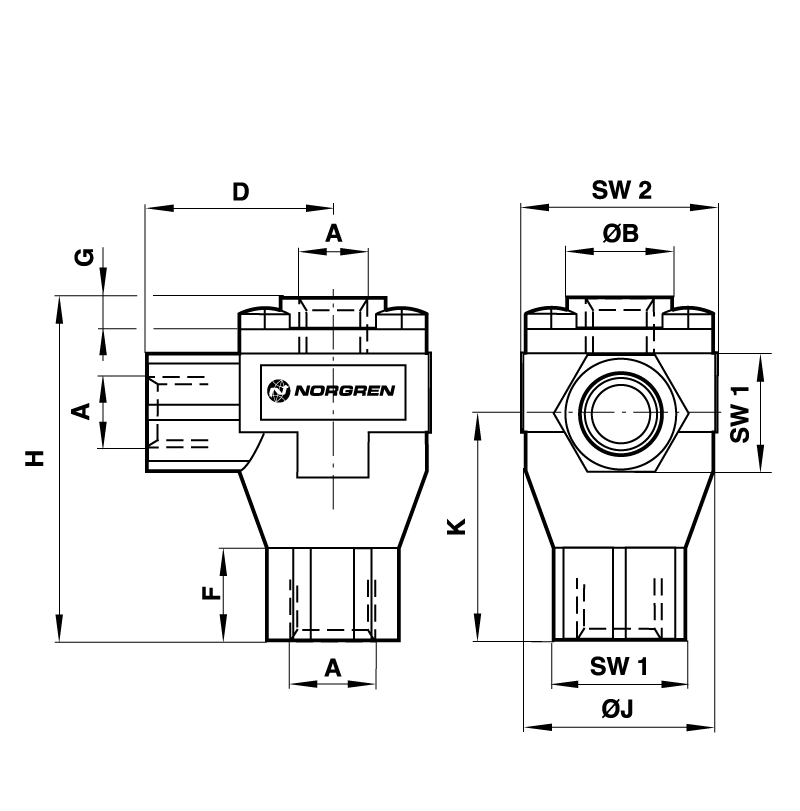

Quick exhaust valve thread G1/2
Manufacturer part no. 86554800
$96.18≈ 85.68 €
Price summary
Listed by MÄDLER at €85.68. Delivered to France, including shipping, VAT and any customs duty, it comes to about €120.82. Prices last checked on 2026-10-03.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €85.68 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €20.14 |
| Total delivered | €120.82 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 190 g |
Other characteristics
| Distance from axis to longer side | 48 mm |
| Distance from axis to shorter side | 40 mm |
| Kv value 1 to 2 | 6.14 |
| Kv value 2 to 3 | 6.84 |
| Length of connection side | 15.5 mm |
| Length of overhang | 4 mm |
| Middle diameter | 46 mm |
| Overhang diameter | 30 mm |
| Total height | 73.5 mm |
| Wrench size of connection side | 30 mm |
| Wrench size of housing | 46 mm |
| Flow 1 to 2 | 554.4 m3/h |
| Flow 2 to 3 | 617.4 m3/h |
Description
Materials: Housing and cover: Aluminium or zinc alloy. Seals: NBR. Medium: Compressed air, filtered, lubricated or non-lubricated. Mode of operation: Poppet valve. Mounting: In-line. Operating pressure: 0.5 to 10 bar. Operating temperature: 80°C max.. – enables air to be dumped quickly from air reservoirs and cylinders – allows higher cylinder speeds to be achieved.
