MÄDLERMÄDLER· Cables & connectors

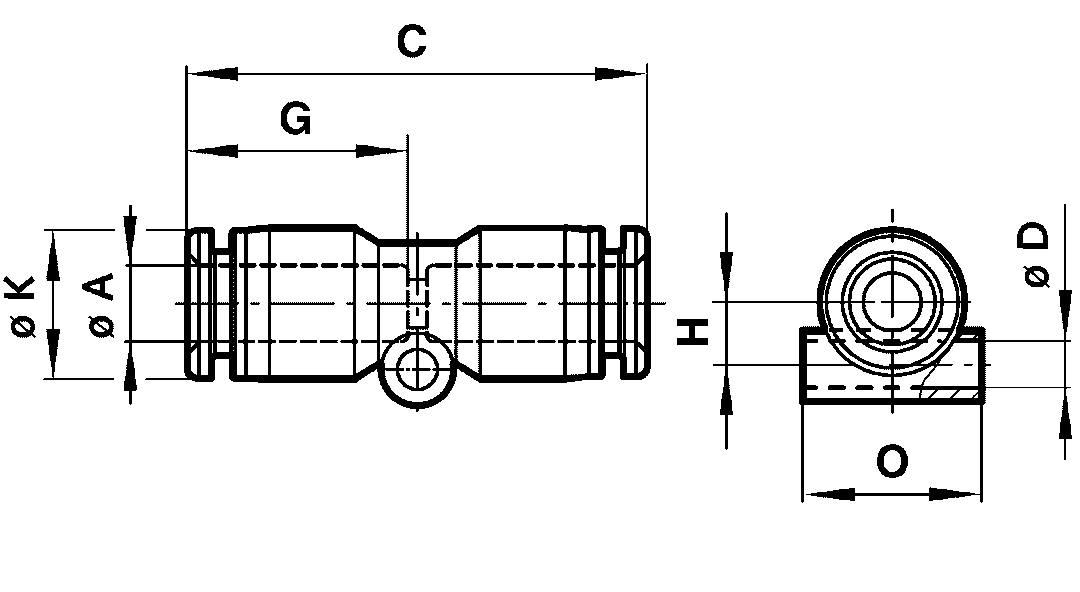

Straight connector tube outer diameter 6mm
Manufacturer part no. 86610600
$4.03≈ 3.49 €
Price summary
Listed by MÄDLER at €3.49. Delivered to France, including shipping, VAT and any customs duty, it comes to about €22.19. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €3.49 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.70 |
| Total delivered | €22.19 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 7.3 g |
Other characteristics
| Bore diameter | 3.3 mm |
| Hose diameter | 6 mm |
| Length | 37 mm |
| Outer diameter | 12 mm |
| Width | 12.5 mm |
| Material | Plastic (PBT) |
| Surface | Blank |
Description
Material: Body: Plastic PBT. • Operating pressure: max. 10 bar. • Vacuum: max. -1 bar.
