MÄDLERMÄDLER· Cables & connectors

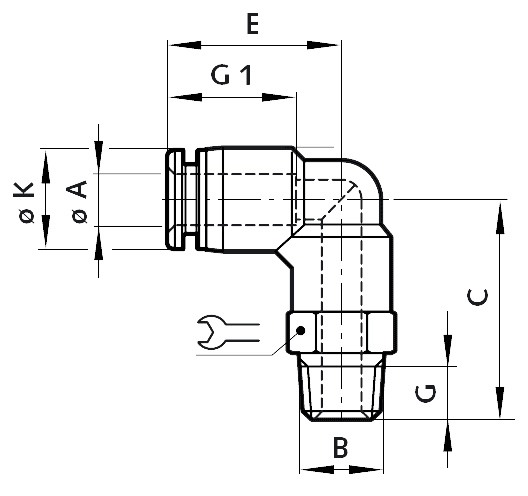

Swivel elbow adaptor tube outer diameter 6mm, thread R1/8
Manufacturer part no. 86640618
$3.51≈ 3.04 €
Price summary
Listed by MÄDLER at €3.04. Delivered to France, including shipping, VAT and any customs duty, it comes to about €21.65. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €3.04 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.61 |
| Total delivered | €21.65 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 17 g |
Other characteristics
| Hose diameter | 6 mm |
| Outer diameter | 12 mm |
| Thread length | 8 mm |
| Wrench size | 12 mm |
| Material | Plastic / Brass |
| Surface | Nickel-plated |
| Thread size | R 1/8″ |
Description
Material: Body: Plastic PBT. Thread: Brass, nickle-plated. • Operating pressure: max. 10 bar. • Vacuum: max. -1 bar.
