MÄDLERMÄDLER· Pneumatic Elements

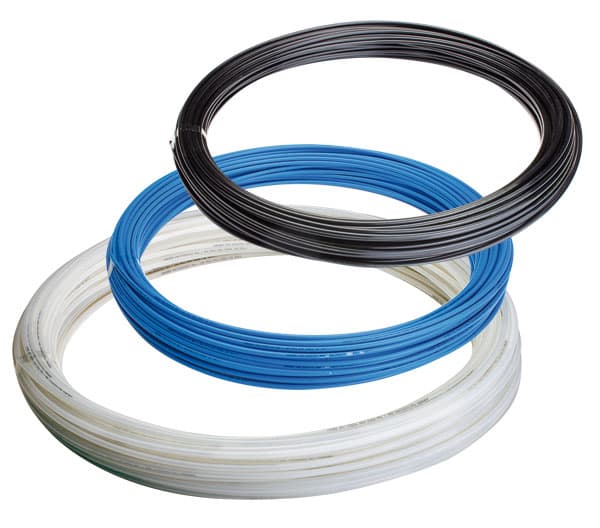

Polyurethane hose PU, color blue outer diameter 10mm inner diameter 7mm
Manufacturer part no. 86991002
$3.66≈ 3.18 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €3.18 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.64 |
| Total delivered | €21.82 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Inner diameter | 7 mm |
| Max operation pressure | 9 bar |
| Min bend radius | 17 mm |
| Outer diameter | 10 mm |
| Color | Blue mm |
| Material | Polyurethane (PU) |
| Surface | Blank |
| Weight | 50 g/m |
Description
Material: Polyurethane. Dimensions and tolerances to DIN 73378. Max. length 100m. Application: Pneumatic-tube for Pneufit-Push-In or Pneufit C connectors. Pu-tubes allow only a lower pressure than Pa-Tubes, but they need a smaller radius. Max. Operating Pressure: The pressures shown in the table are valid for -40°C up to +20°C. At higher temperature note follwing factors: Temperature 30 °C: Factor 0,83. Temperature 40 °C: Factor 0,72. Temperature 50 °C: Factor 0,64. Temperature 60 °C: Factor 0,57 (max. operating temperature). 1 Unit = 1 Meter = 39.37 Inches
