MÄDLERMÄDLER· Pneumatic Elements

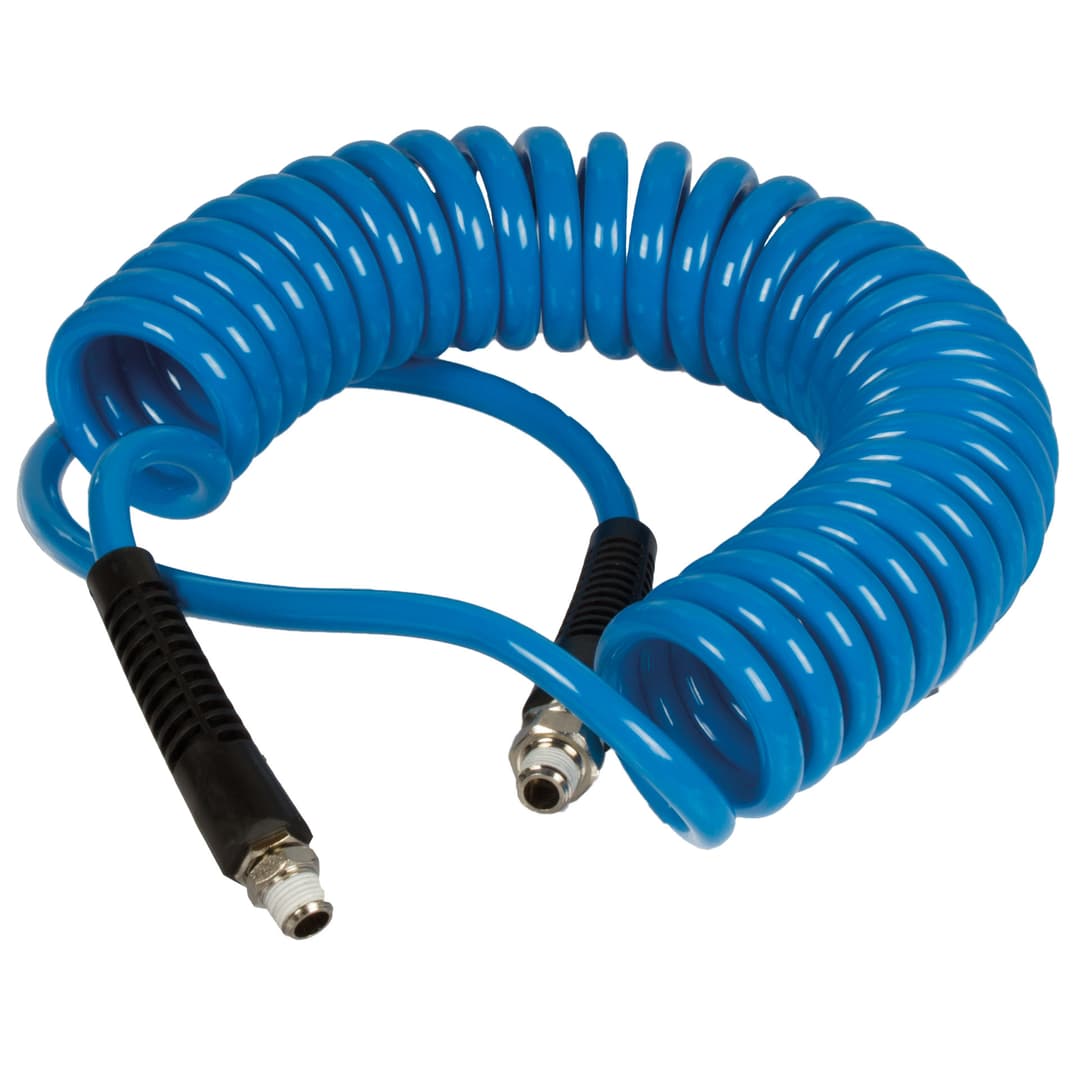

Spiral hose 6,5×10 length 0,63 – 6 mtr
Manufacturer part no. 87010606
$110.68≈ 96.12 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €96.12 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €22.22 |
| Total delivered | €133.34 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 577 g |
Other characteristics
| Diameter coil | 52 mm |
| Max length | 6 m |
| Min length | 0.63 m |
| Fixed connection inch | G 1/4″ |
| Inner diameter x outer diameter | 6.5 x 10 mm |
| Material | Plastic (PU) / Brass |
| Surface | Nickel-plated |
| Swivel connection inch | G 1/4″ |
Description
Material: Polyurethane, flexible and extremely rugged. Fitting made from nickel-plated brass. The hose retracts to its original shape: the coils will not loose their original shape even under most adverse operating conditions. Data of fixed fitting on the supply side: PTFE pre-coated thread PVC coating to protect hose Data of the swivel connection on the side of the compressed-air tool: Swivelling joint with ball bearing Easy swivelling, even under pressure, no overstressing of hose coil.
