Analog Devices Inc./Maxim Integrated TMC2224-LA — STEPPER MOTOR DRIVER IC, STEP/DI
Manufacturer part no. TMC2224-LA
€4.25
In stock — 326 unitslead time 91 d
- Conforme à RoHS 3
Estimated landed cost
| Item | €4.25 |
| Shipping | €18.00 |
| VAT (20%) | €4.45 |
| Total delivered | €26.70 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €4.25 | |
| ≥ 10 | €3.23 | −24 % |
| ≥ 25 | €2.98 | −30 % |
| ≥ 100 | €2.70 | −37 % |
| ≥ 490 | €2.49 | −42 % |
| ≥ 980 | €2.42 | −43 % |
| ≥ 1,470 | €2.39 | −44 % |
| ≥ 2,940 | €2.34 | −45 % |
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current | 1.2 A |
Other characteristics
| Applications | Usage général |
| Boitier | 28-VFQFN plot exposé |
| Boitier fournisseur | 28-QFN (5x5) |
| Configuration de sortie | Demi-pont (2) |
| Fonction | Variateur - entièrement intégré, commande et étage de puissance |
| Interface | SPI, pas/direction, UART |
| Resolution en pas | 1 ~ 1/256 |
| Technologies | MOSFET de puissance |
| Temperature de fonctionnement | -40°C ~ 125°C (TJ) |
| Tension alimentation | 5,5V ~ 36V |
| Tension charge | 5,5V ~ 36V |
| Type de montage | Montage en surface |
| Type de moteur ca cc | CC à balais |
| Type de moteur pas a pas | Bipolaire |
Compliance
| Moisture sensitivity (MSL) | 3 (168 heures) |
Description
MOSFET de puissance Pilote de moteur Bipolaire SPI, pas/direction, UART 28-QFN (5x5)
Cheaper alternatives
Semantically close products available for less — check the specs match your need.
Similar products
DigiKeyIn stock
Analog Devices Inc./Maxim Integrated TMC2208-LA — STEPPER MOTOR DRIVER IC, STEP/DI
€4.23
View at seller ↗
DigiKeyIn stock
Analog Devices Inc./Maxim Integrated TMC2225-SA — STEPPER MOTOR DRIVER IC, STEP/DI
€4.15
View at seller ↗
DigiKeyIn stock
Analog Devices Inc./Maxim Integrated TMC2130-LA — STEPPER MOTOR DRIVER IC, SPI, ST
€6.45
View at seller ↗
DigiKeyIn stock

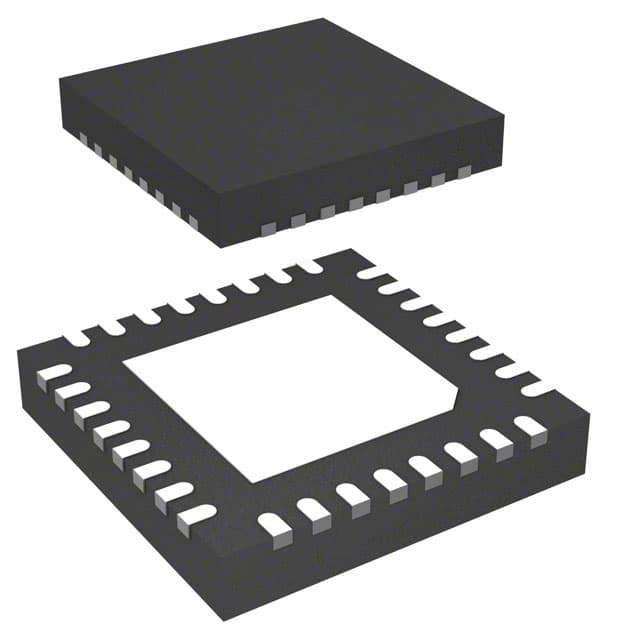

Analog Devices Inc./Maxim Integrated TMC2202-WA — STEPPER MOTOR DRIVER/CONTROLLER
