DigiKeyXP Power· Power supplies — board mount

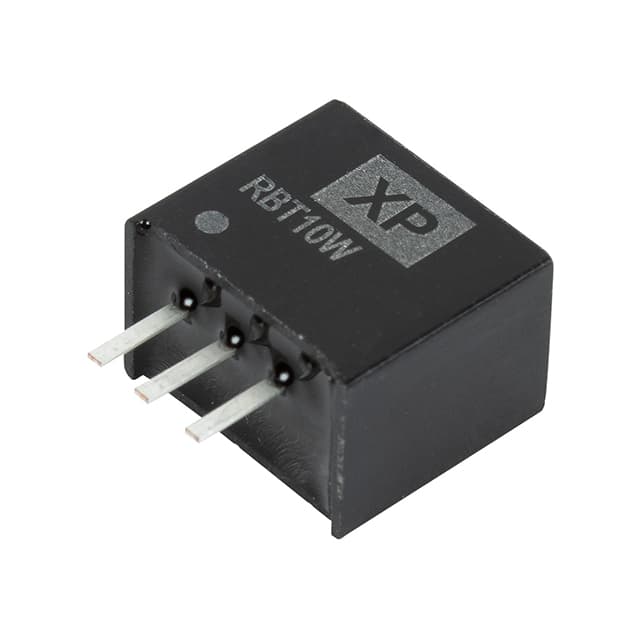

XP Power RBT10W24S05 — DC/DC CONVERTER 5V 5W
Manufacturer part no. RBT10W24S05
€2.96
In stock — 211 unitslead time 98 d
- Conforme à RoHS 3
Estimated landed cost
| Item | €2.96 |
| Shipping | €18.00 |
| VAT (20%) | €4.19 |
| Total delivered | €25.15 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €2.96 | |
| ≥ 5 | €2.88 | −3 % |
| ≥ 10 | €2.79 | −6 % |
| ≥ 25 | €2.67 | −10 % |
| ≥ 100 | €2.49 | −16 % |
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current max. | 1 A |
| Power | 5 W |
| Voltage | 5 V |
Other characteristics
| Nombre de sorties | 1 |
| Rendement | 92 % |
| Tension entree max. | 36 V |
| Tension entree min. | 6.5 V |
| Tension sortie 1 | 5 V |
| Agence d homologation | CE, EN, UKCA |
| Applications | ITE (commercial) |
| Boitier | Module 3-SIP |
| Numero standard | 62368-1 |
| Taille dimension | 0,46po L x 0,30po l x 0,40po H (11,6mm x 7,6mm x 10,2mm) |
| Temperature de fonctionnement | -40°C ~ 90°C (avec détarage) |
| Type | Module PoL non isolé |
| Type de montage | Trou traversant |
Compliance
| Moisture sensitivity (MSL) | 1 (illimité) |
Description
Module PoL non isolé Convertisseurs CC/CC 1 Sortie 5V 1A 6,5V - 36V Entrée
