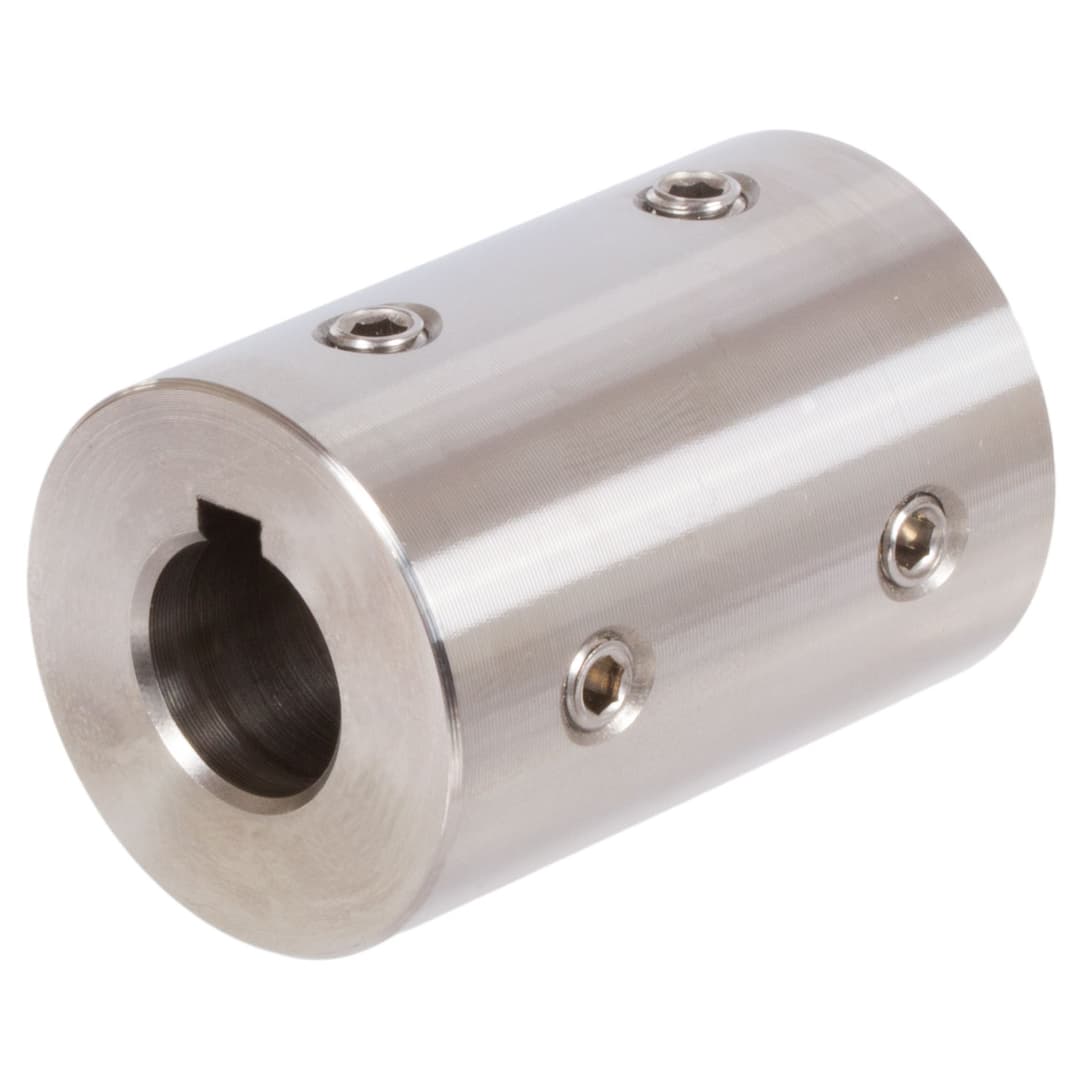

Set-screw coupling TR bore 50mm with keyway stainless steel 1.4305 vs Elastic coupling DXA size 100 max. torque 11000Nm nominal torque 5500Nm outer diameter 220mm overall length 250mm with pilot bore
Set-screw coupling TR bore 50mm with keyway stainless steel 1.4305 and Elastic coupling DXA size 100 max. torque 11000Nm nominal torque 5500Nm outer diameter 220mm overall length 250mm with pilot bore are compared below on the data published by their sellers — price converted to euros, stock, and every specification either seller discloses. On price, Set-screw coupling TR bore 50mm with keyway stainless steel 1.4305 is €369.15 cheaper ($460.61).
| Criterion |  Set-screw coupling TR bore 50mm with keyway stainless steel 1.4305 |  Elastic coupling DXA size 100 max. torque 11000Nm nominal torque 5500Nm outer diameter 220mm overall length 250mm with pilot bore |
|---|---|---|
| Price | $460.61cheapest | $886.43 |
| Seller | MÄDLER | MÄDLER |
| Availability | In stock | In stock |
| Rating | — | — |
| Weight | 3.52 kg | 29.3 kg |
| Bolts din 916 | M 10 | — |
| Bore diameter | 50 mm | — |
| Coupling type | Rigid one-piece stlye | Elastic. angular/transv./long flexible |
| Electrically insulating | No | No |
| Hub diameter | — | 160 mm |
| Material | Stainless steel (303) | Grey cast iron (A48) |
| Max alternating torque | — | 1 700 Nm |
| Max bore diameter | — | 100 mm |
| Max misalignment angle | 0 ° | 0.7 ° |
| Max misalignment axial | 0 mm | 2.4 mm |
| Max misalignment radial | 0 mm | 0.8 mm |
| Max speed | 4 U/min | 3 100 U/min |
| Max torque | 340 Nm | 11 000 Nm |
| Nominal torque | — | 5 500 Nm |
| Outer diameter | 85 mm | 220 mm |
| Pilot hole | — | 58 mm |
| Predecessor partno | — | 60 410 000 |
| Size | — | 100 |
| Spare spider 92 shore partno | — | 60 420 000 |
| Stainless | Yes | No |
| Surface | Blank | Blank |
| Temperature max. | 150 °C | 80 °C |
| Temperature min. | -40 °C | -20 °C |
| Tightening torque fastening screws | 26.4 Nm | — |
| Total length | 124 mm | 250 mm |
| With keyway | Yes | No |
| View at seller ↗ | View at seller ↗ |
Specifications are extracted automatically from seller data — an empty cell means the seller does not publish that value, not that the product lacks it.
Robotitem does not test products. This comparison reports seller-published data only, and ranking never takes affiliate commission into account.
