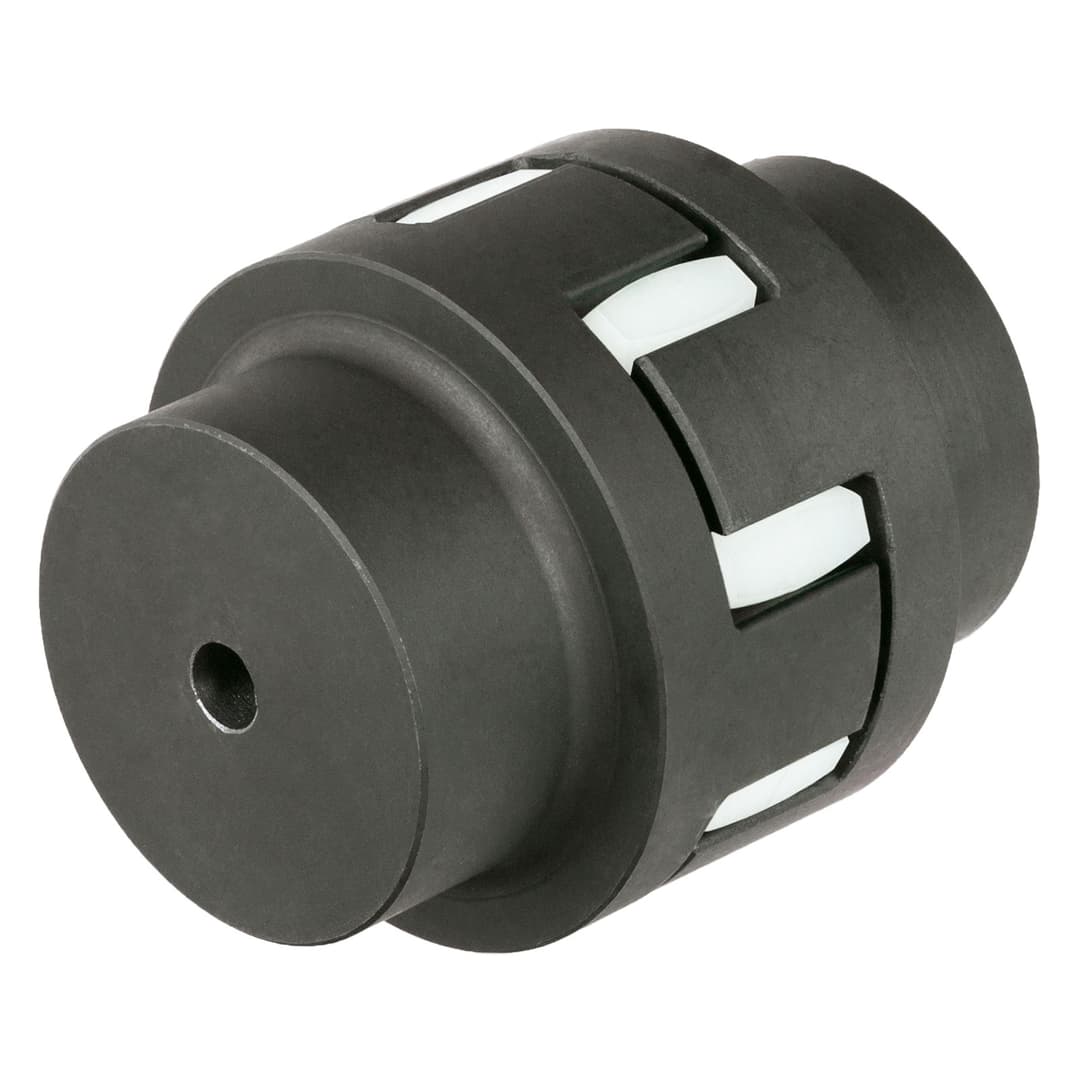

Elastic coupling DXA size 100 max. torque 11000Nm nominal torque 5500Nm outer diameter 220mm overall length 250mm with pilot bore
Manufacturer part no. 60410001
$886.43≈ 789.69 €
Price summary
Listed by MÄDLER at €789.69. Delivered to France, including shipping, VAT and any customs duty, it comes to about €965.63. Prices last checked on 2026-10-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €789.69 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €160.94 |
| Total delivered | €965.63 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 29.3 kg |
Other characteristics
| Hub diameter | 160 mm |
| Max alternating torque | 1 700 Nm |
| Max bore diameter | 100 mm |
| Max misalignment angle | 0.7 ° |
| Max misalignment axial | 2.4 mm |
| Max misalignment radial | 0.8 mm |
| Max speed | 3 100 U/min |
| Max torque | 11 000 Nm |
| Nominal torque | 5 500 Nm |
| Outer diameter | 220 mm |
| Pilot hole | 58 mm |
| Predecessor partno | 60 410 000 |
| Size | 100 |
Description

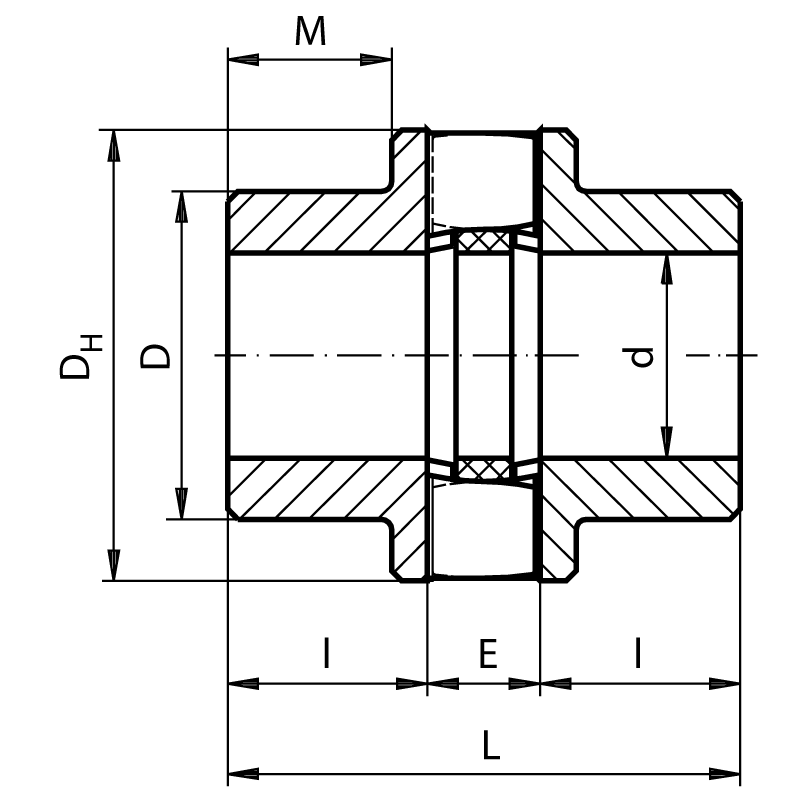

Material: Up to size 28: Hubs made from Aluminium. From size 32: Hubs made from grey cast iron GG25. Insert made from Polyurethane, shore hardness 92º A, white. Insertable elastic coupling, for high torques. Not backlash-free. Does not transfer any axial forces. Robust component for relatively large shaft offset. Particularly suitable for large radial offset. Improved version. Special tooth profile and machined claws result in longer lifetime. Temperature range: -20ºC to +80ºC. Couplings are available pre-drilled ex stock.Customized bores and feather-key grooves available at extra charge. 1) At mounting, the distance between the hubs must be measure E to allow the max. shaft misalignment.
