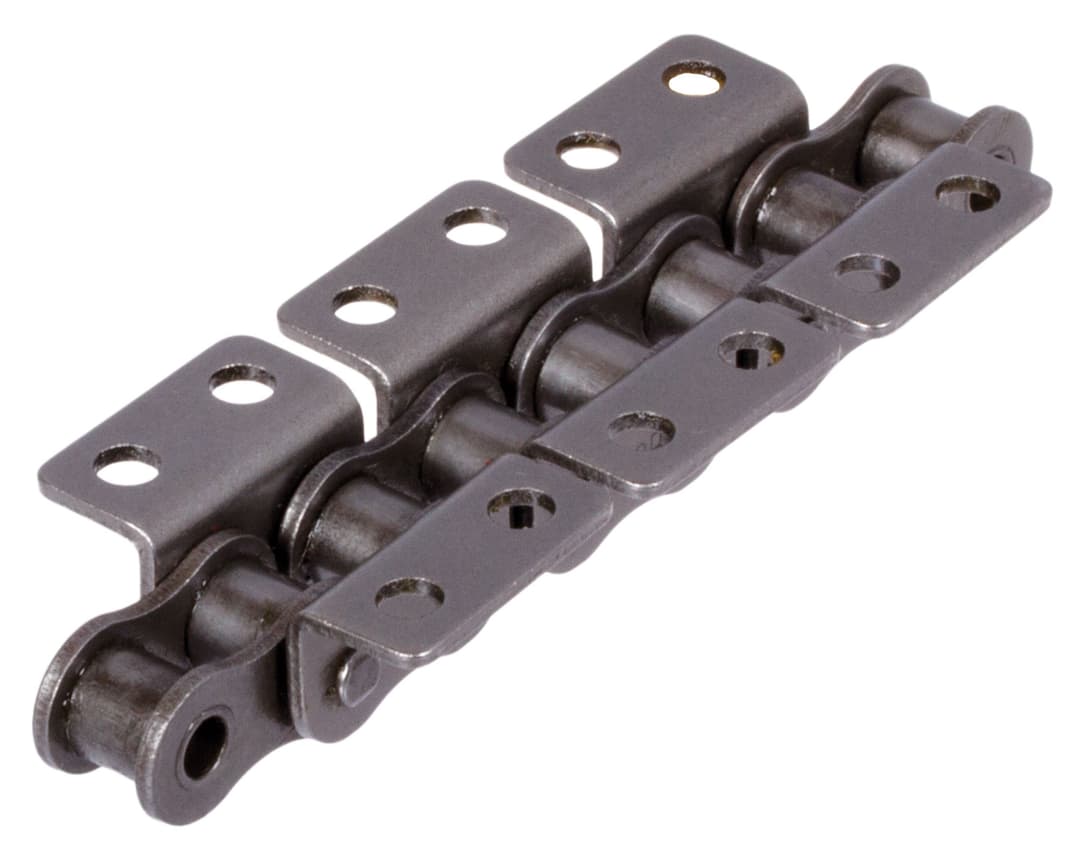

Roller chain with bent attachments 16 B-1-K2 2xp attachments wide version on both sides
Manufacturer part no. 10800022
$93.30≈ 82.00 €
Price summary
Listed by MÄDLER at €82.00. Delivered to France, including shipping, VAT and any customs duty, it comes to about €116.40. Prices last checked on 2026-09-29.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 8 unitslead time 14 d
Estimated landed cost
| Item | €82.00 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €19.40 |
| Total delivered | €116.40 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics

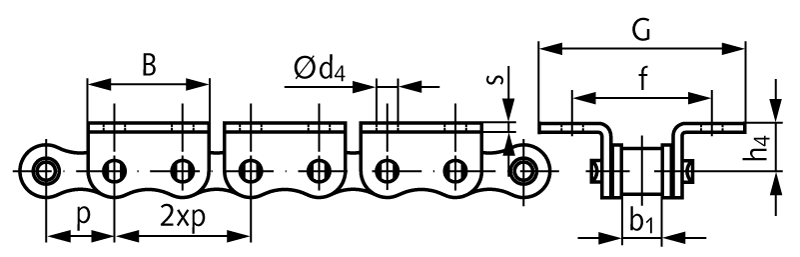

| Center distance from middle axis to hole | 25.4 mm |
| Distance from middle axis to attachments end | 36.3 mm |
| Flansch width | 46.2 mm |
| Height of pin to support surface | 15.9 mm |
| Hole diameters | 6.6 mm |
| Inner width | 17.02 mm |
| Number of strands | 1 |
| Pitch | 25.4 mm |
| Thickness of attachment | 2.8 mm |
| Din iso no | 16 B-1 |
| Material | Steel |
| Pitch x inner width inch | 1″ x 17,02 mm |
| Surface | Blank |
| Version | Both sided |
| Weight |
Description
Material: Special chain steels. According to DIN ISO 606 (ex DIN 8187). Attachment distance 2 x p (attachment at every outer link). Other attachment distances can be supplied at short notice. Different attachment sizes and special chains on request. Connecting links K2 have to be ordered separately. * The marked dimensions are not listed in the DIN. 1 Unit = 1 Meter = 39.37 Inches
