V-belt tensioner 350N profile XPZ, SPZ and Z (10) 1 groove Dw 90mm
Manufacturer part no. 14085101
$245.81≈ 213.47 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €213.47 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €45.69 |
| Total delivered | €274.16 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2 kg |
Other characteristics
| Center distance between tensioning wheel and mou | 100 mm |
| Flange diameter mounting side | 58 mm |
| Groove distance | 12 mm |
| Max tensioning area | 50 mm |
| Max tensioning force | 350 N |
| Number of grooves | 1 |
| Overhang screw head | 13 mm |
| Pulley width | 16 mm |
| Reference diameter | 90 mm |
| Tensioner | 2 |
| Total width of tensioner elements | 79 mm |
| Wrench size of tensioning axis | 19 mm |
| Center distance between tensioning element and m |
Description
Material: Housings up to Ø 78 mm made of sintered steel, over Ø 78 mm made of grey cast iron GG20, lever St52, V-belt pulley cast steel. Matching narrow V-belts DIN 2215 und DIN 7753.Pulley with sealed ball bearings, permanently lubricated. Measur A of the pulley can be adjusted by distance-washers on the axis, which is screwd onto the tensioner. Can be used for both tensioning directions.
Similar products
MÄDLERIn stock

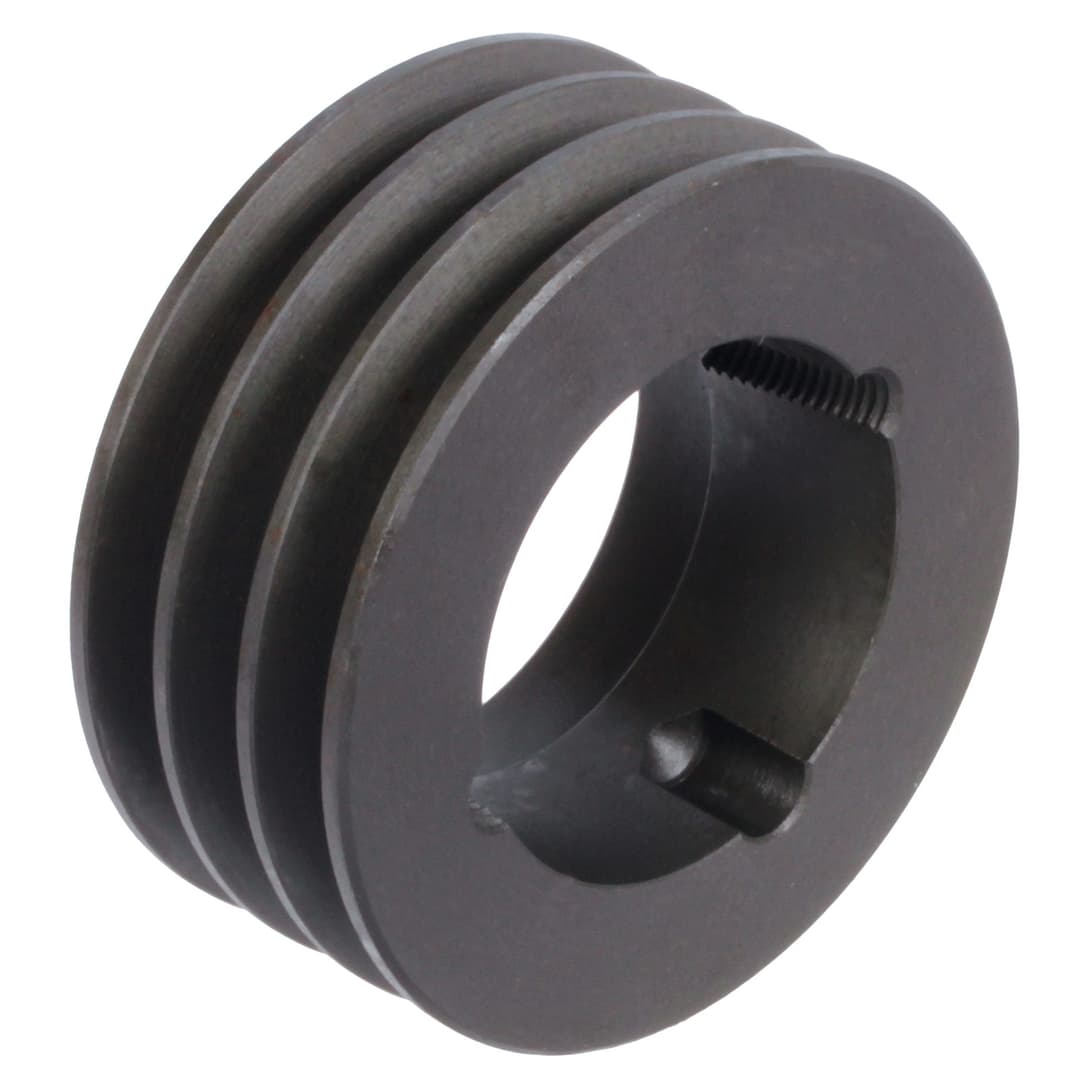

V-belt pulley material cast iron for taper-bush 3020 profile XPB, SPB and B (17) 3 grooves nominal diameter 315mm
