V-belt tensioner 350N profile XPZ, SPZ and Z (10) 2 grooves Dw 90mm
Manufacturer part no. 14085102
$252.21≈ 219.03 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €219.03 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €46.81 |
| Total delivered | €280.84 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2.3 kg |
Other characteristics
| Center distance between tensioning wheel and mou | 100 mm |
| Flange diameter mounting side | 58 mm |
| Groove distance | 12 mm |
| Max tensioning area | 50 mm |
| Max tensioning force | 350 N |
| Number of grooves | 2 |
| Overhang screw head | 13 mm |
| Pulley width | 28 mm |
| Reference diameter | 90 mm |
| Tensioner | 2 |
| Total width of tensioner elements | 79 mm |
| Wrench size of tensioning axis | 19 mm |
| Center distance between tensioning element and m |
Description

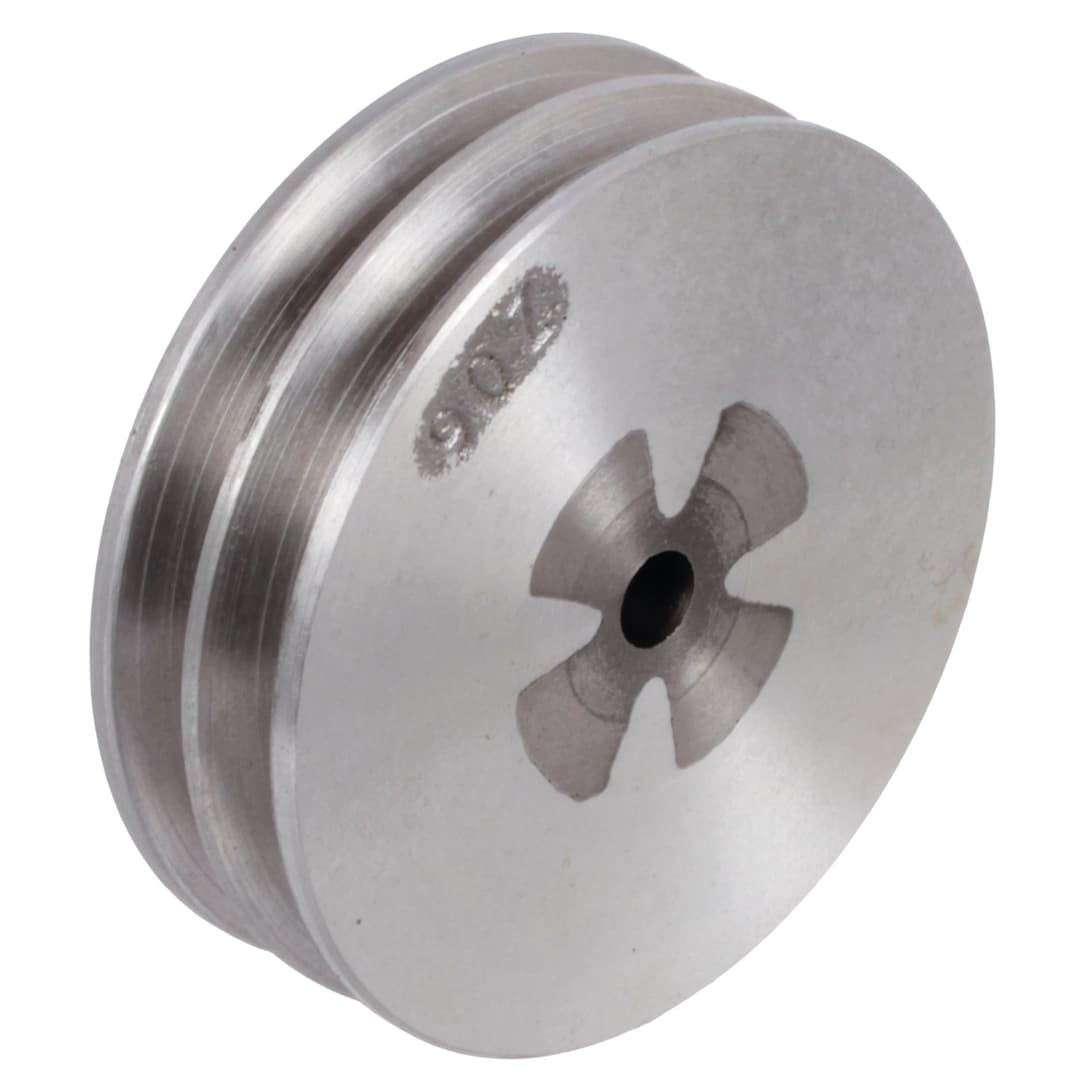

Material: Housings up to Ø 78 mm made of sintered steel, over Ø 78 mm made of grey cast iron GG20, lever St52, V-belt pulley cast steel. Matching narrow V-belts DIN 2215 und DIN 7753.Pulley with sealed ball bearings, permanently lubricated. Measur A of the pulley can be adjusted by distance-washers on the axis, which is screwd onto the tensioner. Can be used for both tensioning directions.
