MÄDLERMÄDLER· Gear Boxes and Geared Motors

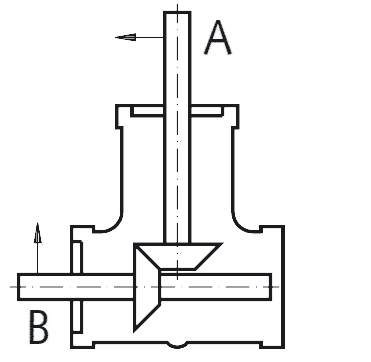

Bevel gearbox DZA, size 4, type A, i=1:1
Manufacturer part no. 41001600
$509.36≈ 442.34 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €442.34 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €91.47 |
| Total delivered | €548.81 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 611.82 kg·cm |
| Weight | 6.2 kg |
Other characteristics
| Shaftdiameter | 25 mm |
| Size | 4 |
| Ratio | 1 : 1 |
Description
General data: 4 sizes. Ratio either 1 : 1 or 2 : 1. Any mounting position possible. Input shaft / output shaft, speed: At both types and both ratios, the input can be at shaft A as well as at shaft B. At ratio 1:1 the maximum speed is 1400 rpm. Ratio 2:1 can be used for gearing down and also for gearing up. Gearing down: Input at shaft A with max. speed 1400 rpm (output speed max. 700 rpm). Gearing up: Input at shaft B with max. speed 750 rpm (output speed max. 1500 rpm). Housing: Thick-walled, one-piece cast aluminium housing, fully oil-tight and dust-proof. Gearing: Spiral teeth, hardened. Shafts/bearing system: Input and output shaft are ground and mounted on ball bearings. From size 2 with keyways.Lubrication/maintenance: Lubricated for life, viscosity ISO VG 150. Gearboxes are maintenance free. Angular backlash: 15 to 30 angular minutes. Permiss. operating temperature: -18°C to +80°C. * Permiss. radial force for FA=0. ** Permiss. axial force for FR=0.
