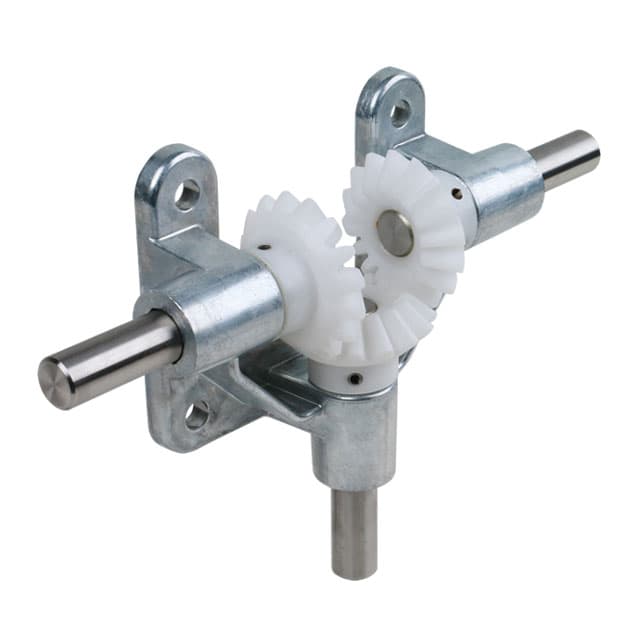

Open angular drive OW3 with polyacetal bevel gears stainless steel shafts Ø 15mm module 3 16 teeth 1:1 version 20
Manufacturer part no. 41035730
$98.18≈ 85.26 €
Price summary
Listed by MÄDLER at €85.26. Delivered to France, including shipping, VAT and any customs duty, it comes to about €120.31. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €85.26 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €20.05 |
| Total delivered | €120.31 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.185 kg |

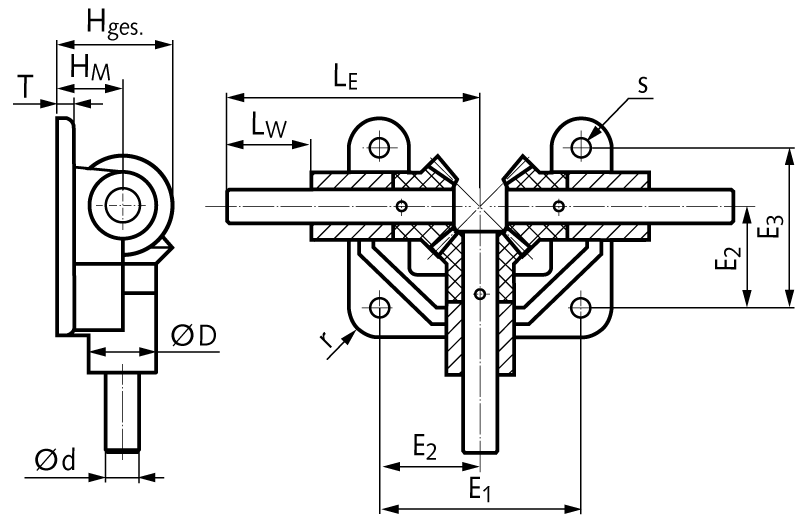

Other characteristics
| D | 30 mm |
| E1 | 95 mm |
| E2 | 47.5 mm |
| E3 | 75 mm |
| Hges | 56.2 mm |
| Hm | 30 mm |
| Le | 120 mm |
| Lw | 40 mm |
| Max md | 250 Ncm |
| Module | 3 |
| R | 15 mm |
| S | 9 mm |
| T | 8 mm |
| D h9 | 15 h6 |
Description
Material: Housing from zinc die-cast ZnAI4Cu1. Shafts made from stainless steel 1.4301 (AISI 304), dismountable. Bevel gears from polyacetal resin, injection-moulded. • Open angular gear drive, ratio 1:1. • Suitable for lower torques and intermittend use. • Shafts running directly in the self-lubricating housing material. • Easy to mount and maintenance-free. • Number of teeth: 16/16. • Shaft angle: 90º. • Temperature range: – 20°C to +100º C. Three shafts with three bevel gears. Two shafts are in line and have an opposite sense of rotation. The shaft for the power input and it´s sense of rotation be chosen freely.
