MÄDLERMÄDLER· Motor control
Motorcontroller SFRG 06 for DC-drives with brushes and brushless
Manufacturer part no. 43046006
$313.37≈ 271.50 €
Price summary
Listed by MÄDLER at €271.50. Delivered to France, including shipping, VAT and any customs duty, it comes to about €343.80. Prices last checked on 2026-08-07.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €271.50 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €57.30 |
| Total delivered | €343.80 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 25 g |
Other characteristics
| Height | 26,5 (16) +/-0,5 |
| Length | 49 +/-0,5 |
| Width | 42,5 +/-0,5 |
Description

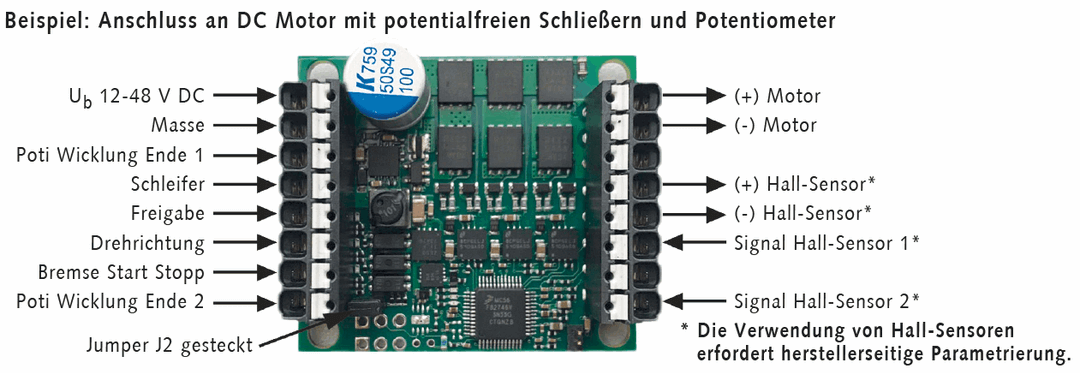

• Intelligent motor controller with PWM output for speed setting or controlling of brushed DC motors or brushless BLDC motors. • Self-detection, if a brushed motor or a brushless motor is connected. • Supply voltage: 12 – 48 V DC. • Motor current: 2,5 A continuous load uncooled (peak 5 A). • Speed setting device or PI-controller operation (if needed, the controller operation can be parameterised by the manufacturer). • Input signals: Possible with closed contact or voltage 10 – 24 V DC (may come from SPS). • Setpoint setting possible via external pot (not included) or voltage signal 0-10 V DC (analog to input signals. • Compact version thanks to SMD technology. Also available als CANopen-Bus version (customized product with extended hardware).
