MÄDLERMÄDLER· Motor control
Motorcontroller SFRG 3 for DC-drives with brushes incl. device support
Manufacturer part no. 43046030
$702.85≈ 608.95 €
Price summary
Listed by MÄDLER at €608.95. Delivered to France, including shipping, VAT and any customs duty, it comes to about €748.74. Prices last checked on 2026-08-07.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €608.95 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €124.79 |
| Total delivered | €748.74 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

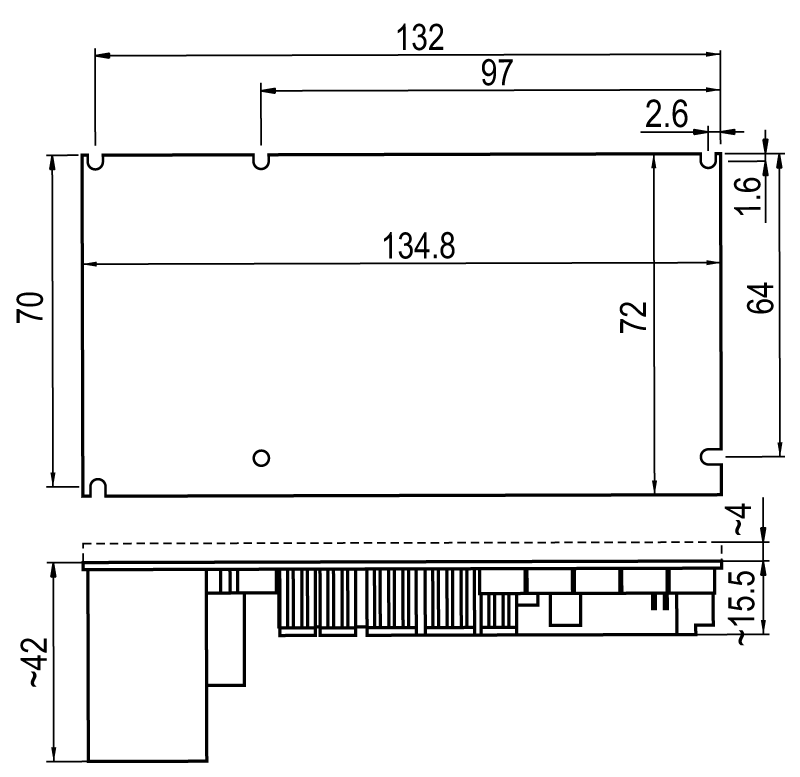

Specifications (automatically extracted)
Mechanical
| Weight | 120 g |
Other characteristics
| Height | 42 mm |
| Length | 135 mm |
| Width | 74.5 mm |
Description
• Intelligent motor controller with PWM output for speed setting or controlling (option) of brushed DC motors. • Supply voltages: 10 – 36 V DC or 10 – 24 V AC. • Motor current up to 10 A continuous load. • Usable for CANopen. • 5 potential-free switching inputs or 5 voltage input signals 10 – 24 V (switchable per jumpers), 5 setting potentiometers. • 2 counting inputs for hall sensors or encoder. • 2 switching outputs, max. 1.5 A. • 2 zero-voltage relays with changeover contacts. • Output 12V DC max. 0,4 A, e.eg. to supply stop switches. • Ramp function for start / stop. • Motor current monitoring. • pre-programmed functions: Left, right, stop, release. Delivery with device support: Plastic carrier for easy mounting of the motor controller on a rail EN 60715 width 35 mm or at a housing wall. Total heigth of SFRG 3 with carrier, on a DIN rail with height 7.5 mm: 76 mm. Total heigth of SFRG 3 with carrier, at a wall: 60 mm. This carrier is included in delivery of the motor controller.
