MÄDLERMÄDLER· Motor control
Motorcontroller MAE-MR-5-30 for DC-drives 24V with brushes manual only as pdf file at www.maedler.de
Manufacturer part no. 43046041
$216.90≈ 187.92 €
Price summary
Listed by MÄDLER at €187.92. Delivered to France, including shipping, VAT and any customs duty, it comes to about €243.50. Prices last checked on 2026-08-07.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €187.92 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €40.58 |
| Total delivered | €243.50 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 24 V |
Mechanical
| Weight | 72 g |
Other characteristics
| Height | 85 mm |
| Length | 70.4 mm |
| Width | 17.5 mm |
| Type | MAE-MR-5-30 |
Description

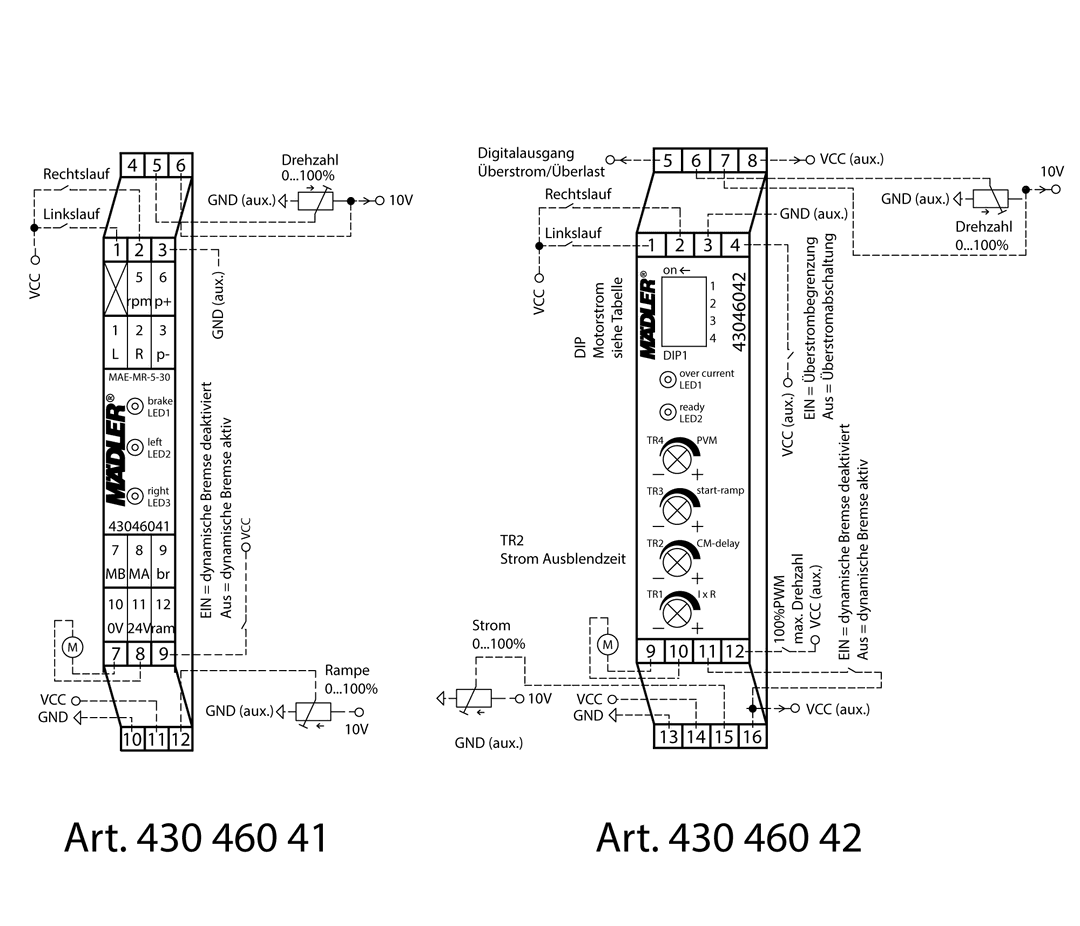

For controlling of brushed DC motors, to snap onto the DIN Rail EN 50022. Supply voltage: 18 – 30 V DC. Motor current: 5 A continuous load (15 A peak current). Speed control (external). Reversal of direction of rotation. Adjustable start ramp (external). Overload shut-down, short circuit detection. Dynamic brake. Additional, only at product 430 460 42: Overcurrent limitation (extern) / overcurrent shutdown. Adjustable current monitoring delay. IxR compensation. Speed switching from the set speed to 100% speed. Operation manual only as PDF-file.
