Swivel feet set including screws for worm gear screw jack NPT and NPK size 4 bearing inner Ø 35mm
Manufacturer part no. 47500414
$632.88≈ 547.76 €
Price summary
Listed by MÄDLER at €547.76. Delivered to France, including shipping, VAT and any customs duty, it comes to about €675.31. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €547.76 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €112.55 |
| Total delivered | €675.31 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.3 kg |

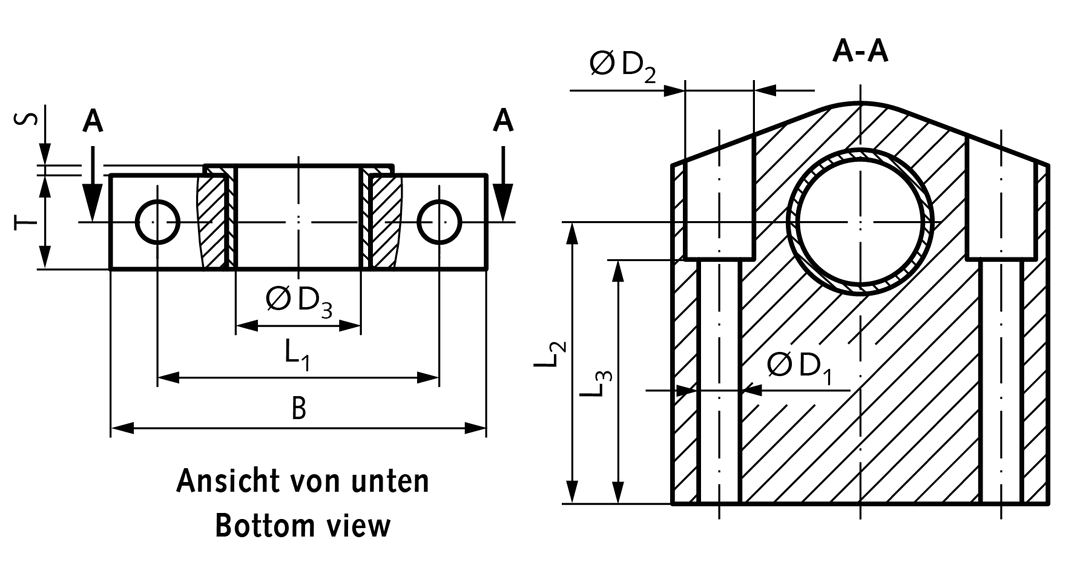

Other characteristics
| B | 100 mm |
| D1 h13 | 13.5 mm |
| D2 h13 | 20 mm |
| D3 h7 | 35 mm |
| L1 | 75 mm |
| L2 | 65 mm |
| L3 | 50 mm |
| L4 | 174 mm |
| S | 2 mm |
| Size | 4 |
| T | 25 mm |
Description
Material: Steel C45, zinc-plated. Swivel foot set (pair) for mounting the swivel plate. The centre distance of both swivel feet is dimension L4 when assembled.
