MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

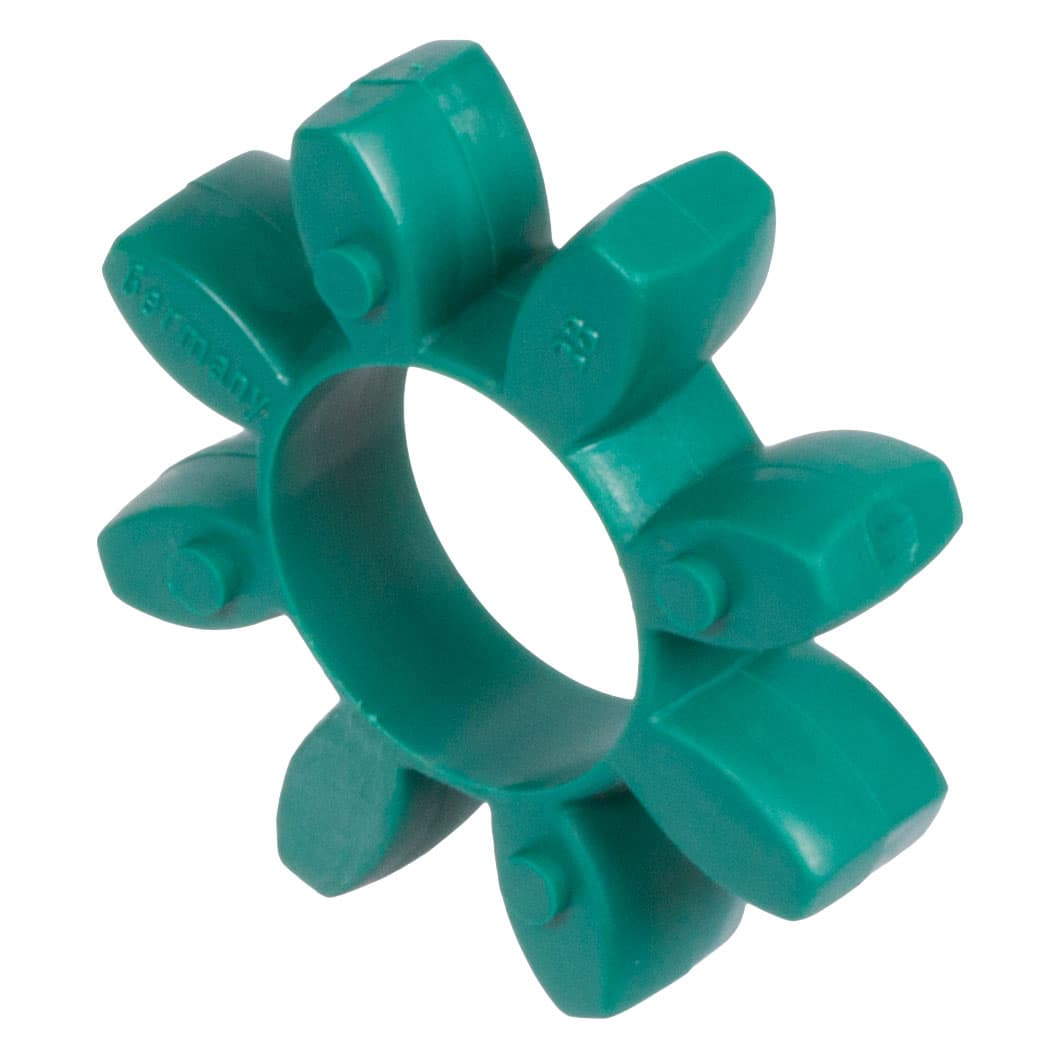

Spider (Coupling insert) standard 64 Shore D green size 24 outside diameter 55mm
Manufacturer part no. 60506424
$17.52≈ 15.21 €
In stock — 7 unitslead time 14 d
Estimated landed cost
| Item | €15.21 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.04 |
| Total delivered | €36.25 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 22 g |
Other characteristics
| Max alternating torque | 19.5 Nm |
| Max torque | 150 Nm |
| No of teeth | 8 |
| Nominal torque | 75 Nm |
| Outer diameter | 55 mm |
| Size | 24 |
| Torsional angle at max torque | 3.6 ° |
| Torsional angle at nominal torque | 2.5 ° |
| Material | Polyurethane (hard) |
| Surface | Blank |
Description
Material: Polyurethane, shore hardness 64° D (hard), green. Spiders (plastic inserts) for elastic couplings (jaw couplings) like RN, RNG, RNI, RNR and foreign parts of the same kind from other suppliers. Hard type, for very high torques at small torsion angle. Temperature range -20°C to +100°C.
