MÄDLERMÄDLER· Mechanics & transmission
Manufacturer part no. 60530100
Listed by MÄDLER at €32.38. Delivered to France, including shipping, VAT and any customs duty, it comes to about €56.86. Prices last checked on 2026-10-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €32.38 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.48 |
| Total delivered | €56.86 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

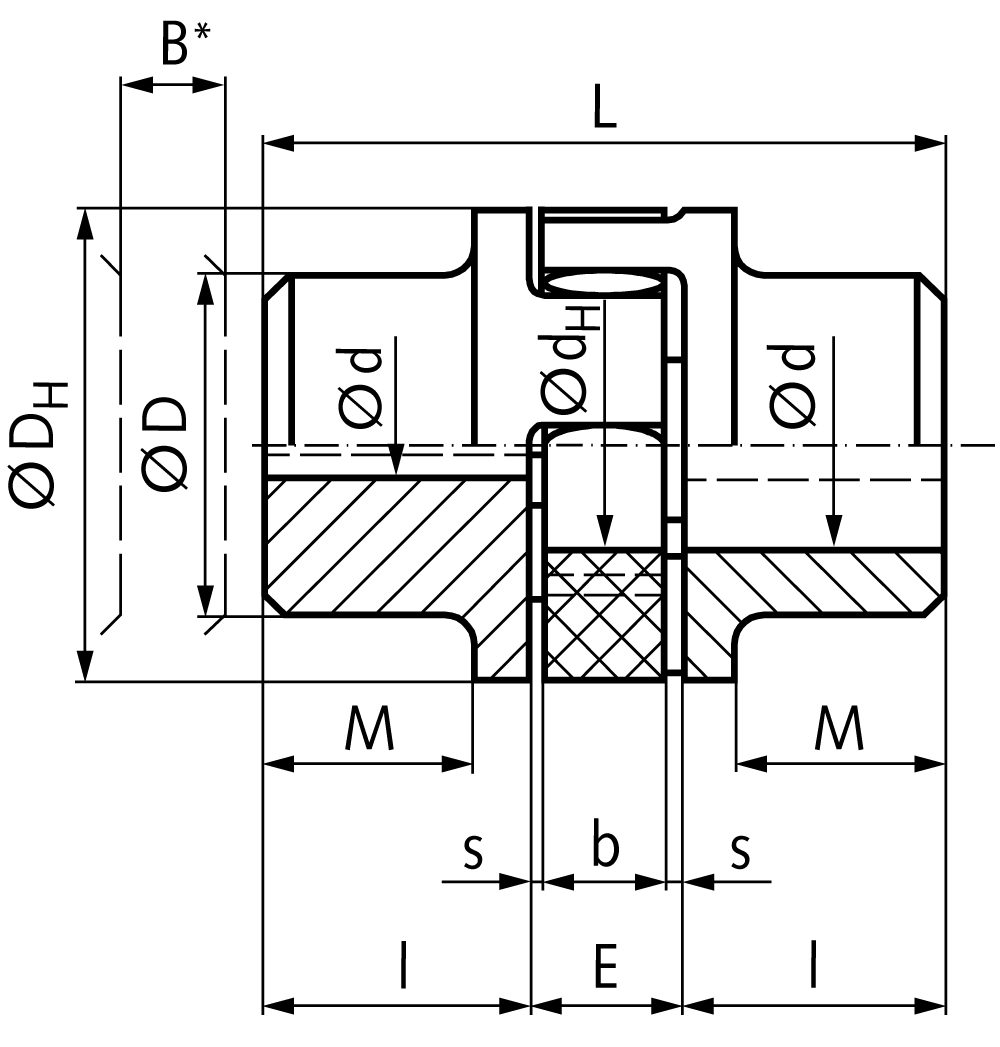

| Torque | 713.79 kg·cm |
| Weight | 730 g |
| Bore length | 30 mm |
| Bore pilot hole | 7 mm |
| Distance between hub and spider | 2 mm |
| Distance between the hubs | 18 mm |
| Hub diameter | 40 mm |
| Hub length up to flange | 24 mm |
| Inner diameter spider | 27 mm |
| Max bore | 24 mm |
| Max misalignment angle | 0.9 ° |
| Max misalignment axial | 1.4 mm |
| Max misalignment radial | 0.22 mm |
| Max torque | 70 Nm |
Material: Coupling hubs: Grey Cast Iron GG25 (GJL-250). Spider (insert): Polyurethane, Shore hardness 92ºA (yellow). Spare part spiders available in 92°A (yellow), 98°A (red) or 64°D (green). Couplings are pre-bored ex stock. Customized bores and feather-key grooves available at extra charge. Temperature range: -40ºC to +90ºC.
Semantically close products available for less — check the specs match your need.
| Min distance for dismantling |
| 15 mm |
| Nominal torque | 35 Nm |
| Outer diameter | 55 mm |
| Replacement spider 92 shore part no | 60 509 224 |
| Replacement spider 98 shore part no | 60 509 824 |
| Size | 24 |
| Spider width | 14 mm |
| Temperature max. | 90 °C |
| Temperature min. | -40 °C |
| Torsional angle at max nm | 5 |
| Total lenght | 78 mm |
| Coupling type | Elastic. angular/transv./long flexible |
| Electrically insulating | No |
| Material | Grey cast iron/Polyurethane |
| Max speed at 30 m s | 10600 min-1 |
| Stainless | No |
| Surface | Blank |
| With keyway | No |
